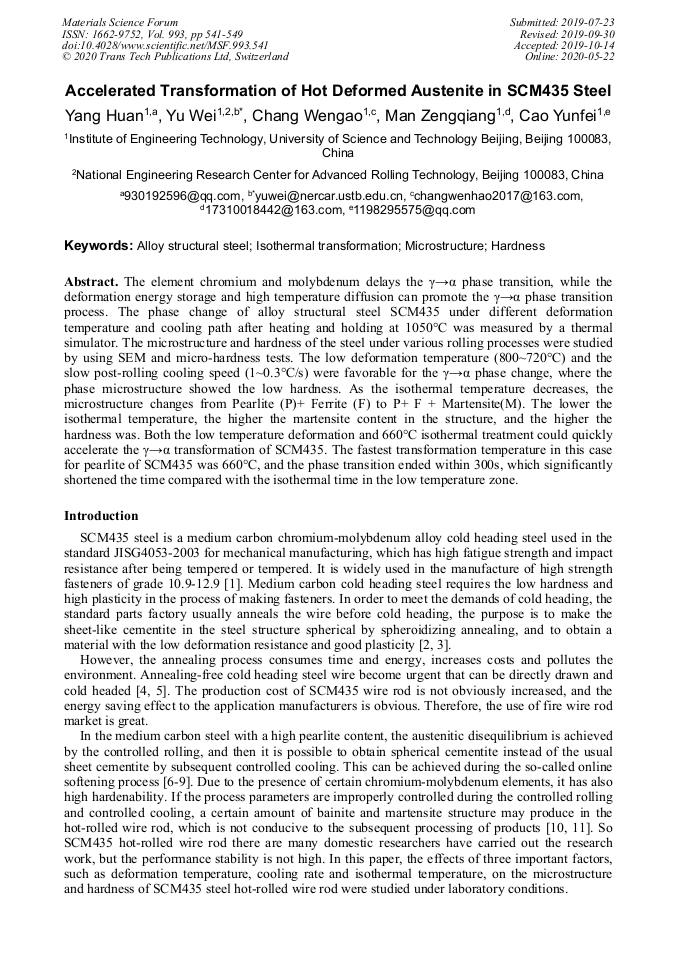

Accelerated Transformation of Hot Deformed Austenite in SCM435 Steel

Abstract:

The element chromium and molybdenum delays the γ→α phase transition, while the deformation energy storage and high temperature diffusion can promote the γ→α phase transition process. The phase change of alloy structural steel SCM435 under different deformation temperature and cooling path after heating and holding at 1050°C was measured by a thermal simulator. The microstructure and hardness of the steel under various rolling processes were studied by using SEM and micro-hardness tests. The low deformation temperature (800~720°C) and the slow post-rolling cooling speed (1~0.3°C/s) were favorable for the γ→α phase change, where the phase microstructure showed the low hardness. As the isothermal temperature decreases, the microstructure changes from Pearlite (P)+ Ferrite (F) to P+ F + Martensite(M). The lower the isothermal temperature, the higher the martensite content in the structure, and the higher the hardness was. Both the low temperature deformation and 660°C isothermal treatment could quickly accelerate the γ→α transformation of SCM435. The fastest transformation temperature in this case for pearlite of SCM435 was 660°C, and the phase transition ended within 300s, which significantly shortened the time compared with the isothermal time in the low temperature zone.

• Periodical: Materials Science Forum (Volume 993)
• Pages: 541-549
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.993.541
• Online since: May 2020
• Authors: Huan Yang, Wei Yu*, Wen Gao Chang, Zeng Qiang Man, Yun Fei Cao
• Keywords: Alloy Structural Steel, Hardness, Isothermal Transformation, Microstructure

References

[1] R. Shipeng, W. Lijun, C. Jilin, G. Mingyi, Z. Jinpo, Effect of control-rolling-cooling process on structure and properties of steel SCM435 rod coil, J Special Steel 37 (2016) 45-47.

[2] J. M. O Brien, W. F. Hosford, Spheroidization cycles for medium carbon steels, J Metallurgical and Materials Transactions A 33 (2002) 1255-1261.

DOI: 10.1007/s11661-002-0226-y

[3] Q. Musheng, K. Shuang, T. Huaxiang, J. Cheng, Effect of spheroidizing annealing on microstructure and mechanical properties of SCM435 Steel, J Hot Working Technology 48 (2019) 234-239.

[4] W. Kaizhong, S. Wei, Y. Tongren, Research and production of high strength cold heading steel SCM435 wire coil with short-time annealing, J Special Steel (2006) 63-64.

[5] T. Xinzhong, Effect of deformation temperature and cooling way on the microstructure and drawing property of medium carbon steel, J Hebei Metallurgy (2017) 1-7.

[6] T. Ya, Z. Le-yu, D. Jie, Z. Xiao-min, L. Gang, T. Xiao-dong, Effect of process parameters on microstructure and mechanical properties of non-annealed cold heading steel SWRCH35KM, J Journal of Iron and Steel Research 30 (2018) 581-584.

[7] P. Zhao, J. D. Boyd, Microstructural evolution during thermomechanical processing of microalloyed medium carbon steels, J Mater.sci.technol 19 (2003) 1557-1563.

DOI: 10.1179/026708303225008149

[8] J. Arruabarrena, B. López, J. M. Rodriguez-Ibabe, Influence of DIT parameters on the cementite spheroidization in a low-alloy medium carbon steel, J Metallurgical and Materials Transactions A 47 (2016) 412-423.

DOI: 10.1007/s11661-015-3207-7

[9] Y. Fu, H. Yu, P. Tao, On-line spheroidization process of medium-carbon low-alloyed cold heading steel, J International Journal of Minerals, Metallurgy, and Materials 21 (2014) 26-35.

DOI: 10.1007/s12613-014-0861-5

[10] H. Xiaosan, Y. Tongren, L. Wanlun, Study of thermo-mechanical process of high strength cold heading steel by therom-mechanical simulation tests, J Iron and Steel (2003) 49-52.

[11] K. Lingbo, D. Qing, D. Yang, Effect of controlled rolling and cooling process on microstructure and mechanical properties of SCM435 steel hot rolled wire rod, J Hot Working Technology 46 (2017) 155-156.
