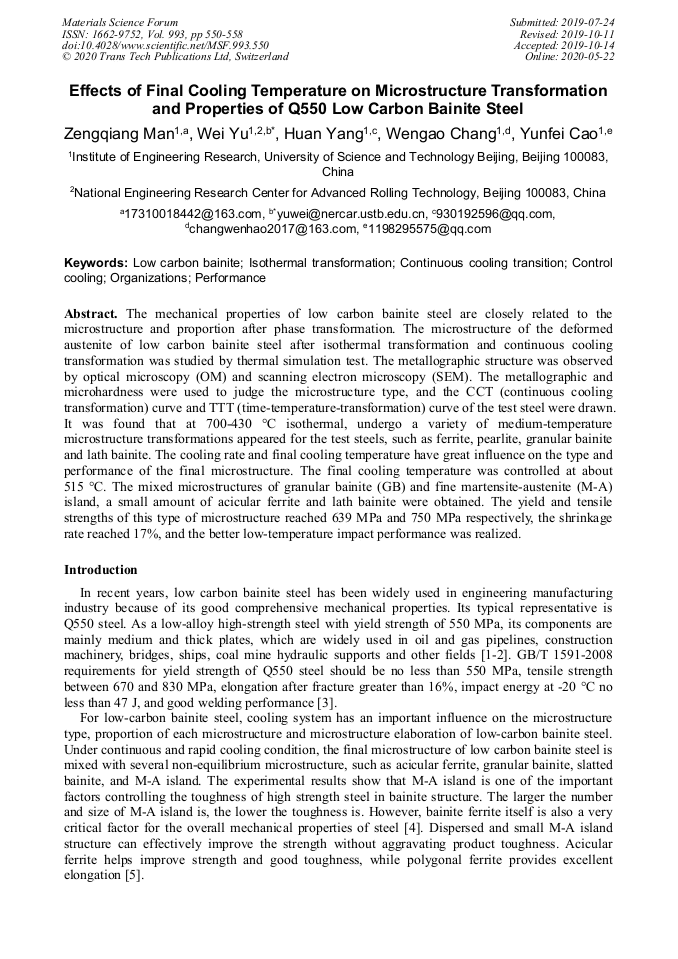

Effects of Final Cooling Temperature on Microstructure Transformation and Properties of Q550 Low Carbon Bainite Steel

Abstract:

The mechanical properties of low carbon bainite steel are closely related to the microstructure and proportion after phase transformation. The microstructure of the deformed austenite of low carbon bainite steel after isothermal transformation and continuous cooling transformation was studied by thermal simulation test. The metallographic structure was observed by optical microscopy (OM) and scanning electron microscopy (SEM). The metallographic and microhardness were used to judge the microstructure type, and the CCT (continuous cooling transformation) curve and TTT (time-temperature-transformation) curve of the test steel were drawn. It was found that at 700-430 °C isothermal, undergo a variety of medium-temperature microstructure transformations appeared for the test steels, such as ferrite, pearlite, granular bainite and lath bainite. The cooling rate and final cooling temperature have great influence on the type and performance of the final microstructure. The final cooling temperature was controlled at about 515°C. The mixed microstructures of granular bainite (GB) and fine martensite-austenite (M-A) island, a small amount of acicular ferrite and lath bainite were obtained. The yield and tensile strengths of this type of microstructure reached 639 MPa and 750 MPa respectively, the shrinkage rate reached 17%, and the better low-temperature impact performance was realized.

• Periodical: Materials Science Forum (Volume 993)
• Pages: 550-558
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.993.550
• Online since: May 2020
• Authors: Zeng Qiang Man, Wei Yu*, Huan Yang, Wen Gao Chang, Yun Fei Cao
• Keywords: Continuous Cooling Transition, Control Cooling, Isothermal Transformation, Low Carbon Bainite, Organizations, Performance

References

[1] Z. Cao, Y. Bao, Z. Xia, D. Luo, A. Guo, K. Wu, Toughening mechanisms of a high-strength acicular ferrite steel heavy plate, J. International Journal of Minerals, Metallurgy, and Materials 17 (2010) 567-572.

DOI: 10.1007/s12613-010-0358-9

[2] P. E. V. S. Rodrigues P C M, Mechanical properties of an HSLA bainitic steel subjected to controlled rolling with accelerated cooling, J. Materials Science and Engineering A283 (2000) 136-143.

DOI: 10.1016/s0921-5093(99)00795-9

[3] ZHAO Xian-peng, GUO Huai-bing, LIU Ji-hong, GUO Wei, Cause Analysis of Unstable Impact Property of Q550D High Strenth Steel, J. Steel Rolling 27 (2010) 18-19.

[4] C. Oberbillig, M. Huang, O. Bouaziz, K. Zhu, An approach to define the effective lath size controlling yield strength of bainite, J. Materials Science & Engineering, A. Structural Materials: Properties, Misrostructure and Processing 527 (2010) 6614-6619.

DOI: 10.1016/j.msea.2010.06.061

[5] H. J. Du Lin-Xiu Jian-Jun Wang Hui Xie Cai-Ru Gao R D K Misra, Structure–mechanical property relationship in low carbon microalloyed steel plate processed using controlled rolling and two-stage continuous cooling, J. Materials Science & Engineering A (2013) 197-204.

DOI: 10.1016/j.msea.2013.07.071

[6] J. Hu, L. Du, H. Xie, F. Dong, R. D. K. Misra, Effect of weld peak temperature on the microstructure, hardness, and transformation kinetics of simulated heat affected zone of hot rolled ultra-low carbon high strength Ti-Mo ferritic steel, J. Materials and Design 60 (2014) 302-309.

DOI: 10.1016/j.matdes.2014.04.003

[7] Z. X. Li, C. S. Li, B. Z. Li, Y. Q. Ma, T. Li, Effects of cooling process on microstructure and hardness for 1.0C-1.5Cr bearing steel, J. Materials Science and Technology: MST: A publication of the Institute of Metals 31 (2015) 722-729.

DOI: 10.1179/1743284714y.0000000657

[8] Z. Li, C. Li, Microstructure of Hot Rolled 1.0C-1.5Cr Bearing Steel and Subsequent Spheroidization Annealing, J. Metallurgical and Materials Transactions A 47 (2016) 3607-3621.

DOI: 10.1007/s11661-016-3425-7

[9] H. F. Lan, L. X. Du, X. H. Liu, Microstructure and mechanical properties of a low carbon bainitic steel, J. Steel Research International 84 (2013) 352-361.

DOI: 10.1002/srin.201200186

[10] Y. X. Tian, B. Wang, J. L. Li, B. L. Chen, Q. Feng, Microstructure and properties of X100 high strength pipeline steel, in: vol 814, Trans Tech Publications Ltd, Chengdu, China, 2015, pp.325-332.

DOI: 10.4028/www.scientific.net/msf.814.325

[11] L. Lan, X. Kong, C. Qiu, Characterization of coarse bainite transformation in low carbon steel during simulated welding thermal cycles, J. Materials Characterization 105 (2015) 95-103.

DOI: 10.1016/j.matchar.2015.05.010

[12] YU Qingbo, SUN Ying, NI Hongxin, ZHANG Kaifeng, Effect of Different Bainitic Microstructures on the Mechanical Properties of Low-carbon Steel, J. Journal of Mechanical Engineering 45 (2009) 284-288.

DOI: 10.3901/jme.2009.12.284

[13] YANG Shanwu, SHANG Chengjia, WANG Xuemin, HE Xinlai, Abnormally turning of fine lath-like microstructures in low carbon microalloyed steel during mono-axis tension, J. Acta Metallrugica Sinica 39 (2003) 579-584.

[14] J. Zhang, C. Li, Effect of Final Cooling Temperature on Microstructure and Mechanical Properties of a Cr-Ni-Mo-V Bainite Steel, J. Journal of Materials Engineering and Performance 27 (2018) 4749-4759.

DOI: 10.1007/s11665-018-3288-8
