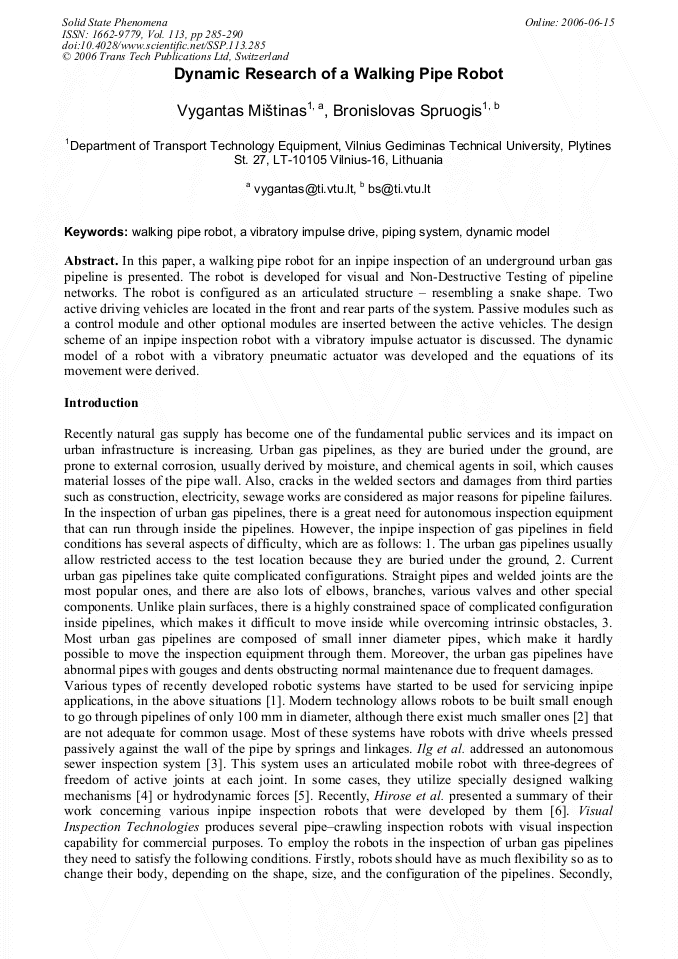

Dynamic Research of a Walking Pipe Robot

Abstract:

In this paper, a walking pipe robot for an inpipe inspection of an underground urban gas pipeline is presented. The robot is developed for visual and Non-Destructive Testing of pipeline networks. The robot is configured as an articulated structure – resembling a snake shape. Two active driving vehicles are located in the front and rear parts of the system. Passive modules such as a control module and other optional modules are inserted between the active vehicles. The design scheme of an inpipe inspection robot with a vibratory impulse actuator is discussed. The dynamic model of a robot with a vibratory pneumatic actuator was developed and the equations of its movement were derived.

• Periodical: Solid State Phenomena (Volume 113)
• Pages: 285-290
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.113.285
• Online since: June 2006
• Authors: Vygantas Mištinas, Bronislovas Spruogis
• Keywords: A Vibratory Impulse Drive, Dynamic Modeling, Piping System, Walking Pipe Robot

References

[1] J. J. Okamoto, J. C. Adamowski, S. G. Tsuzuki, F. Buiochi and S. C. Camerini: Autonomous system for oil pipelines inspection (Mechatronics 1999), pp.731-43.

DOI: 10.1016/s0957-4158(99)00031-8

[2] K. Suzumori, K. Hori and T. Miyagawa: A direct-drive pneumatic stepping motor for robots: designs for pipe-inspection microrobots and for human-care robots. (Conference Proceedings IEEE International Conference on Robotics and Automation, 1999), pp.3047-52.

DOI: 10.1109/robot.1998.680893

[3] W. Ilg, K. Berns, S. Cordes, M. Eberl and R. Dillmann: A wheeled multijoint robot for autonomous sewer inspection (Conference Proceedings IEEE International Conference on Intelligent Robots and Systems, 1997), pp.1687-92.

DOI: 10.1109/iros.1997.656584

[4] W. Neubauer: A spider-like robot that climbs vertically in ducts or pipes (Conference Proceedings IEEE International Conference on Intelligent Robots and Systems, 1994), pp.1178-85.

DOI: 10.1109/iros.1994.407465

[5] J. Moraleda, A. Ollero A M. Orte: A robotic system for internal inspection of water pipelines (IEEE Robotics Autom. Mag. 6 (3), 1999), pp.30-41.

DOI: 10.1109/100.793698

[6] S. Hirose, H. Ohno, T. Mitsui and K. Suyama: Design of in-pipe inspection Vehicles for Ј25; Ј50; Ј150 pipes (Conference Proceedings IEEE International Conference on Robotics and Automation, 1999), pp.2309-14.

DOI: 10.1109/robot.1999.770450

[7] G. Kulvietis, A. Matuliauskas, M. Mištinas, B. Spruogis and K. Ragulskis: Dynamic Parameter Investigation of Pipe robots (Proceedings of the 2 nd International Anniversary Conference VIBROENGINEERING-2001, 21 September 2001. Journal of Vibroengineering No 2 (7), Vilnius, Lithuania, 2001), pp.55-58.

DOI: 10.5755/j02.mech.29342

[8] B. Spruogis, K. Ragulskis, M. Bogdevičius, M. Ragulskis, A. Matuliauskas and V. Mištinas: In pipeline walking robot (Patent of Lithuania LT4968B Vilnius, 2000), (in Lithuanian).

DOI: 10.5755/j02.mech.30467
