For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Microstructure and Magnetic Properties of Nd4.5Fe(76.5-x)B18.5Cu0.5Zrx Nanocomposite Permanent Magnetic Alloys
p.1277
Characteristics of Nanoparticles in the Salt Solution and in Its Brush Electroplated Composite Coating
p.1281
Performance Investigation of a Micropositioning Table
p.1285
Characterization of Nano-Porous Silica-Zirconia Aerogels
p.1289
Preparation and Hydrogen Storage Properties of Mg-20 wt.% Mg2Ni0.8Cr0.2 Composite with TiO2 Nanoparticles
p.1293
Preparation and Photoelectrochemical Properties of SrTiO3 Thin Films on Nickel Substrate by Hydrothermal Method
p.1297
Preparation of Hydrophilic Polymer Film by Using γ-Irradiation Method
p.1301
Preparation of PbS Nanocrystals Using Novel Synthesized Ester as the Ligand
p.1305
Preparation Parameters Optimization of Noncrystalline MoS3 - the Precursor of Nano-MoS2
p.1309

Preparation and Hydrogen Storage Properties of Mg-20 wt.% Mg2Ni0.8Cr0.2 Composite with TiO2 Nanoparticles

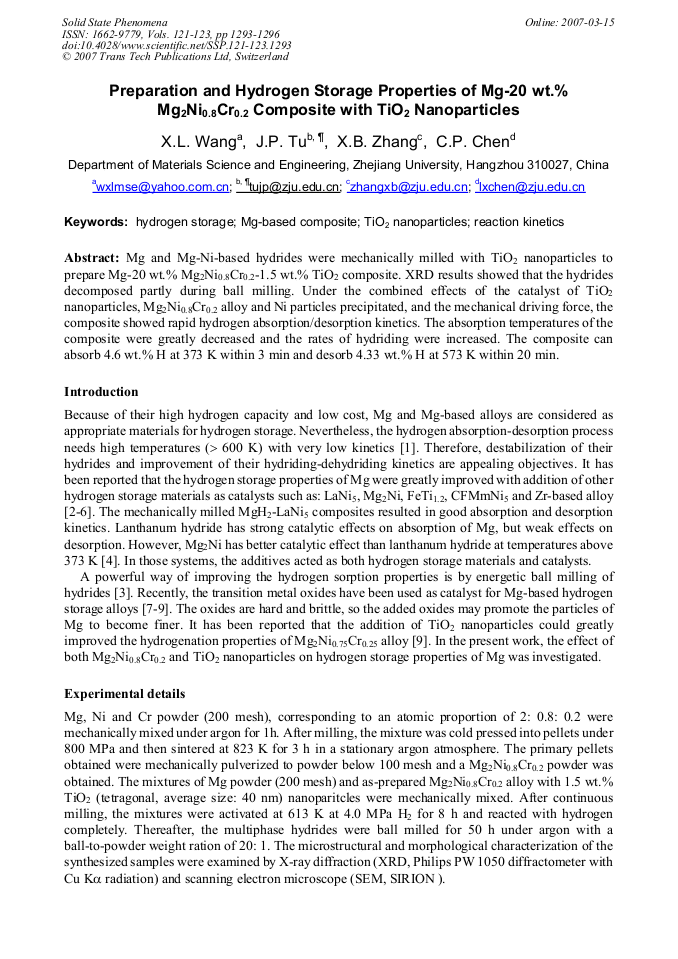

Article Preview

Abstract:

Mg and Mg-Ni-based hydrides were mechanically milled with TiO2 nanoparticles to prepare Mg-20 wt.% Mg2Ni0.8Cr0.2-1.5 wt.% TiO2 composite. XRD results showed that the hydrides decomposed partly during ball milling. Under the combined effects of the catalyst of TiO2 nanoparticles, Mg2Ni0.8Cr0.2 alloy and Ni particles precipitated, and the mechanical driving force, the composite showed rapid hydrogen absorption/desorption kinetics. The absorption temperatures of the composite were greatly decreased and the rates of hydriding were increased. The composite can absorb 4.6 wt.% H at 373 K within 3 min and desorb 4.33 wt.% H at 573 K within 20 min.

You might also be interested in these eBooks
Nanoscience and Technology View Preview

Info:

Periodical:

Solid State Phenomena (Volumes 121-123)

Pages:

1293-1296

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.121-123.1293

Citation:

Cite this paper

Online since:

March 2007

Authors:

X.L. Wang, Jiang Ping Tu, X.B. Zhang, C.P. Chen

Keywords:

Hydrogen Storage, Mg-Based Composite, Reaction Kinetics, TiO2 Nanoparticle

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2007 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] J J Reilly, R H Wiswall. Inorg. Chem. Vol. 7 (1968), p.254.

Google Scholar

[2] S S Sai Raman, O N Srivastava, J. Alloys Comp. Vol. 241 (1999), p.167.

Google Scholar

[3] G Liang, J Huot, S Boily, A Van Neste, R Schulz, J. Alloys Comp. Vol. 297(2000), p.261.

Google Scholar

[4] P Wang, A M Wang, B Z Ding, Z Q Hu, J. Alloys Comp. Vol. 334 (2002), p.243.

Google Scholar

[5] H Y Leng, D M Chen, M Q Lu, H F Zhang, H M Cheng, K Yang, J. Alloys Comp. Vol. 361(2003), p.276.

Google Scholar

[6] M Zhu, W H Zhu, Y Gao, X Z Che, J H Ahn, Mater. Sci. Eng. Vol. A286 (2000), p.130.

Google Scholar

[7] W Oelerich, T Klassen, R Bormann, J. Alloys Comp. Vol. 315 (2001), p.237.

Google Scholar

[8] P Wang, A M Wang, H F Zhang, B Z Ding, Z Q Hu, J. Alloys Comp. Vol. 313 (2000), p.218.

Google Scholar

[9] R G Gao., J P Tu, X L Wang, X B Zhang, C P Chen, J. Alloys Comp. Vol. 356-357 (2003), p.649.

Google Scholar

[10] B Bogdanović, K Bohmhammel, B Christ, A Reiser, K Schlichte, R Vehlen, U Wolf, J. Alloys. Comp. Vol. 282 (1999), p.84.

DOI: 10.1016/s0925-8388(98)00829-9

Google Scholar

[11] A Zaluska, L Zaluski, J O StrÖm-Olsen, Appl. Phys. Vol. A 72 (2001), p.157.

Google Scholar

[12] N Cui, P He, J L Luo, Electrochimica Acta Vol. 44 (1999), p.3549.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
