Preparation and Photoelectrochemical Properties of SrTiO3 Thin Films on Nickel Substrate by Hydrothermal Method

G.T. Wang; J.P. Tu; W.K. Zhang; X.L. Wang; H. Huang

doi:10.4028/www.scientific.net/SSP.121-123.1297

Paper Titles

Characteristics of Nanoparticles in the Salt Solution and in Its Brush Electroplated Composite Coating
p.1281

Performance Investigation of a Micropositioning Table
p.1285

Characterization of Nano-Porous Silica-Zirconia Aerogels
p.1289

Preparation and Hydrogen Storage Properties of Mg-20 wt.% Mg₂Ni_0.8Cr_0.2 Composite with TiO₂ Nanoparticles
p.1293

Preparation and Photoelectrochemical Properties of SrTiO₃ Thin Films on Nickel Substrate by Hydrothermal Method
p.1297

Preparation of Hydrophilic Polymer Film by Using γ-Irradiation Method
p.1301

Preparation of PbS Nanocrystals Using Novel Synthesized Ester as the Ligand
p.1305

Preparation Parameters Optimization of Noncrystalline MoS₃ - the Precursor of Nano-MoS₂
p.1309

Preparing Mesoporous Silica Doped with Iron via a Novel Method
p.1313

HomeSolid State PhenomenaSolid State Phenomena Vols. 121-123Preparation and Photoelectrochemical Properties of...

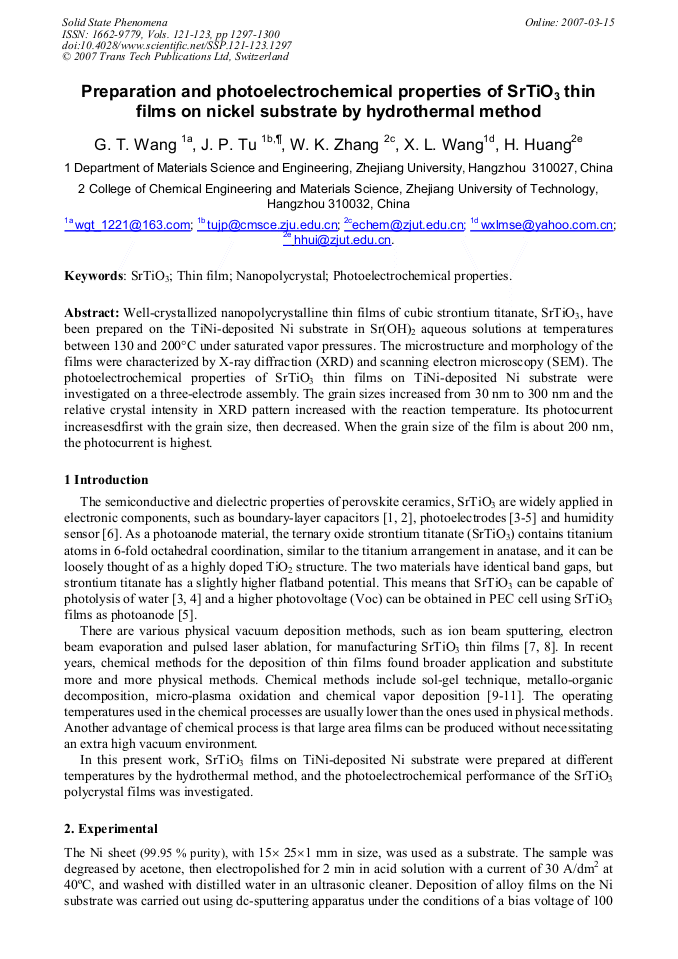

Preparation and Photoelectrochemical Properties of SrTiO₃ Thin Films on Nickel Substrate by Hydrothermal Method

Abstract:

Well-crystallized nanopolycrystalline thin films of cubic strontium titanate, SrTiO3, have been prepared on the TiNi-deposited Ni substrate in Sr(OH)2 aqueous solutions at temperatures between 130 and 200°C under saturated vapor pressures. The microstructure and morphology of the films were characterized by X-ray diffraction (XRD) and scanning electron microscopy (SEM). The photoelectrochemical properties of SrTiO3 thin films on TiNi-deposited Ni substrate were investigated on a three-electrode assembly. The grain sizes increased from 30 nm to 300 nm and the relative crystal intensity in XRD pattern increased with the reaction temperature. Its photocurrent increasesdfirst with the grain size, then decreased. When the grain size of the film is about 200 nm, the photocurrent is highest.
