For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Influence of Carbon Nanofibers and Piezoelectric Particles on the Thermomechanical Behaviour of Epoxy Mixtures
p.1419
Evaluation of Flaw Size Distributions Responsible for Size Effects in Strength of Small-Scale MEMS Specimens
p.1425
Determination of Surface Functionalities of Micro- and Nanoparticle Modified Polymers
p.1429
Reactive Compatibilization in Nano-Silica Filled Polypropylene Composites
p.1433
Synthesis and Magnetic Properties of Spherical NiO Nanocrystals
p.1437
Stiffness Prediction of Nylon 6/Caly Nanocomposites with a Staggered Model
p.1443
In-Situ Modification-Dispersion Technique for Nano-Fillers in Rubber Matrix
p.1447
Toughening of Polypropylene-Ethylene Copolymer with Nanosized CaCO3 and Styrene-Butadiene-Styrene
p.1451
Rheological Characteristics of Solvent-Cast Poly(e-Caprolactone)/Organoclay Nanocomposite
p.1455

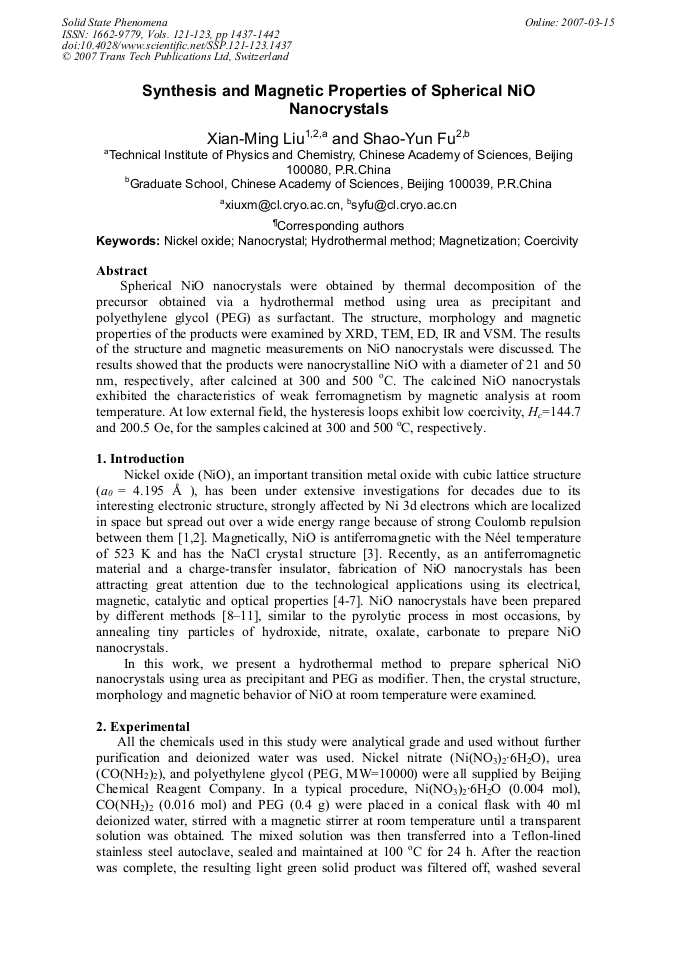

Synthesis and Magnetic Properties of Spherical NiO Nanocrystals

Article Preview

Abstract:

Spherical NiO nanocrystals were obtained by thermal decomposition of the precursor obtained via a hydrothermal method using urea as precipitant and polyethylene glycol (PEG) as surfactant. The structure, morphology and magnetic properties of the products were examined by XRD, TEM, ED, IR and VSM. The results of the structure and magnetic measurements on NiO nanocrystals were discussed. The results showed that the products were nanocrystalline NiO with a diameter of 21 and 50 nm, respectively, after calcined at 300 and 500 oC. The calcined NiO nanocrystals exhibited the characteristics of weak ferromagnetism by magnetic analysis at room temperature. At low external field, the hysteresis loops exhibit low coercivity, Hc=144.7 and 200.5 Oe, for the samples calcined at 300 and 500 oC, respectively.

You might also be interested in these eBooks
Nanoscience and Technology View Preview

Info:

Periodical:

Solid State Phenomena (Volumes 121-123)

Pages:

1437-1442

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.121-123.1437

Citation:

Cite this paper

Online since:

March 2007

Authors:

Xian Ming Liu, Shao Yun Fu

Keywords:

Coercivity, Hydrothermal Method, Magnetisation, Nanocrystal, Nickel Oxide (NiO)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2007 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] W. Nolting, L. Haunert and G. Borstel: Phys. Rev. B Vol 46 (1992)4426.

Google Scholar

[2] O. Bengone, M. Alouani, P. Blochl and J. Hugel: Phys. Rev. B Vol 62 (2000) 16392.

Google Scholar

[3] F. BØdker, M.F. Hansen, C. B. Koch and S. Mørup: J. Magn. Magn. Mater. Vol 221 (2000) 32.

Google Scholar

[4] X.M. Liu and X.G. Zhang: Electrochim. Acta, Vol 49(2004)229.

Google Scholar

[5] H. Bi, S.D. Li, Y.C. Zhang and Y.W. Du: J. Magn. Magn. Mater. Vol 277 (2004) 363.

Google Scholar

[6] D. Levin and J.Y. Ying: Stud. Surf. Sci. Catal. Vol 110 (1997) 367.

Google Scholar

[7] K. Arshak, O. Korostynska and S. Clifford : Sens. Actuators, A Vol 110(2004)354.

Google Scholar

[8] Y. Wang and J.J. Ke: Mater. Res. Bull. Vol 31(1996) 55.

Google Scholar

[9] G.J. Li, X.X. Huang, Y. Shi and J.K. Guo: Mater. Lett. Vol 51 (2001) 325.

Google Scholar

[10] N.B. Singh and A.K. Ojha: Thermochim. Acta Vol 378 (2001) 87.

Google Scholar

[11] V. Biju and M.A. Khadar: Mater. Sci. Eng. A Vol 304- 306 (2001)814.

Google Scholar

[12] V. Biju and M.A. Khadar: Spectrochim. Acta A. Vol 59 (2003) 121.

Google Scholar

[13] P. Ngo, P. Bonville and M.P. Pileni: Eur. Phys. J. B Vol 9 (1999) 583.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
