Ce Basic Hydroxycarbonate Complexe as Precursor for Mesoporous Ceria: Synthesis and Characterization

D. Yang; Ming Fen Wen; Ch.L. Song; Jian Chen; Yong Wan Gu

doi:10.4028/www.scientific.net/SSP.121-123.97

Paper Titles

A New Technique for Synthesizing Nanoporous Silica Films from Sol–Gel and Spin Coating Methods
p.81

Absorbing Manganese Oxide on Multi-Walled Carbon Nanotubes
p.85

Aided Sintering Behaviour of Nano Hydroxyapatite Particles
p.89

Carbon Nanotubes Synthesized by Rapid Quenching of Red-Hot Graphite Rod in Ethyl Alcohol
p.93

Ce Basic Hydroxycarbonate Complexe as Precursor for Mesoporous Ceria: Synthesis and Characterization
p.97

Chemical Vapor Deposition Growth of Multi-Walled Carbon Nanotubes on Metallic Substrates
p.101

Colloidal Silica Particles with Bimodal Final Size Distribution: Ion-Induced Nucleation Mechanism
p.105

The Effect of CdS Nanorods on the Morphology of Electrospun Poly(Vinyl Pyrrolidone) Products
p.109

The Effects of Organic Solvent on the Electrospinning of Water-Soluble Polyacrylamide with Ultrahigh Molecular Weight
p.113

HomeSolid State PhenomenaSolid State Phenomena Vols. 121-123Ce Basic Hydroxycarbonate Complexe as Precursor...

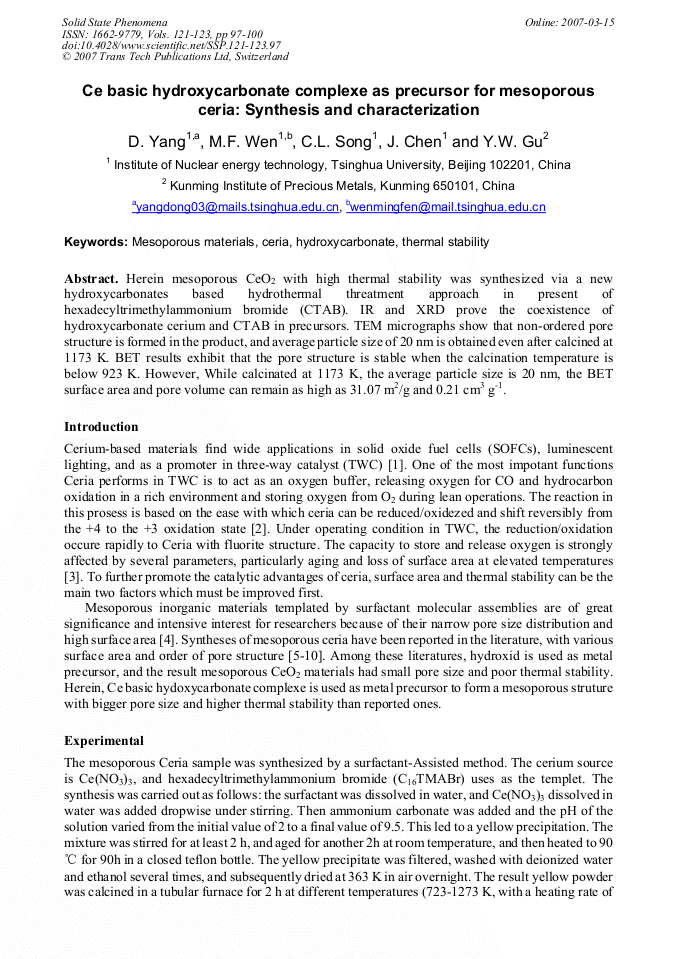

Ce Basic Hydroxycarbonate Complexe as Precursor for Mesoporous Ceria: Synthesis and Characterization

Abstract:

Herein mesoporous CeO2 with high thermal stability was synthesized via a new hydroxycarbonates based hydrothermal threatment approach in present of hexadecyltrimethylammonium bromide (CTAB). IR and XRD prove the coexistence of hydroxycarbonate cerium and CTAB in precursors. TEM micrographs show that non-ordered pore structure is formed in the product, and average particle size of 20 nm is obtained even after calcined at 1173 K. BET results exhibit that the pore structure is stable when the calcination temperature is below 923 K. However, While calcinated at 1173 K, the average particle size is 20 nm, the BET surface area and pore volume can remain as high as 31.07 m2/g and 0.21 cm3 g-1.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Solid State Phenomena (Volumes 121-123)

Pages:

97-100

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.121-123.97

Citation:

Cite this paper

Online since:

March 2007

Authors:

D. Yang, Ming Fen Wen, Ch.L. Song, Jian Chen, Yong Wan Gu

Keywords:

Ceria, Hydroxycarbonate, Mesoporous Material, Thermal Stability

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] A. Trovarelli, C. de Leitenburg, M. Boaro and G. Dolcetti: Catal. Today Vol. 50 (1999), p.353.

DOI: 10.1016/s0920-5861(98)00515-x

Google Scholar

[2] H.C. Yao and Y.F.Y. Yao: J. Catal. Vol. 89 (1984), p.254.

Google Scholar

[3] S.J. Schmieg, and D.N. Belton: Appl. Catal. Vol. 6 (1995), p.127.

Google Scholar

[4] C.T. Kresge, M.E. Leonowicz, W.J. Roth, J.C. Vartuli and J.S. Beck: Nature Vol. 359 (1992), p.710.

Google Scholar

[5] D. Terribile, A. Trovarelli, C. de Leitenburg and G. Dolcetti: Chem. Mater. Vol. 9 (1997), p.2676.

Google Scholar

[6] D. Terribile, A. Trovarelli, J. Llorca, C. de Leitenburg and G. Dolcetti: J. Catal. Vol. 178 (1998), p.299.

Google Scholar

[7] D.M. Lyons, K.M. Ryan and M.A. Morris: J. Mater. Chem. Vol. 12 (2002), p.1207.

Google Scholar

[8] D.M. Lyons, J.P. McGrath and M.A. Morris: J. Phys. Chem. B Vol. 107 (2003), p.4607.

Google Scholar

[9] M. Lundberg, B. Skarman, F. Cesar and L.R. Wallenberg: Micropor. Mesopor. Mater. Vol. 54 (2002), p.97.

Google Scholar

[10] M. Lundberg, B. Skarman, F. Cesar and L.R. Wallenberg: Micropor. Mesopor. Mater. Vol. 69 (2004), p.187.

Google Scholar

[11] Y. Liu, Y.Q. Zhai and Y.D. Li: React. Kinet. Catal. Lett. Vol. 82 (2004), p.295.

Google Scholar

[12] J. Kašpar., P. Fornasiero and N. Hickey: Catal. Today Vol. 77 (2003), p.419.

Google Scholar
