Precipitation of Phases in Al-Mg-Si-Cu Alloy with Sc and Zr Additions during Heat Treatment

Lidia Lityńska-Dobrzyńska

doi:10.4028/www.scientific.net/SSP.130.163

Paper Titles

Phase Transformation in Ti-Ni-Ta Shape Memory Alloy
p.147

Characterization of Nitrided/Oxidized Layers Covering Ni-Ti Shape Memory Alloy
p.151

Characterisation of β Phase in WE54 Magnesium Alloy
p.155

Morphology of Precipitates in Ni-Al-Cr Intermetallic Alloy
p.159

Precipitation of Phases in Al-Mg-Si-Cu Alloy with Sc and Zr Additions during Heat Treatment
p.163

Devitrification and Nano-Crystalline/Amorphous Composite Formation in Ni₆₄Cu₉Fe₈P₁₉ Glassy Alloy at Elevated Temperatures
p.167

Influence of Alloying Additions on Enhancement of Soft Magnetic Properties Effect and Crystallization in FeXSiB (X=Cu, V, Co, Zr, Nb) Amorphous Alloys
p.171

TEM Investigations of Electron 21 Magnesium Alloy
p.175

Structural Studies of Metallic Powders Fe-Al-X (X= Fe, Ni, Cu, Cr) Type Obtained by the Self-Decomposition Method and Electro-Magneto-Mechanical Grinding
p.181

HomeSolid State PhenomenaSolid State Phenomena Vol. 130Precipitation of Phases in Al-Mg-Si-Cu Alloy with...

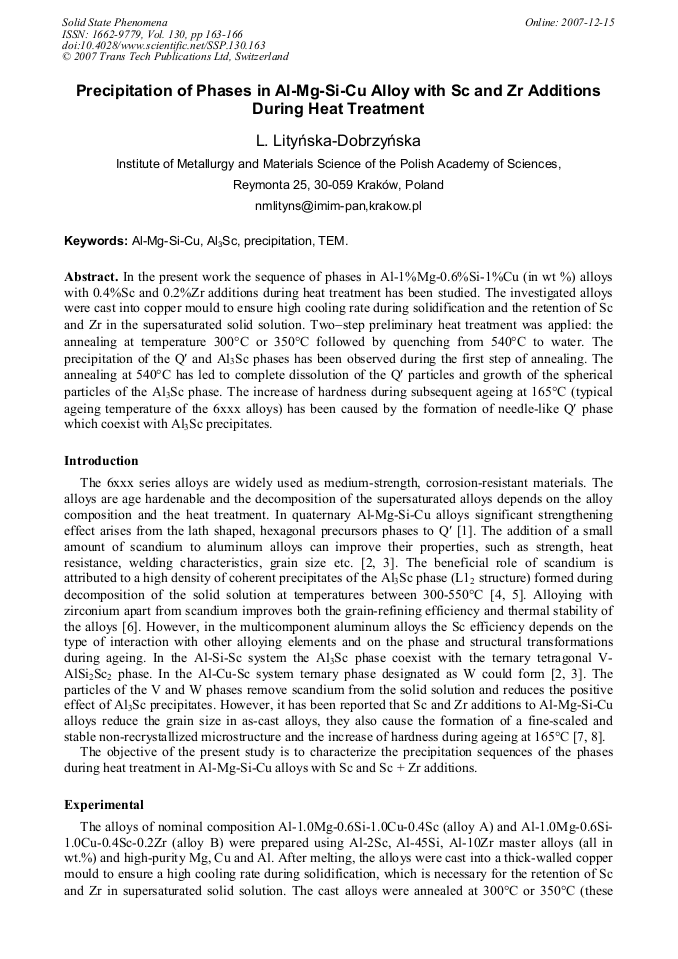

Precipitation of Phases in Al-Mg-Si-Cu Alloy with Sc and Zr Additions during Heat Treatment

Abstract:

In the present work the sequence of phases in Al-1%Mg-0.6%Si-1%Cu (in wt %) alloys with 0.4%Sc and 0.2%Zr additions during heat treatment has been studied. The investigated alloys were cast into copper mould to ensure high cooling rate during solidification and the retention of Sc and Zr in the supersaturated solid solution. Two−step preliminary heat treatment was applied: the annealing at temperature 300°C or 350°C followed by quenching from 540°C to water. The precipitation of the Q′ and Al3Sc phases has been observed during the first step of annealing. The annealing at 540°C has led to complete dissolution of the Q′ particles and growth of the spherical particles of the Al3Sc phase. The increase of hardness during subsequent ageing at 165°C (typical ageing temperature of the 6xxx alloys) has been caused by the formation of needle-like Q′ phase which coexist with Al3Sc precipitates.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Solid State Phenomena (Volume 130)

Pages:

163-166

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.130.163

Citation:

Cite this paper

Online since:

December 2007

Authors:

Lidia Lityńska-Dobrzyńska

Keywords:

Al₃Sc, Al-Mg-Si-Cu, Precipitation, TEM

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] D.J. Chakrabarti and D.E. Laughlin: Progress in Materials Science Vol. 49 (2004), p.389.

Google Scholar

[2] L.S. Toropova, D.G. Eskin, M.L. Kharakterova and T.V. Dobatkina: Advanced Aluminum Alloys Containing Scandium (Gordon and Breach Science Publishers, 1998).

DOI: 10.4324/9781315097541

Google Scholar

[3] J. Royset and N. Ryum: Intern. Mater. Rev. Vol. 50 (2005), p.19.

Google Scholar

[4] A.F. Norman, P.B. Prangnell, R.S. McEwen: Acta mater. Vol. 46 (1998), p.5715.

Google Scholar

[5] G. Novotny, A.J. Ardell: Mater. Sci. Eng. Vol. A318 (2001), p.144.

Google Scholar

[6] V.G. Davydov, T.D. Rostova, V.V. Zakharov, Yu.A. Filatov, V.I. Yalagin: Mater. Sci. Eng. Vol. A280 (2000), p.30.

Google Scholar

[7] L. Lityńska: Archives of Mater. Sci. Vol. 26 (2005), p.65.

Google Scholar

[8] L. Lityńska, J. Dutkiewicz: Proc. 10 Inter. Conf. : Aluminum 2005, 12-14 October (2005), Kliczków, Poland.

Google Scholar
