Evolution of the Fe3Si Phase during Siliconising of Ferrous Materials

F. Stergioudi; D.N. Tsipas

doi:10.4028/www.scientific.net/SSP.130.89

Paper Titles

Precise Lattice Parameters of the Sr_0.61Ba_0.39Nb₂O₆ Single Crystal
p.73

Gradients of Parameters of the Real Structure in Steels Surface Layers after Mechanical Treatment
p.77

Growth and Structure of Zn_1-xMn_xCr₂Se₄ Single Crystals
p.81

Crystallization of CoSi₂-Si Eutectic Composites
p.85

Evolution of the Fe₃Si Phase during Siliconising of Ferrous Materials
p.89

X-Ray Analysis of the Cd_0.5Ge_0.5Cr₂Se₄ and CdCr_1.9Ge_0.075Se₄ Compounds
p.93

Structure Studies of Electrodeposited Ni-Mo Alloys with Polymers after Annealing
p.97

Structural Refinement and Homogeneity Range of Sm₆Al₃Si
p.101

Crytalline Precipitates in Silver Ion Conducting Materials
p.107

HomeSolid State PhenomenaSolid State Phenomena Vol. 130Evolution of the Fe3Si Phase during Siliconising...

Evolution of the Fe₃Si Phase during Siliconising of Ferrous Materials

Abstract:

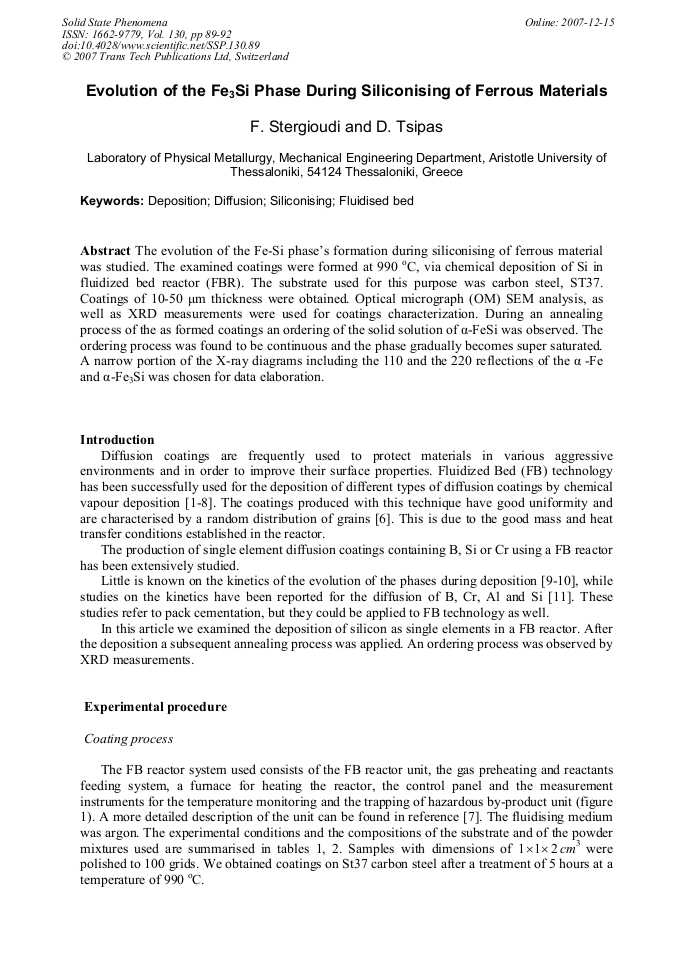

The evolution of the Fe-Si phase’s formation during siliconising of ferrous material was studied. The examined coatings were formed at 990 oC, via chemical deposition of Si in fluidized bed reactor (FBR). The substrate used for this purpose was carbon steel, ST37. Coatings of 10-50 μm thickness were obtained. Optical micrograph (OM) SEM analysis, as well as XRD measurements were used for coatings characterization. During an annealing process of the as formed coatings an ordering of the solid solution of α-FeSi was observed. The ordering process was found to be continuous and the phase gradually becomes super saturated. A narrow portion of the X-ray diagrams including the 110 and the 220 reflections of the α -Fe and α-Fe3Si was chosen for data elaboration.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Solid State Phenomena (Volume 130)

Pages:

89-92

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.130.89

Citation:

Cite this paper

Online since:

December 2007

Authors:

F. Stergioudi, D.N. Tsipas

Keywords:

Deposition, Diffusion, Fluidized Bed, Siliconising

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] F.J. Pérez, M.P. Hierro, M.C. Carpienero, F. Pedraza and C. Gómez, Surface and Coatings Technology, 140 (2001) p.93.

Google Scholar

[2] F.J. Pérez, M.P. Hierro, F. Pedraza, C. Gómez and M.C. Carpienero, Surface and Coatings Technology, 120-121 (1999) p.151.

Google Scholar

[3] D.N. Tsipas, K.G. Anthymidis and Y. Flitris, Journal of Materials Processing Technology 134 (2003) p.145.

Google Scholar

[4] A.K. Sihna, ASM International, Cleveland, OH, 4 (1991) p.437.

Google Scholar

[5] K.G. Anthymidis, N. Maragoudakis, G. Stergioudis, O. Haider and D.N. Tsipas, Materials Letters, 57 (2003) p.2399.

Google Scholar

[6] K.G. Anthymidis, N. Maragoudakis, G. Stergioudis, O. Haider and D.N. Tsipas, Science and Technology of Advanced Materials, 3 (2002) p.303.

Google Scholar

[7] D.N. Tsipas and Y. Flitris, Journal of Materials Science, 35 (2000) p.5493.

Google Scholar

[8] S. Kingel, G.N. Angelopoulos, D. Papamantellos and W. Dahl, Steel Res., 66-67 (1995) p.318.

Google Scholar

[9] R. Bianco and R.A. Rapp, Metallurgical and Ceramic Coatings, K.H. Stern, Chapman & Hall, (1993).

Google Scholar

[10] G. Wang and R.A. Rapp, Proceedings of the 2 nd International Conference on HeatResistant Materials, Gattinburg, Tennessee, (1995).

Google Scholar

[11] F.S. Chen and K.L. Wang, Surface and Coatings Technology, 115, (1999)p.239.

Google Scholar

[12] .

Google Scholar

[12] G. Eggeler H. Vogel, H. Kaesller, Z. of Metallk. 77(4) (1986)p.239.

Google Scholar
