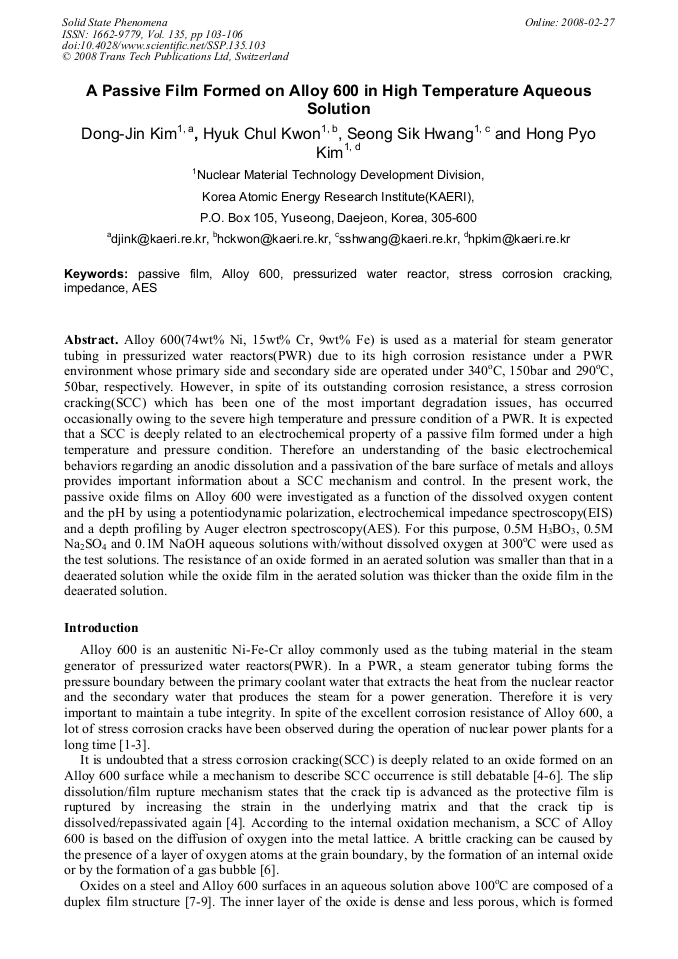

A Passive Film Formed on Alloy 600 in High Temperature Aqueous Solution

Abstract:

Alloy 600(74wt% Ni, 15wt% Cr, 9wt% Fe) is used as a material for steam generator tubing in pressurized water reactors(PWR) due to its high corrosion resistance under a PWR environment whose primary side and secondary side are operated under 340oC, 150bar and 290oC, 50bar, respectively. However, in spite of its outstanding corrosion resistance, a stress corrosion cracking(SCC) which has been one of the most important degradation issues, has occurred occasionally owing to the severe high temperature and pressure condition of a PWR. It is expected that a SCC is deeply related to an electrochemical property of a passive film formed under a high temperature and pressure condition. Therefore an understanding of the basic electrochemical behaviors regarding an anodic dissolution and a passivation of the bare surface of metals and alloys provides important information about a SCC mechanism and control. In the present work, the passive oxide films on Alloy 600 were investigated as a function of the dissolved oxygen content and the pH by using a potentiodynamic polarization, electrochemical impedance spectroscopy(EIS) and a depth profiling by Auger electron spectroscopy(AES). For this purpose, 0.5M H3BO3, 0.5M Na2SO4 and 0.1M NaOH aqueous solutions with/without dissolved oxygen at 300oC were used as the test solutions. The resistance of an oxide formed in an aerated solution was smaller than that in a deaerated solution while the oxide film in the aerated solution was thicker than the oxide film in the deaerated solution.

• Periodical: Solid State Phenomena (Volume 135)
• Pages: 103-106
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.135.103
• Online since: February 2008
• Authors: Dong Jin Kim, Hyuk Chul Kwon, Seong Sik Hwang, Hong Pyo Kim
• Keywords: AES, Alloy 600, Impedance, Passive Films, Pressurized Water Reactor, Stress Corrosion Cracking (SCC)

References

[1] R. B. Rebak and Z. Szklarska-Smialowska: Corrosion Science Vol. 38 (1996), p.971.

[2] P. M. Scott and P. Combrade: 11 th Int. Conf. Environmental Degradation of Materials in Nuclear Systems, p.29, Stevenson, WA, Aug. 10-14, (2003).

[3] J. A. Gorman, J. E. Harris: 11th Int. Conf. Environmental Degradation of Materials in Nuclear Systems, p.362, Stevenson, WA, Aug. 10-14, (2003).

[4] P. L. Andresen and F. P. Ford, Mater. Sci. Eng.: A103 (1988) 167.

[5] D. D. Macdonald and M. Urquidi-Macdonald: Corrosion Science Vol. 47 (1991), p.51.

[6] P. M. Scott and M. Le Calvar: 6 th Int. Symp. on Environmental Degradation of Materials in Nuclear Power Systems, p.657, San Diego, CA, Aug. 1-5, (1993).

[7] J. Robertson: Corrosion Science, Vol. 29 (1989), p.1275.

[8] A. Gebert, F. Schneider and K. Mummert: Nuclear Engineering and Design, Vol. 174 (1997), p.327.

[9] J. -J. Park, S. -I. Pyun and S. -B. Lee: Electrochim. Acta, Vol. 49 (2004), p.281.
