The Effect of Ag Diffusion Barrier on the Microstructure of a Titanium Dissimilar Joining

Min Ku Lee; Jung G. Lee; Jong Keuk Lee; Jin Ju Park; Young Rang Uhm; Chang Kyu Rhee

doi:10.4028/www.scientific.net/SSP.135.135

Paper Titles

Nucleation of Intragranular Ferrite on B1-Type Non-Metallic Inclusions
p.115

Microstructure and Nano-Indentation Properties of Ion-Irradiated Fe-9wt%Cr Alloy
p.119

Synthesis and Characterization of NiFe₂O₄ Nanoparticles Synthesized by Levitational Gas Condensation (LGC)
p.123

Corrosion Behavior of Ceramic Dispersion Strengthened High-Cr Stainless Steel
p.127

Brazing of Ti Using a Zr-Based Amorphous Filler
p.131

The Effect of Ag Diffusion Barrier on the Microstructure of a Titanium Dissimilar Joining
p.135

Effect of Magnesium Addition on the Phase Transformation of α-Alumina Prepared from Route of Ammonium Aluminum Carbonate Hydroxide
p.139

Reduction Behavior of W and Cu Oxides Powder Mixture
p.143

Comparative Studies of Cellular Permeable Solids as Catalyst Supports
p.150

HomeSolid State PhenomenaSolid State Phenomena Vol. 135The Effect of Ag Diffusion Barrier on the...

The Effect of Ag Diffusion Barrier on the Microstructure of a Titanium Dissimilar Joining

Abstract:

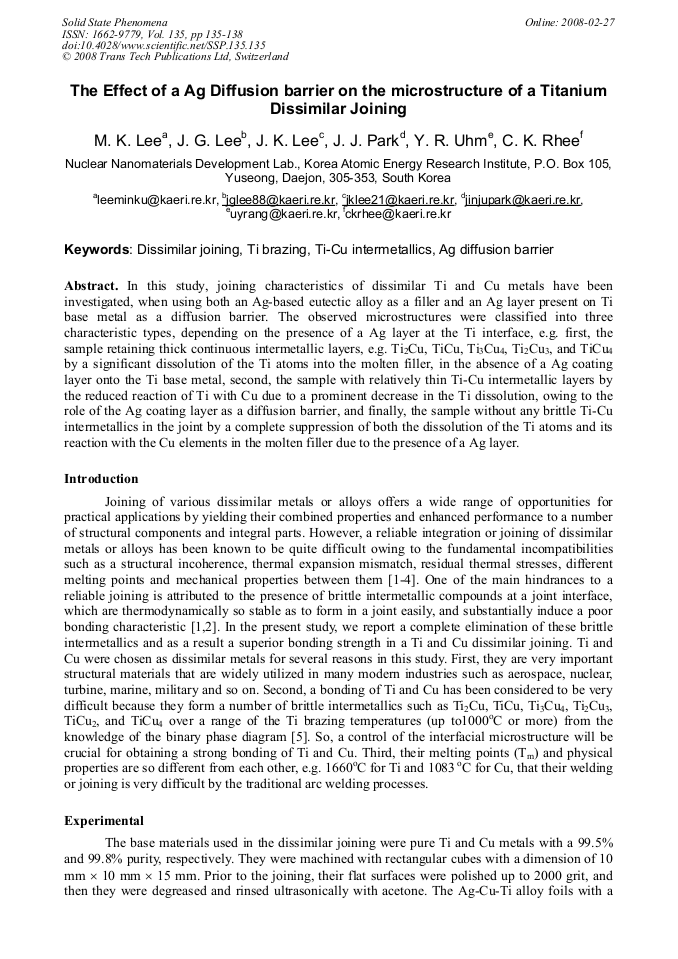

In this study, joining characteristics of dissimilar Ti and Cu metals have been investigated, when using both an Ag-based eutectic alloy as a filler and an Ag layer present on Ti base metal as a diffusion barrier. The observed microstructures were classified into three characteristic types, depending on the presence of a Ag layer at the Ti interface, e.g. first, the sample retaining thick continuous intermetallic layers, e.g. Ti2Cu, TiCu, Ti3Cu4, Ti2Cu3, and TiCu4 by a significant dissolution of the Ti atoms into the molten filler, in the absence of a Ag coating layer onto the Ti base metal, second, the sample with relatively thin Ti-Cu intermetallic layers by the reduced reaction of Ti with Cu due to a prominent decrease in the Ti dissolution, owing to the role of the Ag coating layer as a diffusion barrier, and finally, the sample without any brittle Ti-Cu intermetallics in the joint by a complete suppression of both the dissolution of the Ti atoms and its reaction with the Cu elements in the molten filler due to the presence of a Ag layer.

You might also be interested in these eBooks

Nanocomposites and Nanoporous Materials VIII

View Preview

Info:

Periodical:

Solid State Phenomena (Volume 135)

Pages:

135-138

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.135.135

Citation:

Cite this paper

Online since:

February 2008

Authors:

Min Ku Lee, Jung G. Lee, Jong Keuk Lee, Jin Ju Park, Young Rang Uhm, Chang Kyu Rhee

Keywords:

Ag Diffusion barrier, Dissimilar Joining, Ti brazing, Ti-Cu Intermetallics

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] R. K. Shiue, S. K. Wu, and C. H. Chan, Metall. Mater. Trans. A, Vol 35A, 2004, pp.3177-3186.

Google Scholar

[2] R. K. Shiue, S. K. Wu, and C. H. Chan, J. Alloy Compd., Vol 372, 2004, pp.148-157.

Google Scholar

[3] D. W. Liaw and R. K. Shiue, Metall. Mater. Trans. A, Vol 36A, 2005, pp.2415-2427.

Google Scholar

[4] C. C. Liu, C. L. Ou, and R. K. Shiue, J. Mater. Sci., Vol 37, 2002, pp.2225-2235.

Google Scholar

[5] T. B. Massalski, Binary Alloy Phase Diagram, ASM International, Metals Park, Vol 2, 1990, p.1495.

Google Scholar

[6] R. K. Shiue, S. K. Wu, and S. Y. Chen, Acta Mater., Vol 51, 2003, p.1991-(2004).

Google Scholar

[7] R. K. Shiue, S. K. Wu, and S. Y. Chen, Intermetallics, Vol 11, 2003, pp.661-671.

Google Scholar
