Interpretation of the Magnetic Order, Neutron Diffraction and ¹¹¹Cd PAC Studies of NdScGe

Abstract:

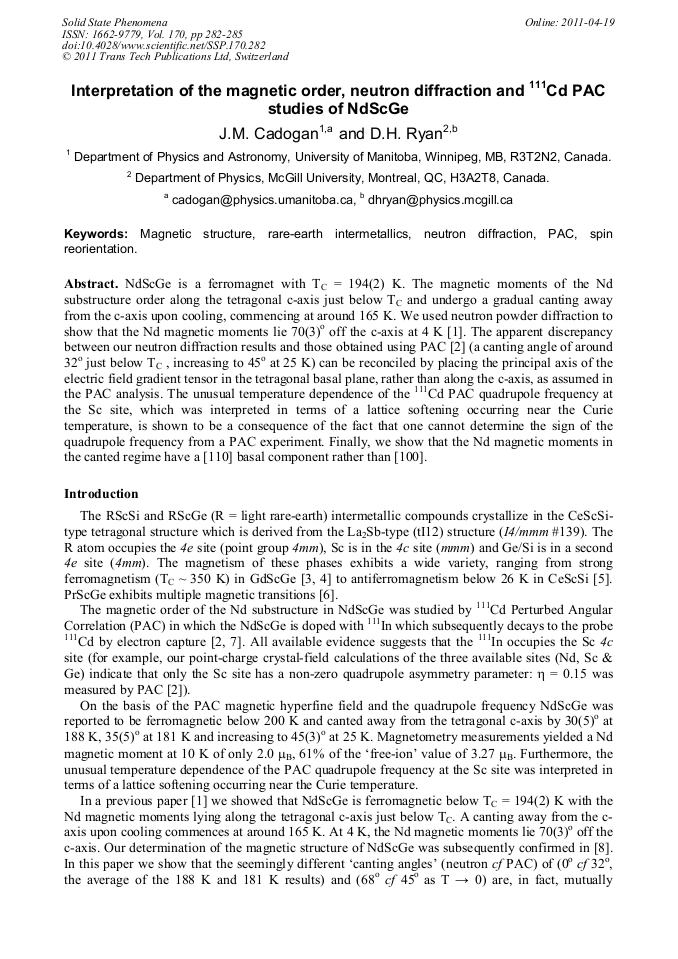

NdScGe is a ferromagnet with TC = 194(2) K. The magnetic moments of the Nd substructure order along the tetragonal c-axis just below TC and undergo a gradual canting away from the c-axis upon cooling, commencing at around 165 K. We used neutron powder diffraction to show that the Nd magnetic moments lie 70(3)o off the c-axis at 4 K [1]. The apparent discrepancy between our neutron diffraction results and those obtained using PAC [2] (a canting angle of around 32o just below TC , increasing to 45o at 25 K) can be reconciled by placing the principal axis of the electric field gradient tensor in the tetragonal basal plane, rather than along the c-axis, as assumed in the PAC analysis. The unusual temperature dependence of the 111Cd PAC quadrupole frequency at the Sc site, which was interpreted in terms of a lattice softening occurring near the Curie temperature, is shown to be a consequence of the fact that one cannot determine the sign of the quadrupole frequency from a PAC experiment. Finally, we show that the Nd magnetic moments in the canted regime have a [110] basal component rather than [100].

• Periodical: Solid State Phenomena (Volume 170)
• Pages: 282-285
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.170.282
• Online since: April 2011
• Authors: J.M. Cadogan, D.H. Ryan
• Keywords: Magnetic Structure, Neutron Diffraction, PAC, Rare Earth Intermetallics, Spin Reorientation

References

[1] J.M. Cadogan, D.H. Ryan, R. Gagnon and C.J. Voyer, J. Appl. Phys. Vol 97 (2005), 10A916.

[2] S.N. Mishra and S.K. Dhar, J. Phys.: Cond. Matter Vol 16 (2004), pp.635-640.

[3] S.A. Nikitin, I.A. Ovtchenkova, Yu.V. Skourski and A.V. Morozkin, J. Alloys Comp. Vol 345 (2002), pp.50-3.

[4] P. Manfrinetti, M. Pani, A. Palenzona, S.K. Dhar and S. Singh, J. Alloys Comp. Vol 334 (2002), pp.9-13.

[5] S. Singh, S.K. Dhar, C. Mitra, P. Paulose, P. Manfrinetti and A. Palenzona, J. Phys.: Cond. Matter Vol 13 (2001), pp.3753-66.

DOI: 10.1088/0953-8984/13/16/306

[6] S. Singh, S.K. Dhar, P. Manfrinetti, A. Palenzona and D. Mazzone, J. Magn. Magn. Mater. Vol 269 (2003), pp.113-121.

[7] S.N. Mishra, J. Phys.: Cond. Matter Vol 21 (2009), p.115601 (11pp).

[8] P. Manfrinetti, A.V. Morozkin, O. Isnard, P. Henry and A. Palenzona, J. Alloys Comp. Vol 450 (2008), pp.86-91.

DOI: 10.1016/j.jallcom.2006.11.057

[9] G. Shirane, Acta Cryst. Vol 12 (1959), pp.282-5.

[10] J. Rodríguez-Carvajal, Physica B Vol 192 (1993), 55-69.

[11] T. Roisnel and J. Rodríguez-Carvajal, Mater. Sci. Forum Vol 378-81 (2001), 118-23.
