Flow Dynamic Simulation of Micro Abrasive Water Jet

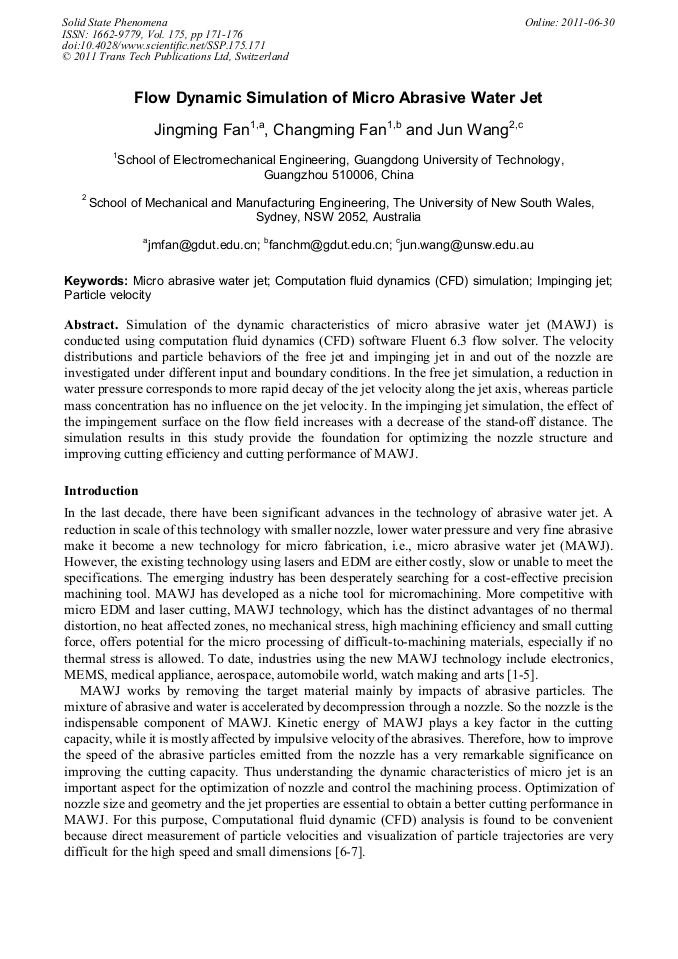

Article Preview

Abstract:

Simulation of the dynamic characteristics of micro abrasive water jet (MAWJ) is conducted using computation fluid dynamics (CFD) software Fluent 6.3 flow solver. The velocity distributions and particle behaviors of the free jet and impinging jet in and out of the nozzle are investigated under different input and boundary conditions. In the free jet simulation, a reduction in water pressure corresponds to more rapid decay of the jet velocity along the jet axis, whereas particle mass concentration has no influence on the jet velocity. In the impinging jet simulation, the effect of the impingement surface on the flow field increases with a decrease of the stand-off distance. The simulation results in this study provide the foundation for optimizing the nozzle structure and improving cutting efficiency and cutting performance of MAWJ.

You might also be interested in these eBooks
Application of Diamond and Related Materials View Preview

Info:

Periodical:

Solid State Phenomena (Volume 175)

Pages:

171-176

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.175.171

Citation:

Cite this paper

Online since:

June 2011

Authors:

Jing Ming Fan, Chang Ming Fan, Jun Wang

Keywords:

Computation Fluid Dynamics (CFD) Simulation, Impinging Jet, Micro Abrasive Water Jet, Particle Velocity

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2011 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] D.S. Miller: J. Mater. Process. Technol. Vol. 149 (2004), pp.37-42.

Google Scholar

[2] Information on http: /www. microwaterjet. com.

Google Scholar

[3] J. Wang, T. Nguyen, and K. Pang: J. App. Phys. Vol. 150(4) (2009) Article No. 044906.

Google Scholar

[4] K.L. Pang, T. Nguyen, J.M. Fan and J. Wang: Key Eng. Mater. Vol. 433(10) (2010), pp.639-644.

Google Scholar

[5] J.M. Fan, C.M. Fan and J. Wang: Adv. Mater. Res. Vol. 135 (2010), pp.370-375.

Google Scholar

[6] J. Wang: Abrasive waterjet machining of engineering materials (Trans Tech Publications, Switzerland 2003).

Google Scholar

[7] A.W. Momber and R. Kovacevic: Principles of Abrasive Waterjet Machining (Springer, London 1998).

Google Scholar

[8] J.A.C. Humphrey, Int. J. Heat and Fluid Flow Vol. 11(3) (1990), pp.170-195.

Google Scholar

[9] The user guide of the Fluent6. 3 Inc.

Google Scholar

[10] H. Liu, J. Wang, N. Kelson and R. Brown: J. Mater. Proc. Tech., Vol. 153-154 (2004), pp.488-493.

Google Scholar

[11] W. Burwash, W. Finlay and E. Matida: Aerosol Sci. Technol. Vol. 40 (3) (2006), pp.147-156.

Google Scholar
