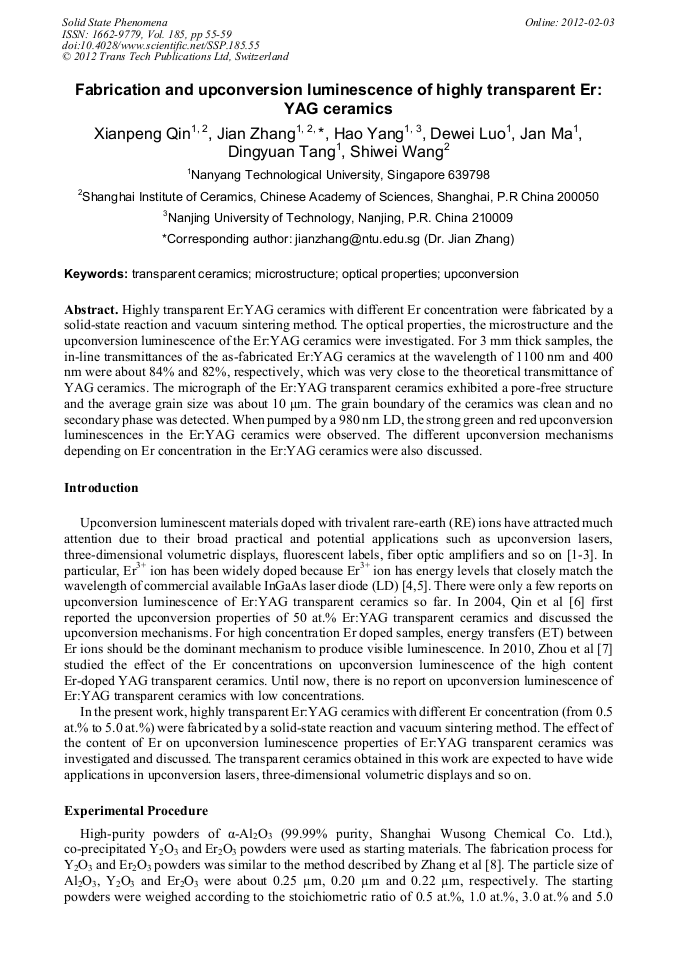

Fabrication and Upconversion Luminescence of Highly Transparent Er:YAG Ceramics

Abstract:

Highly transparent Er:YAG ceramics with different Er concentration were fabricated by a solid-state reaction and vacuum sintering method. The optical properties, the microstructure and the upconversion luminescence of the Er:YAG ceramics were investigated. For 3 mm thick samples, the in-line transmittances of the as-fabricated Er:YAG ceramics at the wavelength of 1100 nm and 400 nm were about 84% and 82%, respectively, which was very close to the theoretical transmittance of YAG ceramics. The micrograph of the Er:YAG transparent ceramics exhibited a pore-free structure and the average grain size was about 10 μm. The grain boundary of the ceramics was clean and no secondary phase was detected. When pumped by a 980 nm LD, the strong green and red upconversion luminescences in the Er:YAG ceramics were observed. The different upconversion mechanisms depending on Er concentration in the Er:YAG ceramics were also discussed.

• Periodical: Solid State Phenomena (Volume 185)
• Pages: 55-59
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.185.55
• Online since: February 2012
• Authors: Xian Peng Qin, Jian Zhang, Hao Yang, De Wei Luo, Jan Ma, Ding Yuan Tang, Shi Wei Wang
• Keywords: Microstructure, Optical Property, Transparent Ceramics, Upconversion

References

[1] T. Hirai, T. Hirano, I. Komasawa, Preparation of Y2O3: Eu3+ phosphor fine particles using an emulsion liquid membrane system. J. Mater. Chem. 10 (2000) 2306-2310.

DOI: 10.1039/b002532l

[2] R. Kapoor, C.S. Friend, A. Biswas, P.N. Prasad, Highly efficient infrared-to-visible energy upconversion in Er3+: Y2O3. Opt. Lett. 25 (2000) 338-340.

DOI: 10.1364/ol.25.000338

[3] J. Zhang, S.W. Wang, T.J. Rong, L.D. Chen, Upconversion luminescence in Er3+ doped and Yb3+/Er3+ codoped yttria nanocrystalline powders. J. Am. Ceram. Soc. 87 (2004) 1072-1075.

DOI: 10.1111/j.1551-2916.2004.01072.x

[4] R. Francini, S. Pietrantoni, M. Zambelli, A. Speghini, M. Bettinelli, Upconversion dynamics in Er3+ doped nanocrystalline YAlO3. J. Alloys Compd. 380 (2004) 34-38.

DOI: 10.1016/j.jallcom.2004.03.015

[5] D. Matsuura, Red, green, and blue upconversion luminescence of trivalent-rare-earth ion-doped Y2O3 nanocrystals. Appl. Phys. Lett. 81 (2002) 4526-4528.

DOI: 10.1063/1.1527976

[6] G.S. Qin, J.R. Lu, J.F. Bisson, Y. Feng, K. Ueda, H. Yagi, T. Yanagitani, Upconversion luminescence of Er3+ in highly transparent YAG ceramics. Solid State Commun. 132 (2004) 103-106.

DOI: 10.1016/j.ssc.2004.07.018

[7] J. Zhou, W.X. Zhang, J. Li, B.X. Jiang, W.B. Liu, Y.B. Pan, Upconversion luminescence of high content Er-doped YAG transparent ceramics. Ceram. Inter. 36 (2010) 193-197.

DOI: 10.1016/j.ceramint.2009.07.018

[8] J. Zhang, L.Q. An, M. Liu, S. Shimai, S.W. Wang, Sintering of Yb3+: Y2O3 transparent ceramics in hydrogen atmosphere. J. Eu. Ceram. Soc. 29 (2009) 305-309.

DOI: 10.1016/j.jeurceramsoc.2008.03.006

[9] J. Silver, M.I. Martinez-Rubio, T.G. Ireland, G.R. Fern, R. Withnall, The effect of particle morphology and crystallite size on the upconversion luminescence properties of erbium and ytterbium co-doped yttrium oxide phosphors. J. Phys. Chem. B 105 (2001).

DOI: 10.1021/jp002778c
