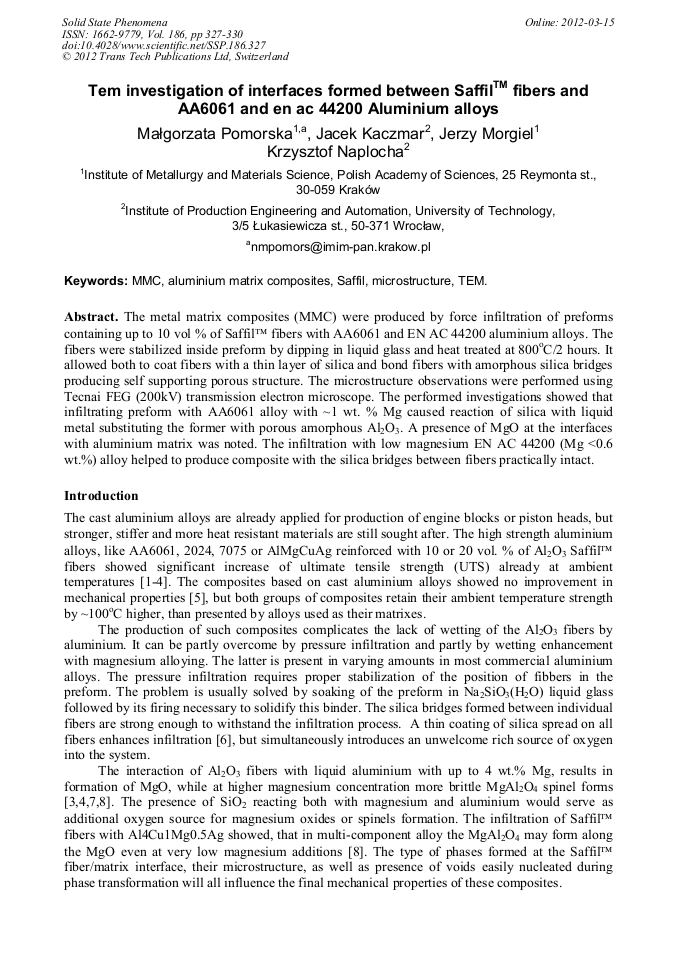

TEM Investigation of Interfaces Formed between Saffil^TM Fibers and AA6061 and En Ac 44200 Aluminium Alloys

Abstract:

The metal matrix composites (MMC) were produced by force infiltration of preforms containing up to 10 vol % of Saffil fibers with AA6061 and EN AC 44200 aluminium alloys. The fibers were stabilized inside preform by dipping in liquid glass and heat treated at 800oC/2 hours. It allowed both to coat fibers with a thin layer of silica and bond fibers with amorphous silica bridges producing self supporting porous structure. The microstructure observations were performed using Tecnai FEG (200kV) transmission electron microscope. The performed investigations showed that infiltrating preform with AA6061 alloy with ~1 wt. % Mg caused reaction of silica with liquid metal substituting the former with porous amorphous Al2O3. A presence of MgO at the interfaces with aluminium matrix was noted. The infiltration with low magnesium EN AC 44200 (Mg <0.6 wt.%) alloy helped to produce composite with the silica bridges between fibers practically intact.

• Periodical: Solid State Phenomena (Volume 186)
• Pages: 327-330
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.186.327
• Online since: March 2012
• Authors: Malgorzata Pomorska, Jacek Kaczmar, Jerzy Morgiel, Krzysztof Naplocha
• Keywords: Aluminum Matrix Composite (AMC), Microstructure, MMC, SAFFIL, TEM

References

[1] S. Vaucher and O. Beffort: Bonding and interface formation in metal matrix composites, MMC-Assess Thematic Network, EMPA, TU Wien 1998-2001.

[2] J. Morgiel, K. Naplocha, M. Pomorska, J. Kaczmar: Microstructure and Tensile Properties of Composites with High Strength Aluminium Alloys Matrix Reinforced with Saffil Fibbres, Kompozyty/Composites, 11 (2011) 136-141.

[3] C. Cayron: TEM studies of interfacial reactions in Al2O3 short fiber or high volume fraction SiC particle reinforced Al4Cu1Mg0.5Ag squeeze cast composites, Ph. D thesis, Lausane 2000.

[4] S. Long, O. Beffort, J. Moret and Ph. Thevoz: Processing of Al based MMCs by Indirect Squeez Infiltration of Ceramic Preforms, Aluminium, 76 (2000) 82-89.

[5] Automotive Data Sheet, Honda Motor Company, www.saffil.com/pdfs/automotive/data/mmcprop.pdf.

[6] N. Sobczak, J. Sobczak, R. Asthana, R. Purgert: The mystery of molten metal, Chine Foundry, 7 (2010) 425-437.

[7] W. Lacom, H.P. Degisher, P. Schulze: Properties of Continuous Fiber Reinforced Al and Mg Matrix Composites Produced by Gas Pressure Infiltration, Key Eng. Mat., 127-131 (1997) 99.

DOI: 10.4028/www.scientific.net/kem.127-131.99

[8] H.J. Dudek, S. Wang: Fiber-matrix interaction in the a- Al2O3 fiber reinforced aluminium piston alloy, Materials Science and Engineering, A205 (1996) 180-186.

DOI: 10.1016/0921-5093(95)09976-x
