Magnetoimpedance of FeNi Thin Film Meanders

Abstract:

The role of the geometrical parameters was studied for thin film based [FeNi (100 nm)/Cu (3 nm)]₄/FeNi (100 nm)/Cu (500 nm)/[FeNi (100 nm)/Cu (3 nm)]₄/FeNi (100 nm) magnetoimpedance elements with open magnetic flux prepared by lithography technique. The maximum magnetoimpedance sensitivity of 17 %/Oe was obtained for meander shaped sample, exceeding the value of the maximum sensitivity of 5 %/Oe of the single stripe sample. The highest values of the magnetoimpedance were observed for relatively low frequency of order of 50 MHz convenient for technological applications. Both developed technology and obtained results can be useful for optimization of the design of miniaturized detectors of small magnetic field.

You might also be interested in these eBooks

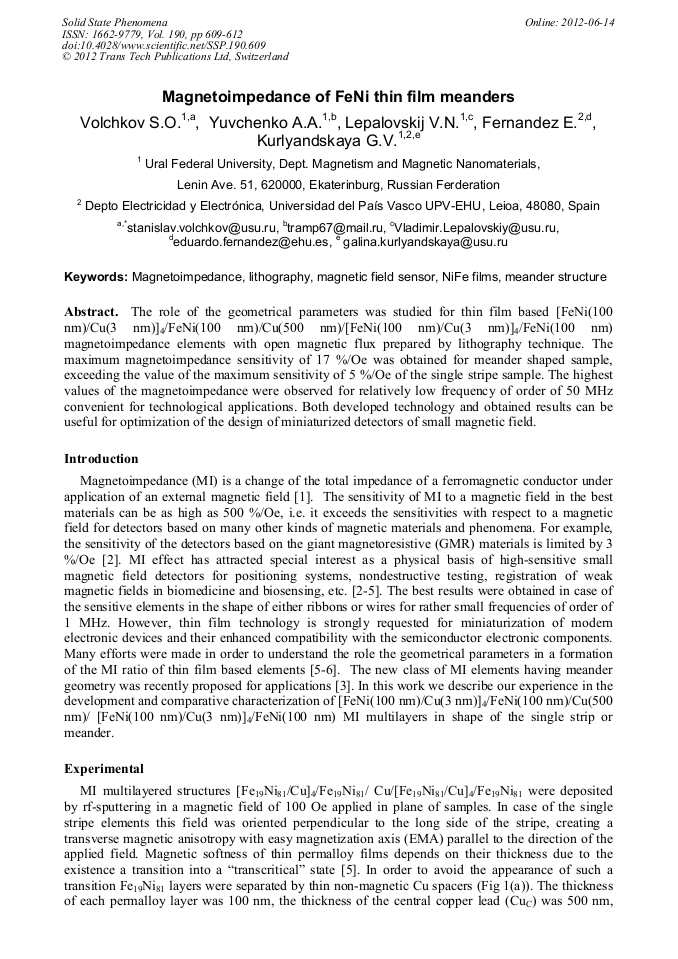

View Preview

Info:

Periodical:

Solid State Phenomena (Volume 190)

Pages:

609-612

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.190.609

Citation:

Cite this paper

Online since:

June 2012

Authors:

Stanislav O. Volchkov, A.A. Yuvchenko, V.N. Lepalovskij, Eduardo Fernandez, G.V. Kurlyandskaya

Keywords:

Lithography, Magnetic Field Sensor, Magnetoimpedance, Meander Structure, NiFe Films

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] A. S. Antonov S. N. Gadetskii, A. B. Granovskii, A. L. Diackov, V. P. Paramonov, N. S. Perov, A. F. Prokoshin, N. A. Usov, A. N. Lagar´kov, Giant magnetoimpedance in amorphous and nanocrystalline multilayers, Phys. Met. Metal. 83 (1997) 60-71.

Google Scholar

[2] G.V. Kurlyandskaya, D. De Cos, S.O. Volchkov, Magnetosensitive Transducers for Nondestructive Testing Operating on the Basis of the Giant Magnetoimpedance Effect: A Review, Russ. J. Nondestr. Test. 6 (2009) 377-398.

DOI: 10.1134/s1061830909060023

Google Scholar

[3] Z. Zhou, Y. Zhou, L. Chen, Perpendicular GMI effect in meander NiFe and NiFe/Cu/NiFe film, IEEE Trans. Magn., 44 (2008) 2252-2254.

DOI: 10.1109/tmag.2008.2001698

Google Scholar

[4] A. S. Antonov, I. T. Iakubov, The high-frequency magneto-impedance of a sandwich with transverse magnetic anisotropy, J. Phys. D: Appl. Phys. 32 (1999) 1204-1208.

DOI: 10.1088/0022-3727/32/11/304

Google Scholar

[5] G.V. Kurlyandskaya, L. Elbaile, F. Alves, B. Ahamada, R. Barrué, A.V. Svalov, V.O. Vas'kovskiy, Domain structure and magnetization process of a giant magnetoimpedance geometry FeNi/Cu/FeNi(Cu)FeNi/Cu/FeNi sensitive element, J. Phys.: Condens. Matter. 16 (2004).

DOI: 10.1088/0953-8984/16/36/021

Google Scholar

[6] G.V. Kurlyandskaya, Giant magnetoimpedance for biosensing: Advantages and shortcomings, J. Magn. Magn. Mater 321 (2009) 659-662.

DOI: 10.1016/j.jmmm.2008.11.019

Google Scholar
