Characterization of Ni75Mo25 Alloy Prepared by Mechanical Alloying and Heat Treatment

Joanna Panek; Bożena Bierska-Piech; Jolanta Niedbała

doi:10.4028/www.scientific.net/SSP.203-204.394

Paper Titles

The Fracture Morphology of Composites with Quasicrystalline Phase
p.376

Structural Studies of the Relaxed Amorphous Phase in the Fe₈₁B₁₄Nb₅ Alloy
p.380

The Study of Local Structure of Amorphous Fe-Co-B-Si-Nb Alloy by Atomic Pair Distribution Function
p.386

Mechanical Synthesis and Heat Treatment of Ni₇₅Ti₂₅ Alloy
p.390

Characterization of Ni₇₅Mo₂₅Alloy Prepared by Mechanical Alloying and Heat Treatment
p.394

Changes in the Structure of Palladium Nanograins in the Carbon Film (C-nPd) under the Influence of Hydrogen
p.398

Calculation of Electronic Structure of the K-Phase Cells which are Involved in Thermobarically Induced Epitaxial Growth of Diamond Crystals in High-Carbon Fe-Al-Alloys
p.402

Influence of the Crystallographic Orientation of CuZn30 Single Crystal on the Portevin-Le Chatelier Effect
p.406

Study of Defects Structure in Fe-Al Alloys
p.411

HomeSolid State PhenomenaSolid State Phenomena Vols. 203-204Characterization of Ni75Mo25 Alloy Prepared by...

Characterization of Ni₇₅Mo₂₅Alloy Prepared by Mechanical Alloying and Heat Treatment

Abstract:

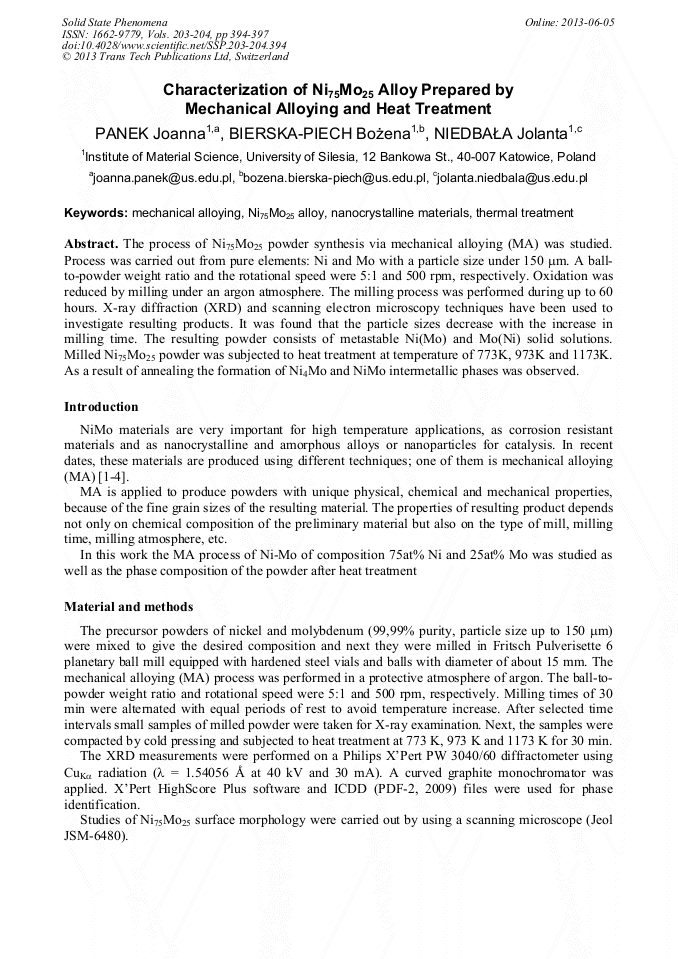

The process of Ni₇₅Mo₂₅ powder synthesis via mechanical alloying (MA) was studied. Process was carried out from pure elements: Ni and Mo with a particle size under 150 μm. A ball-to-powder weight ratio and the rotational speed were 5:1 and 500 rpm, respectively. Oxidation was reduced by milling under an argon atmosphere. The milling process was performed during up to 60 hours. X-ray diffraction (XRD) and scanning electron microscopy techniques have been used to investigate resulting products. It was found that the particle sizes decrease with the increase in milling time. The resulting powder consists of metastable Ni(Mo) and Mo(Ni) solid solutions. Milled Ni75Mo25 powder was subjected to heat treatment at temperature of 773K, 973K and 1173K. As a result of annealing the formation of Ni₄Mo and NiMo intermetallic phases was observed.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Solid State Phenomena (Volumes 203-204)

Pages:

394-397

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.203-204.394

Citation:

Cite this paper

Online since:

June 2013

Authors:

Joanna Panek, Bożena Bierska-Piech, Jolanta Niedbała

Keywords:

Mechanical Alloying, Nanocrystalline Materials, Ni₇₅Mo₂₅ Alloy, Thermal Treatment

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] G. Coco, S. Enzo, N.T. Barrett, K.J. Roberts: Phys. Rev. B, 45 (1992), p.7066

Google Scholar

[2] P. Kędzierzawski, D. Oleszak, M. Janik-Czachor: Mater. Sci. Eng, Vol. A. 300 (2001), p.105

Google Scholar

[3] L.M. Rodriguez-Valdez, I. Estrada-Guel, F. Almeraya-Calderón, M.A. Neri-Flores, A. Martinez-Villafane, R. Martinez-Sanchez: Int. J. Hydrog. Ener. 29 (2004), p.1141

Google Scholar

[4] G. Gonzalez, A. Sagarzazu, R. Villalba, J. Ochoa: J. All. Comp, 434-435 (2007), p.525

Google Scholar

[5] G.K. Williamson, W.H. Hall: Acta Metallurgica, 1(1) (1953), p.22

Google Scholar
