Nanostructured and Modulated Low-Dimensional Systems

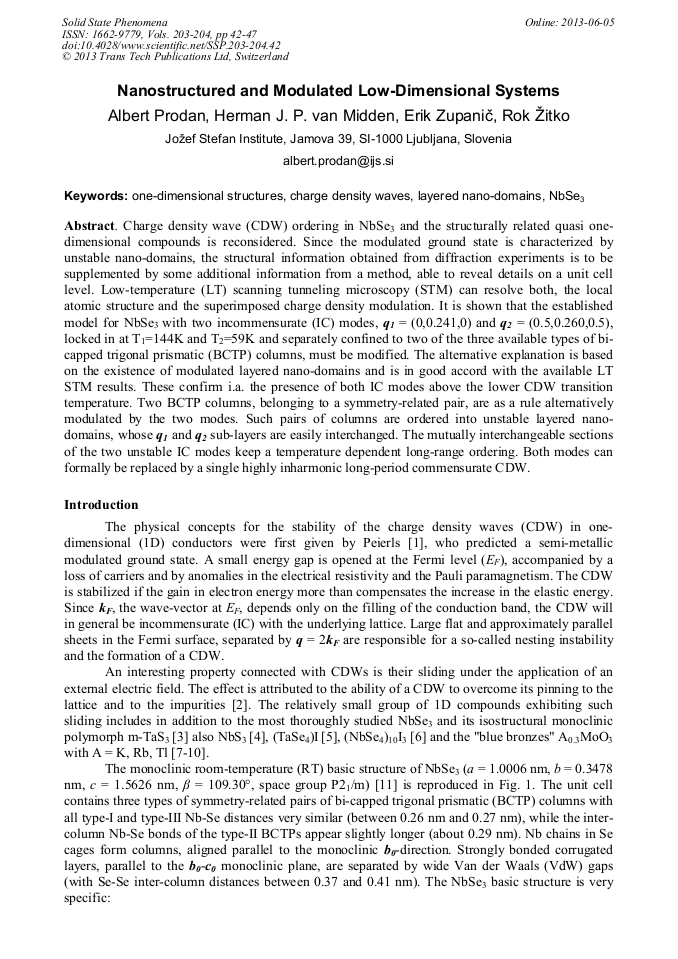

Article Preview

Abstract:

Charge density wave (CDW) ordering in NbSe3 and the structurally related quasi one-dimensional compounds is reconsidered. Since the modulated ground state is characterized by unstable nano-domains, the structural information obtained from diffraction experiments is to be supplemented by some additional information from a method, able to reveal details on a unit cell level. Low-temperature (LT) scanning tunneling microscopy (STM) can resolve both, the local atomic structure and the superimposed charge density modulation. It is shown that the established model for NbSe3 with two incommensurate (IC) modes, q1 = (0,0.241,0) and q2 = (0.5,0.260,0.5), locked in at T1=144K and T2=59K and separately confined to two of the three available types of bi-capped trigonal prismatic (BCTP) columns, must be modified. The alternative explanation is based on the existence of modulated layered nano-domains and is in good accord with the available LT STM results. These confirm i.a. the presence of both IC modes above the lower CDW transition temperature. Two BCTP columns, belonging to a symmetry-related pair, are as a rule alternatively modulated by the two modes. Such pairs of columns are ordered into unstable layered nano-domains, whose q1 and q2 sub-layers are easily interchanged. The mutually interchangeable sections of the two unstable IC modes keep a temperature dependent long-range ordering. Both modes can formally be replaced by a single highly inharmonic long-period commensurate CDW.

You might also be interested in these eBooks

Applied Crystallography XXII

Info:

Periodical:

Solid State Phenomena (Volumes 203-204)

Pages:

42-47

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.203-204.42

Citation:

Cite this paper

Online since:

June 2013

Authors:

Albert Prodan, Herman J.P. van Midden, Erik Zupanič, Rok Žitko

Keywords:

Charge Density Wave, Layered Nano-Domains, NbSe₃, One-Dimensional Structure

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2013 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] R. E. Peierls: Ann. Phys. Vol. 4 (1930), p.121.

[2] R. E. Thorne: Physics Today May (1996), p.42.

[3] A. H. Thompson, A. Zettl, G. Grüner: Phys. Rev. Lett. Vol. 47 (1981), p.64.

[4] A. Zettl, C. M. Jackson, A. Janossy, G. Grüner, A. Jacobsen, A. H. Thompson: Sol. St. Comm. Vol. 43 (1982), p.345.

[5] Z. Z. Wang, M. C. Saint-Lager, P. Monceau, M. Renard, P. Gressier, A. Meerschaut, L. Guemas, J. Rouxel: Sol. St. Comm. Vol. 46 (1983), p.325.

DOI: 10.1016/0038-1098(83)90662-2

[6] Z. Z. Wang, P. Monceau, M. Renard, P. Gressier, L. Guemas, A. Meerschaut: Sol. St. Comm. Vol. 47 (1983), p.439.

[7] J. Dumas, C. Schlenker, J. Marcus, R. Buder: Phys. Rev. Lett. Vol. 50 (1983), p.757.

[8] J. P. Pouget, S. Kagoshima, C. Schlenker, J. Marcus: J. Phys. (Paris) Lett. Vol. 44 (1983), p.113.

[9] M. Ganne, A. Boumaza, M. Dion, J. Dumas: Mat. Res. Bull. Vol. 20 (1985), p.1297.

[10] B. T. Collins, K. V. Ramanujachary, M. Greenblat: Sol. St. Comm. Vol. 56 (1985), p.1023.

[11] J. L. Hodeau, M. Marezio, C. Roncan, R. Ayroles, A. Meerschaut, J. Rouxel, P. Monceau: J. Phys. C: Solid State Phys. Vol. 11 (1978), p.4117.

DOI: 10.1088/0022-3719/11/20/009

[12] J. A. Wilson: Phys. Rev. B Vol. 19 (1979), p.6456.

[13] N. P. Ong, P. Monceau: Phys. Rev. B Vol. 16 (1977), p.3443.

[14] G. Grüner: Density Waves in Solids, Addison-Wesley, Reading, MA (1994).

[15] P. Monceau, N. P. Ong, A. M. Portis, A. Merschaut, J. Rouxel : Phys. Rev. Lett. Vol. 37 (1976), p.602.

[16] R. M. Fleming, C. C, Grimes: Phys. Rev. Lett. Vol. 42 (1979), p.1423.

[17] P. Monceau: Electronic Properties of Inorganic Quasi-One-Dimensional Matals, Part II, edited by P. Monceau, D. Reidel, Dordrecht (1985), p.139.

DOI: 10.1007/978-94-015-6923-1

[18] R. L. Withers, J. A. Wilson: J. Phys. C vol. 19 (1986), p.4809.

[19] A. Ayari, R. Danneau, H. Requardt, L. Ortega, J. E. Lorenzo, P. Monceau, R. Currat, S. Brazovskii, G. Grübel: Phys. Rev. Lett. Vol. 93 (2004), p.106404.

DOI: 10.1103/physrevlett.91.049704

[20] Y. S. Hor, Z. L. Xiao, U. Welp, Y. Ito, J. F. Mitchell, R. E. Cook, W. K. Kwok. [21] Physics and Chemistry of Low-Dimensional Inorganic Conductors, C. Schlenker, edited by J. Dumas, M. Greenblatt and S. van Smaalen (354 NATO Advanced Studies Institute Series B: Physics), Plenum, NY 81996).

DOI: 10.1007/978-1-4613-1149-2

[21] K. O'Neill, E. Slot, R. E. Thorne, H. S. J. van der Zant: Phys. Rev. Lett. Vol. 96 (2006), p.096402.

[22] A. F. Isakovic, P. G. Evans, J. Kmetko, K. Cicak, Z. Cai, B. Lai, R. E. Thorne: Phys. Rev. Lett. Vol. 96 (2006), p.046401.

DOI: 10.1103/physrevlett.96.046401

[23] K. Tsutsumi, T. Takagaki, M. Yamamoto, Y. Shiozaki, M. Ido, T. Sambongi, K. Yamaya, Y. Abe: Phys. Rev. Lett. Vol. 39 (1977), p.1675.

DOI: 10.1103/physrevlett.39.1675

[24] R. M. Fleming, D. E. Moncton, D. B. McWhan: Phys. Rev. B Vol. 18 (1978), p.5560.

[25] A. H. Moudden, J. D. Axe, P. Monceau, F. Lévy: Phys. Rev. Lett. Vol 65 (1990), p.223.

[26] S. Rouzière, S. Ravy, J. P. Pouget, R. E. Thorne: Solid State Comm. Vol. 97 (1996), p.1073.

[27] S. van Smaalen, J. L. de Boer, A. Meetsma, H. Graafsma, H.-S. Sheu, A. Darovskikh, P. Coppens, F. Lévy: Phys. Rev. B Vol. 45 (1992), p.3103.

[28] F. Devreux: J. Phys. (Paris) Vol. 43 (1982), p.1489.

[29] J. H. Ross Jr., Z. Wang, C. P. Slichter: Phys. Rev. Lett. Vol. 56 (1986), p.663.

[30] S. Suh, W. G. Clark, P. Monceau, R. E. Thorne, S. E. Brown: Phys. Rev. Lett. Vol. 101 (2008), p.136407.

[31] J. Schäfer, Eli Rotenberg, S. D. Kevan, P. Blaha, R. Claessen, R. E. Thorne: Phys. Rev. Lett. Vol. 87 (2001), p.196403.

[32] J. Schäfer, M. Sing, R. Claessen, Eli Rotenberg, X. J. Zhou, R. E. Thorne, S. D. Kevan: Phys. Rev. Lett. Vol. 91 (2003), p.066401.

[33] K. K. Fung, J. W. Steeds: Phys. Rev. Lett. Vol. 45 (1980), p.1696.

[34] Z. Dai, C. G. Slough, R. V. Coleman, Phys. Rev. Lett. Vol. 66 (1991), p.1318.

[35] S. van Smaalen, J. L. de Boer, P. Coppens, H. Graafsma, Phys. Rev. Lett. Vol. 67 (1991), p.1471.

[36] Z. Dai, C. G. Slough, R. V. Coleman, Phys. Rev. Lett. Vol. 67 (1991), p.1472.

[37] C. Brun, Z. Z. Wang, P. Monceau. J. Phys. IV (France) Vol. 131 (2005), p.225.

[38] C. Brun, Z. Z. Wang, P. Monceau: Phys. Rev. B Vol. 80 (2009), p.045423.

[39] C. Brun, Z. Z. Wang, P. Monceau, S. Brazovskii: Phys. Rev. Lett. Vol. 104 (2010), p.256403.

[40] S. Brazovskii, C. Brun, Z.-Z. Wang, P. Monceau, Phys. Rev. Lett. Vol. 108 (2012), p.096801.

[41] A. Prodan, H. J. P. van Midden, R. Žitko, E. Zupanič, J. C. Bennet, and H. Böhm: Sol. State Comm. Vol. 150 (2010), p.2134.

DOI: 10.1016/j.ssc.2010.09.010

[42] A. Prodan, N. Jug, H. J. P. van Midden, H. Böhm, F. W. Boswell, J. C. Bennett: Phys. Rev. B Vol. 64 (2001), p.115423.

[43] R. M. Fleming, C. H. Chen, D. E. Moncton: J. Phys. (Paris) Vol. 44 (1983) p. C3-1651.

[44] H. Lüth, Surfaces and Interfaces of Solid Materials, Springer, Berlin, 1995, p.207.

[45] S. J. L. Billinge, I. Levin, Science Vol. 316 (2007), p.561.

[46] M. J. Cliffe, M. T. Dove, D. A. Drabold, A. L. Goodwin: Phys. Rev. Lett. Vol. 104 (2010), p.125501.
