A Project of a System for Measuring Child's Foot Pressure on a Shoe Sole

Marcin Apostoł; Marcin Siwiecki

doi:10.4028/www.scientific.net/SSP.208.93

Paper Titles

Model Testing of the 2^nd Phase of Die Casting Process
p.52

FEM Analysis of a Cantilever Sandwich Beam with MR Fluid Based on ANSYS
p.63

Diagnosis of Supporting Structures of HV Lines Using Magneto-Mechanical Effects
p.70

Experimental Tests of an Electromechanical Transducer of Reverse Linear Motion into Electrical Energy
p.86

A Project of a System for Measuring Child's Foot Pressure on a Shoe Sole
p.93

The Application of Visual Evoked Potentials in Brain-Computer Interface
p.102

Design and Modeling of FEM Seals with Controlled Clamp Spring Elements
p.109

Interval Type-2 Fuzzy Logic Control of DM Series Shape Memory Actuator
p.116

LQG Control of the Smart Truss with the Piezoelectric Active Members
p.125

HomeSolid State PhenomenaSolid State Phenomena Vol. 208A Project of a System for Measuring Child's Foot...

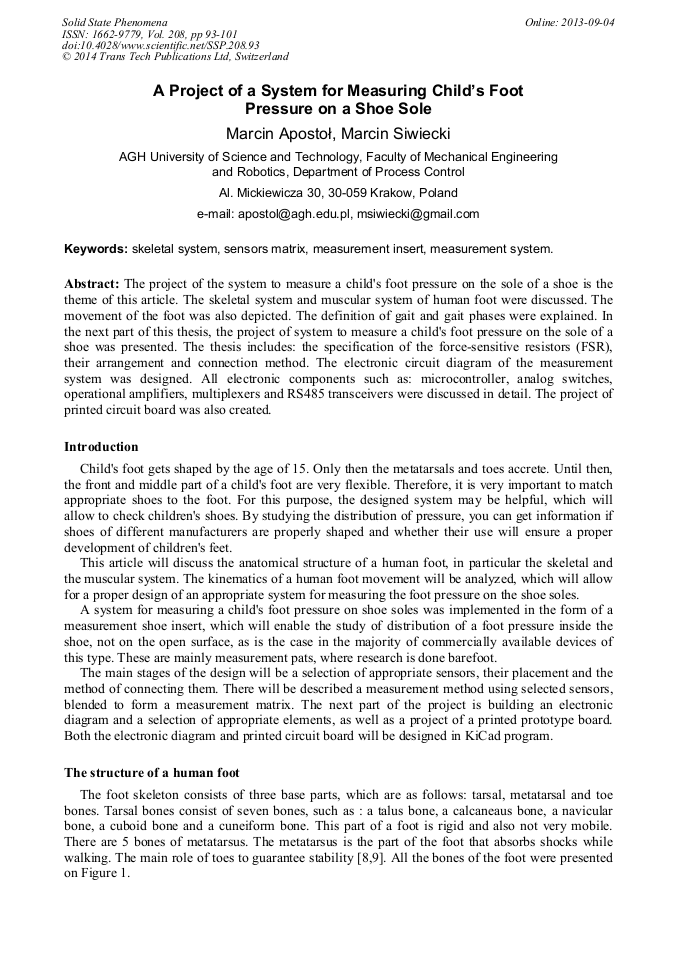

A Project of a System for Measuring Child's Foot Pressure on a Shoe Sole

Abstract:

The project of the system to measure a child's foot pressure on the sole of a shoe is the theme of this article. The skeletal system and muscular system of human foot were discussed. The movement of the foot was also depicted. The definition of gait and gait phases were explained. In the next part of this thesis, the project of system to measure a child's foot pressure on the sole of a shoe was presented. The thesis includes: the specification of the force-sensitive resistors (FSR), their arrangement and connection method. The electronic circuit diagram of the measurement system was designed. All electronic components such as: microcontroller, analog switches, operational amplifiers, multiplexers and RS485 transceivers were discussed in detail. The project of printed circuit board was also created.
