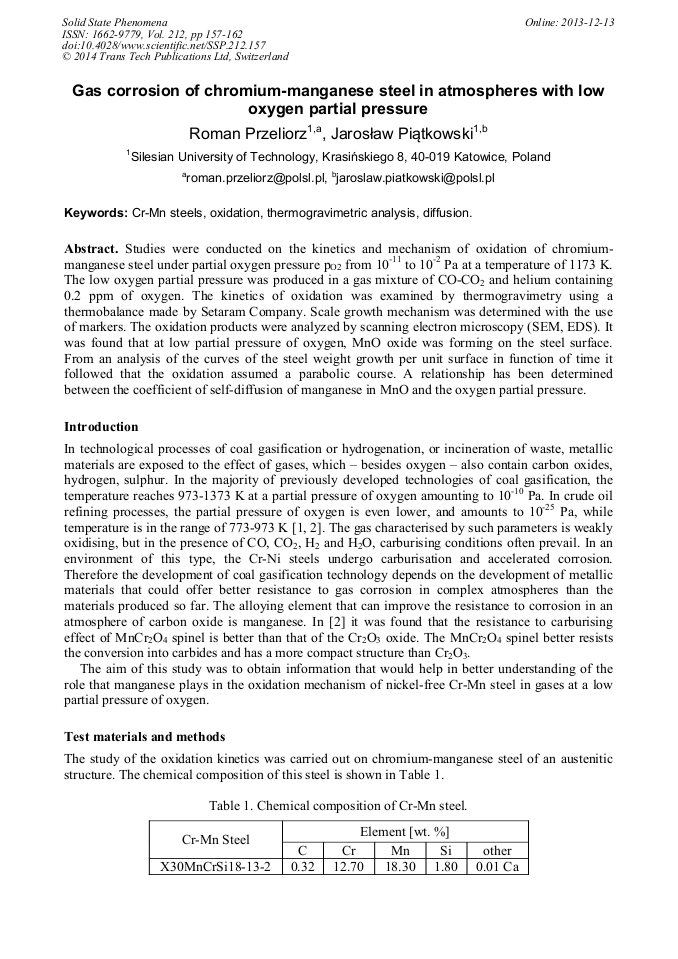

Gas Corrosion of Chromium-Manganese Steel in Atmospheres with Low Oxygen Partial Pressure

Abstract:

Studies were conducted on the kinetics and mechanism of oxidation of chromium-manganese steel under partial oxygen pressure p_O2 from 10^-11 to 10^-2 Pa at a temperature of 1173 K. The low oxygen partial pressure was produced in a gas mixture of CO-CO₂ and helium containing 0.2 ppm of oxygen. The kinetics of oxidation was examined by thermogravimetry using a thermobalance made by Setaram Company. Scale growth mechanism was determined with the use of markers. The oxidation products were analyzed by scanning electron microscopy (SEM, EDS). It was found that at low partial pressure of oxygen, MnO oxide was forming on the steel surface. From an analysis of the curves of the steel weight growth per unit surface in function of time it followed that the oxidation assumed a parabolic course. A relationship has been determined between the coefficient of self-diffusion of manganese in MnO and the oxygen partial pressure.

• Periodical: Solid State Phenomena (Volume 212)
• Pages: 157-162
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.212.157
• Online since: December 2013
• Authors: Roman Przeliorz, Jaroslaw Piątkowski
• Keywords: Cr-Mn Steels, Diffusion, Oxidation, Thermogravimetric Analysis (TGA)

References

[1] K. Natansen, Corrosion Protection, Corrosion 2002, Cracov (2002) 69-79.

[2] M. Danielewski, Chemistry 1, Cracov (1985).

[3] L.B. Pfeil, Journal Iron and Steel Institute 119 (1929).

[4] S. Mrowec, Journal of Materials Science 9 (1974) 1961-(1976).

[5] K. Fueki, J.B. Wagner, Electrochem. Society 112 (1965) 384-388.

[6] S. Mrowec, A. Stokłosa, Oxidation of Metals 3 (1971) 291-311.

[7] C. Wagner, Atom Movements A.S.M., Cleveland (1951) 153.

[8] S. Mrowec, K. Przybylski, Oxidation of Metals 11, No. 6 (1977).

[9] S. Mrowec, Z. Grzesik, Journal of Physics and Chemistry of Solids 65 (2004) 1651-56.

[10] P. Kofstad, Oxidation of Metals 19 (1983).
