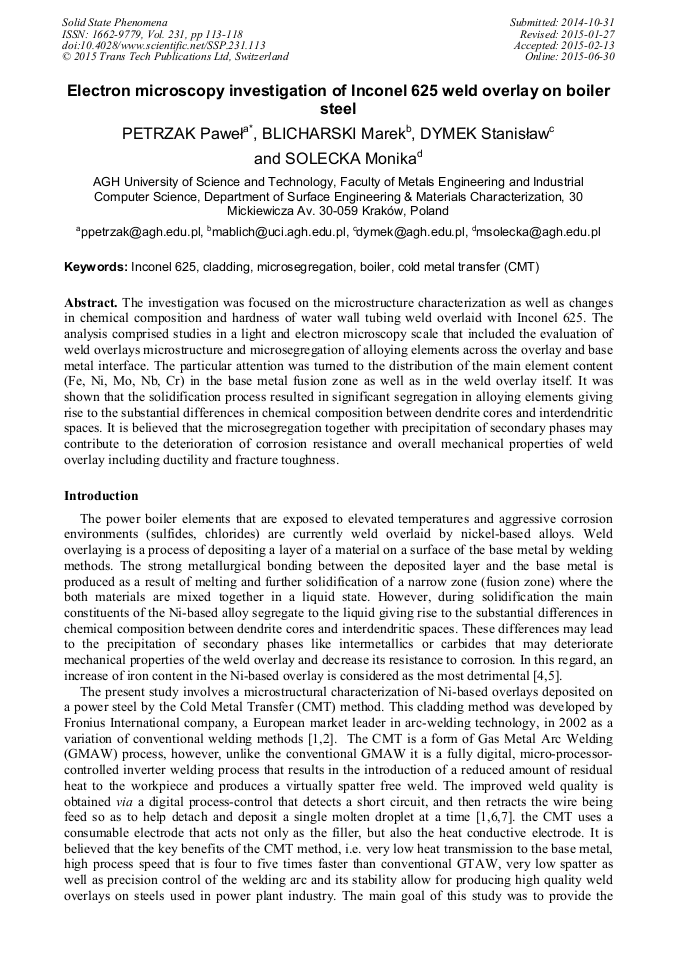

Electron Microscopy Investigation of Inconel 625 Weld Overlay on Boiler Steel

Abstract:

The investigation was focused on the microstructure characterization as well as changes in chemical composition and hardness of water wall tubing weld overlaid with Inconel 625. The analysis comprised studies in a light and electron microscopy scale that included the evaluation of weld overlays microstructure and microsegregation of alloying elements across the overlay and base metal interface. The particular attention was turned to the distribution of the main element content (Fe, Ni, Mo, Nb, Cr) in the base metal fusion zone as well as in the weld overlay itself. It was shown that the solidification process resulted in significant segregation in alloying elements giving rise to the substantial differences in chemical composition between dendrite cores and interdendritic spaces. It is believed that the microsegregation together with precipitation of secondary phases may contribute to the deterioration of corrosion resistance and overall mechanical properties of weld overlay including ductility and fracture toughness.

• Periodical: Solid State Phenomena (Volume 231)
• Pages: 113-118
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.231.113
• Online since: June 2015
• Authors: Paweł Petrzak*, Marek Blicharski, Stanisław Dymek, Monika Solecka
• Keywords: Boiler, Cladding, Cold Metal Transfer (CMT), Inconel 625 Alloy, Microsegregation

References

[1] Information on http: /www. fronius. com [access: 16 January 2014].

[2] C.G. Pickin, S.W. Williams, M. Lunt, Characterisation of the cold metal transfer (CMT) process and its application for low dilution cladding, J. Mater. Process. Tech. 211 (2011) 496-502.

DOI: 10.1016/j.jmatprotec.2010.11.005

[3] J.N. DuPont, J.C. Lippold, S.D. Kiser, Welding metallurgy and weldability of nickel-base alloys. John Villey & Sons, New Jersey (2009).

DOI: 10.1002/9780470500262

[4] M. Rozmus-Górnikowska, M. Blicharski, J. Kusiński, L. Kusiński, M. Marszycki, Influence of boiler pipe cladding techniques on their microstructure and properties, Arch. Metall. Mater. 58 (2013) 1093-1096.

DOI: 10.2478/amm-2013-0131

[5] J. Adamiec, High temperature corrosion of power boiler components cladded with nickel alloys, Mater. Character. 60 (2009) 1093-1099.

DOI: 10.1016/j.matchar.2009.03.017

[6] H.T. Zhang, J.C. Feng, P. He, B.B. Zhang, J.M. Chen, L. Wang, The arc characteristic and metal transfer behaviour of cold metal transfer and its use in joining aluminum to zinc coated steel, Mat. Sci. Eng. A 499 (2009) 111-113.

DOI: 10.1016/j.msea.2007.11.124

[7] J. Bruckner, CMT method – revolution in welding technology, Przegląd Spawalnictwa 7-8 (2009) 24-28 (in Polish).
