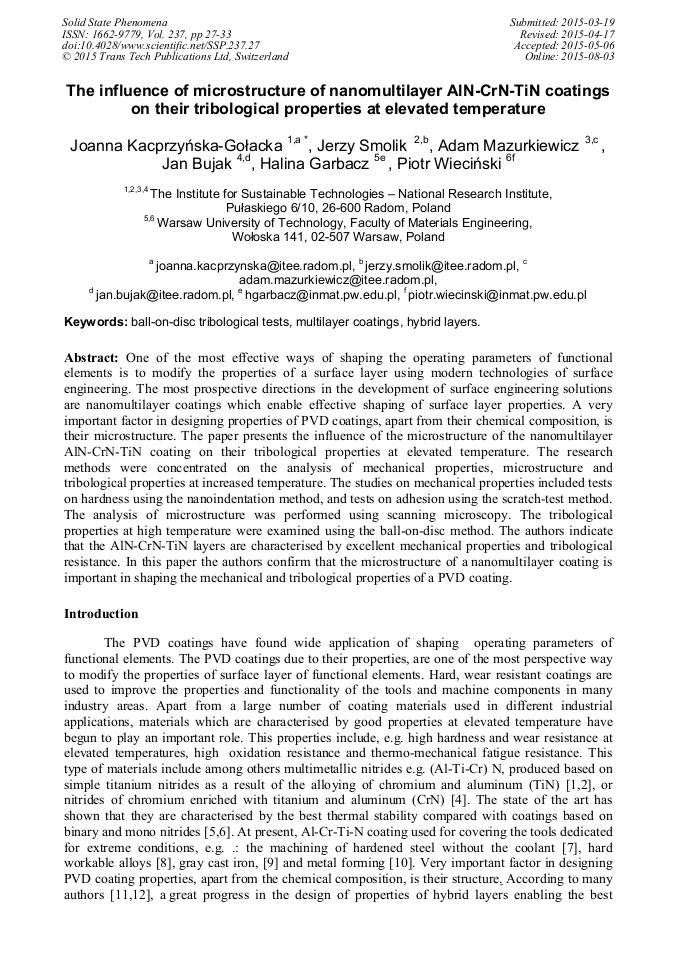

The Influence of Microstructure of Nanomultilayer AlN-CrN-TiN Coatings on their Tribological Properties at Elevated Temperature

Abstract:

One of the most effective ways of shaping the operating parameters of functional elements is to modify the properties of a surface layer using modern technologies of surface engineering. The prospective directions in the development of surface engineering solutions are nanomultilayer coatings that enable effective shaping of surface layer properties. A very important factor in designing properties of PVD coatings, apart from their chemical composition, is their microstructure.The paper presents the influence of the microstructure of the nanomultilayer AlN-CrN-TiN coating on their tribological properties at elevated temperatures. The research methods were concentrated on the analysis of mechanical properties, microstructure, and tribological properties at increased temperatures. The studies on mechanical properties included tests on hardness using the nanoindentation method and tests on adhesion using the scratchtest method. The analysis of microstructure was performed using scanning microscopy. The tribological properties at high temperature were examined using the ball-on-disc method. The authors indicate that the AlN-CrN-TiN layers are characterised by excellent mechanical properties and tribological resistance. In this paper, the authors confirm that the microstructure of a nanomultilayer coating is important in shaping the mechanical and tribological properties of a PVD coating.

• Periodical: Solid State Phenomena (Volume 237)
• Pages: 27-33
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.237.27
• Online since: August 2015
• Authors: Joanna Kacprzyńska-Gołacka*, Jerzy Smolik, Adam Mazurkiewicz, Jan Bujak, Halina Garbacz, Piotr Wieciński
• Keywords: Ball-on-Disc Tribological Tests, Hybrid Layers, Multilayer Coatings

References

[1] Kovalev, A.I., Wainstein, D. Dl., Rashkovskiy, A.Y., Fox-Rabinovich, A.Y., Yamamoto, K., Veldhuins, S., Aguirre, Beake, B.D., Impact of Al and Cr alloying in TiN-based PVD coatings on cutting performance during of hard to cut materials, Vacuum 84 (2010).

DOI: 10.1016/j.vacuum.2009.06.019

[2] Harris, S.G., Doyle, E.D., Vlasveld A.C., Andy, J., Long, J.M., Quick, D., Influence of chromium content on dry machining performance of cathodic arc evaporated TiAlN coatings, Wear 254 (2003) 185-194.

DOI: 10.1016/s0043-1648(02)00290-9

[3] Yang, S., Wiemann, E., Teer, D.G., The properties and performance of Cr-based multilayer nitride hard coatings using unbalanced magnetron sputtering and elemental metal targets, Surf. Coat. Technol. 188-189 (2004) 662-668.

DOI: 10.1016/j.surfcoat.2004.07.032

[4] P.L. Tam, Z.F. Zhou, P.W. Shum, K.Y. Li. Structural, mechanical, and tribological studies of Cr-Ti-Al. -N coating with different chemical composition, Thin Solid Films 516(2008)5725-5731.

DOI: 10.1016/j.tsf.2007.07.127

[5] Alberdi A, Marin M., Diaz B., Sancjez O., Escobar Galindo R. Wear resistance of titanum-aluminium-chromium-nitride nanocomposite thin film, Vacuum 81(2007)1453-1456.

DOI: 10.1016/j.vacuum.2007.04.024

[6] V. K. Chauhan, S. K. Rawal, A reviev paper on tribological and mechqanical proerties of ternary nitride based coatings, Procedia Technology 14(2014)430-347.

DOI: 10.1016/j.protcy.2014.08.055

[7] Lu, L., Wang, Q., Chen, B., Ao, Y., Yu, D., Wang, Ch., Wu, S., Kim, K., Microstructure and cutting performance of CrTiAlN coating for high-speed dry milling, Trans. Nonferrous Met. Soc. China 24 (2014) 1000-1806.

DOI: 10.1016/s1003-6326(14)63256-8

[8] Fox-Rabinovich, G.S., Kowalew, A.I., Aguire, M.H., Beadke, B.D., Yamamoto, K., Veldhuis, S.C. Endrido, J.L., Wainstein, D.L., Rashkovsky, A.Y., Design and performance of TiAlN and TiAlCrN caoatings for machining of hard materials, Surf. Coat. Technol. 204 (2009).

DOI: 10.1016/j.surfcoat.2009.08.021

[9] Harris, S.G., Doyle, E.D., Vlasveld A.C., Andy, J., Long, J.M., Quick, D., Influence of chromium content on dry machining performance of cathodic arc evaporated TiAlN coatings, Wear 254 (2003) 185-194.

DOI: 10.1016/s0043-1648(02)00290-9

[10] Smolik J., Mazurkiewicz A., Meller A., Increase of forming dies durability for production of steel synchronizer rings, Innovative Technological Solutions for Sustainable Development, edited by A. Mazurkiewicz, ITeE-PIB Radom 2010, ISBN 978-83-7204-955-1, pp.183-195.

[11] Veprek S., Veprk-Hejman M.J.G., Industrial applications of superhard nanocomposite coathings, Surfach and Coathings Technology, 202 (2008) 5063.

[12] Kacprzyńska-Gołacka J., Smolik J., Mazurkiewicz A., The comparison of antiwear and fatigue properties in higher temperature for PN+CrN and PN+AlCrTiN layer composites, International Journal of Microstructure and Materials Properties, 9(2014).

DOI: 10.1504/ijmmp.2014.061053
