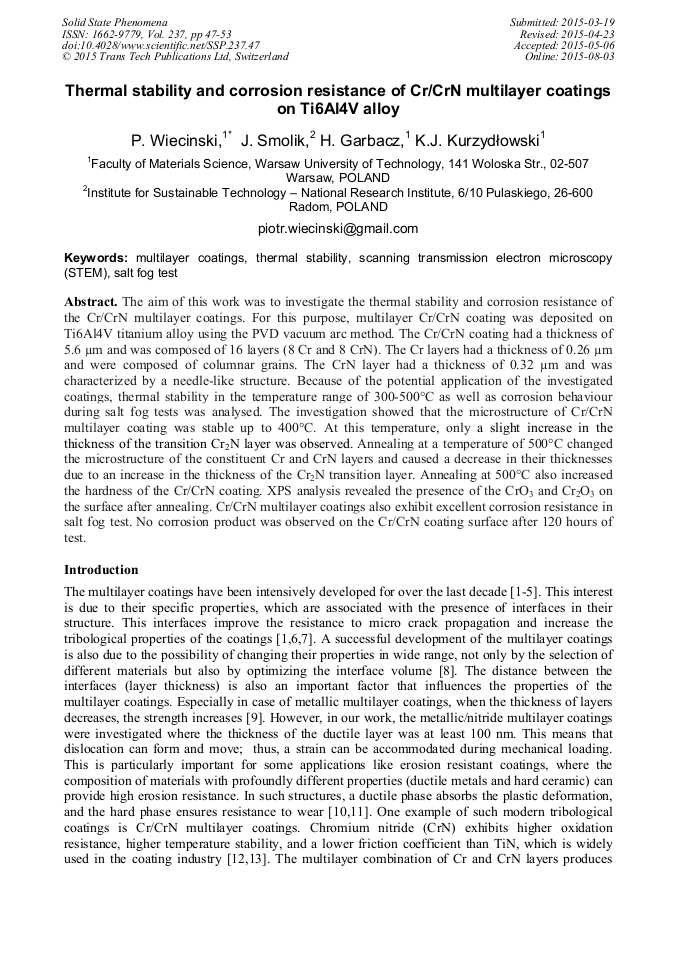

Thermal Stability and Corrosion Resistance of Cr/CrN Multilayer Coatings on Ti6Al4V Alloy

Abstract:

The aim of this work was to investigate thermal stability and corrosion resistance of the Cr/CrN multilayer coatings. For this purpose, multilayer Cr/CrN coating was deposited on Ti6Al4V titanium alloy using PVD vacuum arc method. The Cr/CrN coating has thickness of 5.6 μm and was composed of 16 layers (8 Cr and 8 CrN). The Cr layers has thickness of 0.26 μm and were composed of columnar grains. CrN layer has thickness of 0.32 μm and were characterized by needle-like structure. Because of the potential application of the investigated coatings, thermal stability in temperature range of 300-500°C as well as corrosion behavior during salt fog test were analyzed.The investigation showed that microstructure of Cr/CrN multilayer coating was stable up to 400°C. In this temperature only a slight increase of thickness of transition Cr₂N layer was observed. Annealing at temperature of 500°C changed the microstructure of the constituent Cr and CrN layers and caused decrease of their thicknesses due to increase of thickness of Cr₂N transition layer. Annealing at 500°C also increased the hardness of Cr/CrN coating. XPS analysis revealed the presence of the CrO₃ and Cr₂O₃ on the surface after annealing. Cr/CrN multilayer coatings exhibit also excellent corrosion resistant in salt fog test. No corrosion products was observed on the Cr/CrN coating surface after 120 hour of test.

• Periodical: Solid State Phenomena (Volume 237)
• Pages: 47-53
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.237.47
• Online since: August 2015
• Authors: Piotr Wieciński*, Jerzy Smolik, Halina Garbacz, Krzysztof Jan Kurzydłowski
• Keywords: Multilayer Coatings, Salt Fog Test, Scanning Transmission Electron Microscopy (STEM), Thermal Stability

References

[1] H. Holleck, V. Schier, Multilayer PVD coatings for wear protection, Surf. Coat. Technol. 76-77 (1995) 328-336.

DOI: 10.1016/0257-8972(95)02555-3

[2] S. Hogmark, S. Jacobson, M. Larson, Design and evaluation of tribological coatings, Wear 246 (2000) 20-33.

DOI: 10.1016/s0043-1648(00)00505-6

[3] T. Polcar, R. Martinez, T. Vitu, L. Kopecky, R. Rodriguez, A. Cavaleiro, High temperature tribology of CrN and multilayered Cr/CrN coatings, Surf. Coat. Technol. 203 (2009) 3254-3259.

DOI: 10.1016/j.surfcoat.2009.04.005

[4] B. Borawski, J. Singh, J.A. Todd, D.E. Wolfe, Multi-layer coating design architecture for optimum particulate erosion, Wear 271 (2011) 2782-2792.

DOI: 10.1016/j.wear.2011.05.035

[5] D.M. Marulanda, J.J. Olaya, U. Piratoba, A. Marino, E. Camps, The effect of bilayer period and degree of unbalancing on magnetron sputtered Cr/CrN nano-multilayer wear and corrosion, Thin Solid Films 519 (2011) 1886-1893.

DOI: 10.1016/j.tsf.2010.10.010

[6] E. Martinez, J. Romero, A. Lousa, J. Esteve, Wear behavior of nanometric CrN/Cr multilayers, Surf. Coat. Technol. 163-164 (2003) 571-577.

DOI: 10.1016/s0257-8972(02)00664-3

[7] T. Burakowski, T. Wierzchoń, Surface Engineering of Metals, CRC Press LLC, Boca Raton, (1999).

[8] M. Stueber, H. Holleck, H. Leiste, K. Seemann, S. Ulrich, C. Ziebert, Concepts for the design of advanced nanoscale PVD multilayer protective thin films, J. Alloy Compd. 483 (2009) 321-333.

DOI: 10.1016/j.jallcom.2008.08.133

[9] A Misra, J.P. Hirth, R.G. Hoagland, Length-scale-dependent deformation mechanisms in incoherent metallic multilayered composites, Acta Mater. 53 (2005) 4817-4824.

DOI: 10.1016/j.actamat.2005.06.025

[10] B. Borawski, J.A. Todd, J. Singh, D.E. Wolfe, The influence of ductile interlayer material on the particle erosion resistance of multilayered TiN based coatings, Wear 271 (2011) 2890-2898.

DOI: 10.1016/j.wear.2011.06.004

[11] M. Berger, U. Wiklund, M. Eriksson. H. Engqvist, S. Jacobson, The multilayer effect in abrasion – optimising the combination of hard and tough phases, Surf. Coat. Tech. 116-119 (1999) 1138-1144.

DOI: 10.1016/s0257-8972(99)00151-6

[12] X.T. Zung, S. Zhang, C.Q. Sun, Y.C. Liu, Nanometric-layered CrN/TiN thin films: mechanical strength and thermal stability, Thin Solid Films 424 (2003) 99–102.

DOI: 10.1016/s0040-6090(02)00921-5

[13] Y.C. Chim, X.Z. Ding, X.T. Zeng, S. Zhang, Oxidation resistance of TiN, CrN, TiAlN and CrAlN coatings deposited by lateral rotating cathode arc, Thin Solid Films 517 (2009) 4845–4849.

DOI: 10.1016/j.tsf.2009.03.038

[14] A. Lousa, J. Romero, E. Martinez, J. Esteve, F. Montala, L. Carreras, Multilayered chromium/chromium nitride coatings for use in pressure die casting, Surf. Coat. Technol. 146-147 (2001) 268-73.

DOI: 10.1016/s0257-8972(01)01476-1

[15] G-H. Song, X-P. Yang, G-L. Xiong, Z. Lou, L-J. Chen, The corrosive behavior of Cr/CrN multilayer coatings with different modulation periods, Vacuum 89 (2013) 136-141.

DOI: 10.1016/j.vacuum.2012.02.046

[16] P. Wiecinski, J. Smolik, H. Garbacz, K.J. Kurzydlowski, Microstructure and mechanical properties of nanostructure multilayer CrN/Cr coatings on titanium alloy, Thin Solid Films 519 (2011) 4069-4073.

DOI: 10.1016/j.tsf.2011.01.183

[17] P. Wiecinski, J. Smolik, H. Garbacz, K.J. Kurzydlowski, Failure and deformation mechanisms during indentation in nanostructured Cr/CrN multilayer coatings, Surf. Coat. Technol. 240 (2014) 23–31.

DOI: 10.1016/j.surfcoat.2013.12.006

[18] P. Wiecinski, J. Smolik, H. Garbacz, K.J. Kurzydlowski, Erosion resistance of the nanostructured Cr/CrN multilayer coatings on Ti6Al4V alloy, Vacuum 107 (2014) 277-283.

DOI: 10.1016/j.vacuum.2014.02.024
