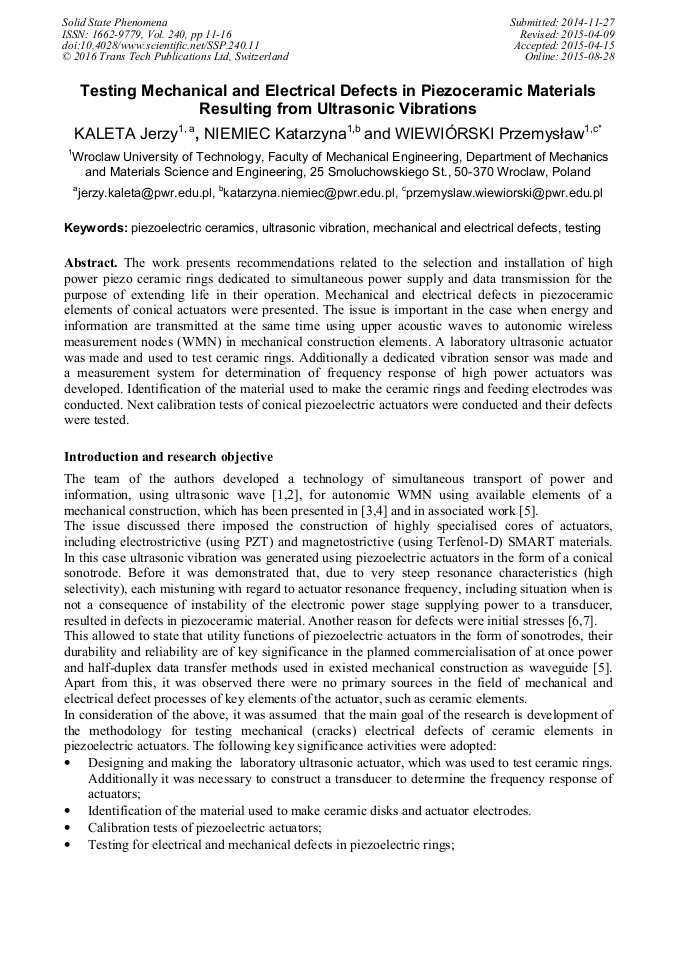

Testing Mechanical and Electrical Defects in Piezoceramic Materials Resulting from Ultrasonic Vibrations

Abstract:

The work presents recommendations related to the selection and installation of high power piezo ceramic rings dedicated to simultaneous power supply and data transmission for the purpose of extending life in their operation. Mechanical and electrical defects in piezoceramic elements of conical actuators were presented. The issue is important in the case when energy and information are transmitted at the same time using upper acoustic waves to autonomic wireless measurement nodes (WMN) in mechanical construction elements. A laboratory ultrasonic actuator was made and used to test ceramic rings. Additionally a dedicated vibration sensor was made and a measurement system for determination of frequency response of high power actuators was developed. Identification of the material used to make the ceramic rings and feeding electrodes was conducted. Next calibration tests of conical piezoelectric actuators were conducted and their defects were tested.

• Periodical: Solid State Phenomena (Volume 240)
• Pages: 11-16
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.240.11
• Online since: August 2015
• Authors: Jerzy Kaleta*, Katarzyna Niemiec, Przemysław Wiewiórski
• Keywords: Electrical Defects, Mechanical Defects, Piezoelectric Ceramics, Testing, Ultrasonic Vibration

References

[1] Ottman, G. K., Hofmann, H. F., Bhatt, A. C., & Lesieutre, G. A. (2002). Adaptive piezoelectric energy harvesting circuit for wireless remote power supply. Power Electronics, IEEE Transactions on, 17(5), ss. 669-676.

DOI: 10.1109/tpel.2002.802194

[2] Roes, M. G. L., Hendrix, M. A. M., & Duarte, J. L. (2011, November). Contactless energy transfer through air by means of ultrasound. In IECON 2011-37th Annual Conference on IEEE Industrial Electronics Society IEEE, ss. 1238-1243.

DOI: 10.1109/iecon.2011.6119486

[3] Kaleta J., Smart magnetic materials. Structure, manufacturing, testing, properties, application (original in Polish: Materiały magnetyczne Smart. Budowa, wytwarzanie, badanie właściwości, zastosowanie). Publishing House of Wroclaw University of Technology, Wrocław (2013).

[4] Kaleta J., Kot K., Mech R., Wiewiórski P., The use of magnetostrictive cores for the vibrations generation and energy harvesting from vibration in the selected frequencies of work. Key Engineering Materials. 2014, vol. 598, ss. 75-80.

DOI: 10.4028/www.scientific.net/kem.598.75

[5] Kaleta J., Lewandowski D., Wiewiórski P., Application of vibration for energy data transfer in mechanical constructions; Energy Harvesting, In Solid State Phenomena, volume 224, (2015).

DOI: 10.4028/www.scientific.net/ssp.224.249

[6] Kaleta J, Wiewiórski P, Rapid demagnetization of neodymium magnets, due to mechanical shock, as a pulse power supply for microprocessor system. IRF 2013, Funchal, Portugal, 23-27 June (2013).

[7] Kaleta J., Mech R., Wiewiórski P., System of magnetostrictive actuator for energy harvesting from ultrasonic wave, 30th Danubia-Adria, Primošten, Croatia, (2013).
