Determination of Damage to the Piezoelectric Sensor by Measuring the Electrical Capacitance

Abstract:

This work presents testing mechanical defects of MFC piezoelectric transducers. The issue is important when piezoelectric transducer is used as eg. strain sensor. Repeatability of measurements is a goal, which can be obtained only if transducer has the same physical properties in every measurement. One way to determine damaged part of the sensor is measuring capacitance of MFC transducer. A couple of tests were performed to determine capacitance under non-destroying cyclic loading, and with loads causing PZT failure. Relation of capacity and load level was also investigated. All tests were validated with results from traditional resistive strain gauge

You might also be interested in these eBooks

26th Symposium on Experimental Mechanics of Solids

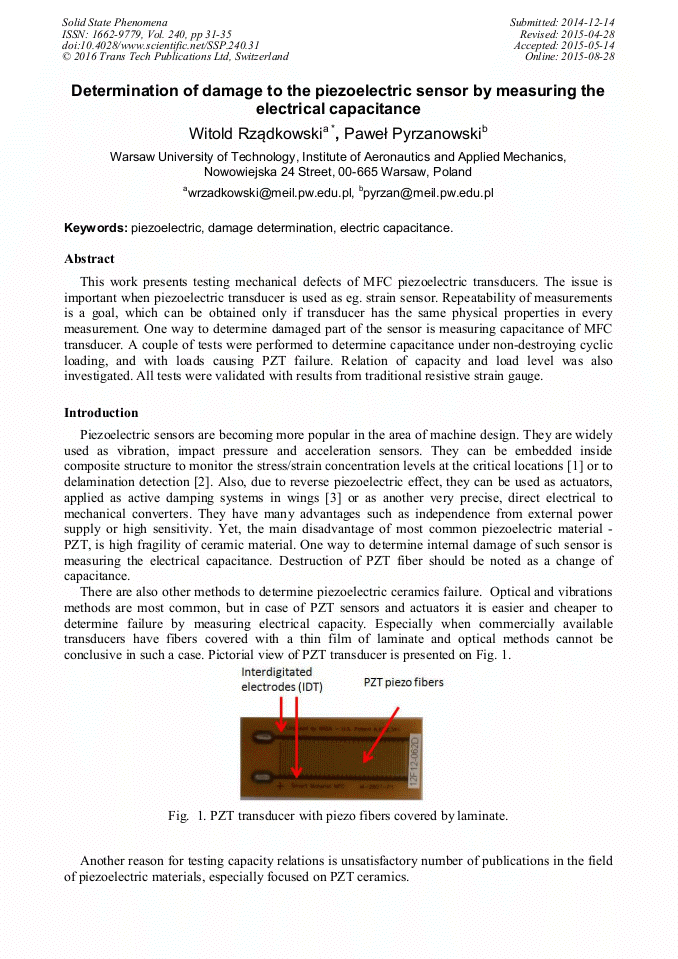

View Preview

Info:

Periodical:

Solid State Phenomena (Volume 240)

Pages:

31-35

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.240.31

Citation:

Cite this paper

Online since:

August 2015

Authors:

Witold Rządkowski*, Paweł Pyrzanowski

Keywords:

Damage Determination, Electric Capacitance, Piezoelectric

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] H. P. Konka, M. A. Wahab, K. Lian, Piezoelectric ﬁber composite transducers for health monitoring in composite, Sensor and Actuators A 194 (2013) 84-94.

DOI: 10.1016/j.sna.2012.12.039

Google Scholar

[2] C. M. Yeum, H. Sohn, J. B. Ihn, H. J. Lim, Instantaneous delamination detection in a composite plate using a dual piezoelectric transducer network , Composite Structures 94 (2012), 3490-3499.

DOI: 10.1016/j.compstruct.2012.06.003

Google Scholar

[3] R. Paradies, P. Ciresa, Active wing design with integrated ﬂight control using piezoelectric macro ﬁber composites, Smart Materials and Structures (2009).

DOI: 10.1088/0964-1726/18/3/035010

Google Scholar

[4] W. Rządkowski, M. Kowalik, K. Suprynowicz, M. Obszański, P. Pyrzanowski, Comparison of piezo and resistive strain gauge in high and low frequency loading, 30th Symposium on Advances in Experimental Mechanics (2013) 306-307.

Google Scholar

[5] M. Kowalik, K. Suprynowicz, M. Obszański, W. Rządkowski, P. Pyrzanowski, Piezoelectric strain sensor local and global stiffness influence on glass fiber reinforced composite, 30th Symposium on Advances in Experimental Mechanics (2013) 103-104.

DOI: 10.12913/22998624/59091

Google Scholar

[6] K. Suprynowicz, M. Kowalik, M. Obszański, W. Rządkowski, P. Pyrzanowski, Glass fiber reinforced composite sample's stiffness using Digital Image Correlation, 30th Symposium on Advances in Experimental Mechanics (2013) 104-105.

Google Scholar
