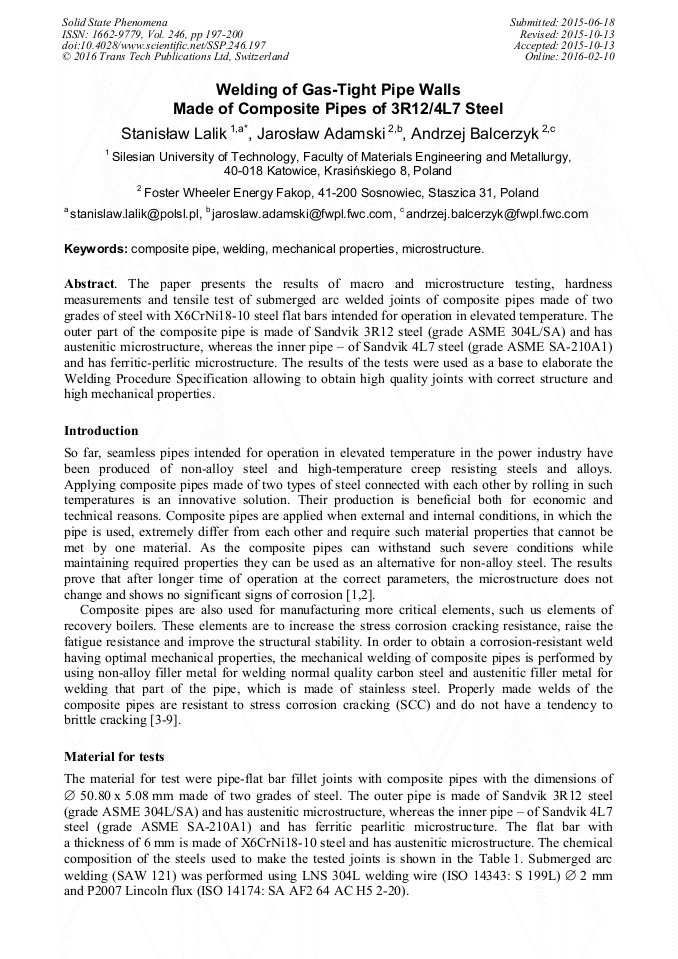

Welding of Gas-Tight Pipe Walls Made of Composite Pipes of 3R12/4L7 Steel

Abstract:

The paper presents the results of macro and microstructure testing, hardness measurements and tensile test of submerged arc welded joints of composite pipes made of two grades of steel with X6CrNi18-10 steel flat bars intended for operation in elevated temperature. The outer part of the composite pipe is made of Sandvik 3R12 steel (grade ASME 304L/SA) and has austenitic microstructure, whereas the inner pipe – of Sandvik 4L7 steel (grade ASME SA-210A1) and has ferritic pearlitic microstructure. The results of the tests were used as a base to elaborate the Welding Procedure Specification allowing to obtain high quality joints with correct structure and high mechanical properties.

• Periodical: Solid State Phenomena (Volume 246)
• Pages: 197-200
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.246.197
• Online since: February 2016
• Authors: Stanisław Lalik*, Jarosław Adamski, Andrzej Balcerzyk
• Keywords: Composite Pipe, Mechanical Properties, Microstructure, Welding

References

[1] J. Kazanecki, Manufacturing of seamless tubes (in Polish), Ed. AGH, Kraków, (2003).

[2] Sandvik 3R12/4L7 Composite tubes for recovery boilers and other boiler applications, Sandvik Materials Technology, (2012).

[3] A. Hernas, Creep-resistance of steels and alloys (in Polish), Ed. House of Publishing of Silesian University of Technology, Gliwice, (1999).

[4] A. Hernas, J. Pasternak, S. Fudali, J. Witowski, Technological properties of new materials for the construction of boilers with supercritical parameters (in Polish), [in] A. Hernas, Destruction processes and protective coatings applied in the power industry, Racibórz 2015, 255-274.

[5] E. Tasak, Weldability of structural materials, Vol. 1, Weldability of steel (in Polish), Ed. JAK, Kraków, (2009).

[6] M. Łomozik, Creep-resisting structural steels for power industry – past and present (in Polish), Biuletyn Instytutu Spawalnictwa 5 (2013) 52-53.

[7] J. Brózda, New generation of creep-resistance steels, their weldability and properties of welded joints (in Polish), Biuletyn Instytutu Spawalnictwa 1 (2004) 41-43.

[8] H. Pawlak-Kruczek, T. Hardy, Analysis of conditions conducive to the destruction of heating boiler surfaces and techniques for the diagnosis of a risk state (in Polish), [in] A. Hernas, Destruction processes and protective coatings applied in the power industry, Racibórz 2015, 41-49.

[9] A. Hernas, J. Dobrzański, J. Wodzyński, Destruction processes of structural elements of power generating unit. (in Polish), [in] A. Hernas, Destruction processes and protective coatings applied in the power industry, Racibórz, 2015, 21-40.
