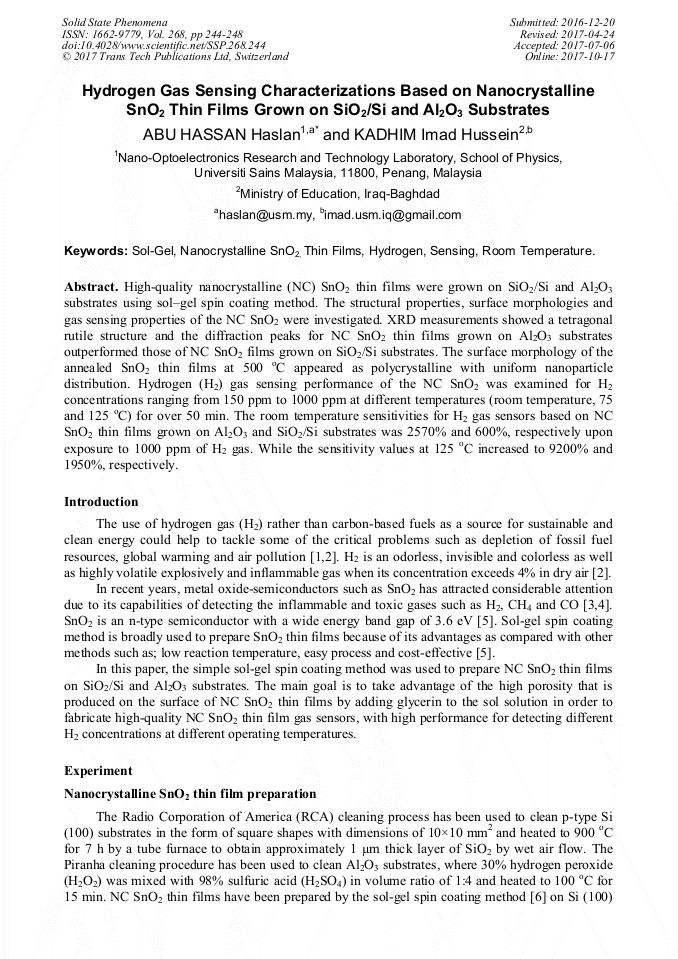

Hydrogen Gas Sensing Characterizations Based on Nanocrystalline SnO₂ Thin Films Grown on SiO₂/Si and Al₂O₃ Substrates

Abstract:

High-quality nanocrystalline (NC) SnO₂ thin films were grown on SiO₂/Si and Al₂O₃ substrates using sol–gel spin coating method. The structural properties, surface morphologies and gas sensing properties of the NC SnO₂ were investigated. XRD measurements showed a tetragonal rutile structure and the diffraction peaks for NC SnO₂ thin films grown on Al₂O₃ substrates outperformed those of NC SnO₂ films grown on SiO₂/Si substrates. The surface morphology of the annealed SnO₂ thin films at 500 °C appeared as polycrystalline with uniform nanoparticle distribution. Hydrogen (H₂) gas sensing performance of the NC SnO₂ was examined for H₂ concentrations ranging from 150 ppm to 1000 ppm at different temperatures (room temperature, 75 and 125 °C) for over 50 min. The room temperature sensitivities for H₂ gas sensors based on NC SnO₂ thin films grown on Al₂O₃ and SiO₂/Si substrates was 2570% and 600%, respectively upon exposure to 1000 ppm of H₂ gas. While the sensitivity values at 125 °C increased to 9200% and 1950%, respectively.

• Periodical: Solid State Phenomena (Volume 268)
• Pages: 244-248
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.268.244
• Online since: October 2017
• Authors: Abu Hassan Haslan*, Imad Hussein Kadhim
• Keywords: Hydrogen, Nanocrystalline SnO₂, Room Temperature, Sensing, Sol-Gel, Thin Film

References

[1] S. Y. Chiu, H. W. Huang, K. C. Liang, Comprehensive investigation on planar type of Pd-GaN hydrogen sensors, Int. J. Hydrogen Energy 34(13) (2009) 5604-5615.

DOI: 10.1016/j.ijhydene.2009.04.073

[2] W. J. Butter, M. B. Post, R. Burgess, C. Rivkin, An overview of hydrogen safety sensors and requirements, Int. J. Hydrogen Energy 36(3) (2011) 2462-2470.

DOI: 10.1016/j.ijhydene.2010.04.176

[3] S. Nicoletti, L. Dori, F. Corticelli, M. Leoni, Tin oxide thin-film sensors for aromatic hydrocarbons detection: effect of aging time on film microstructure, Journal of the American Ceramic Society 82(5) (1999) 1201-1206.

DOI: 10.1111/j.1151-2916.1999.tb01896.x

[4] C. H. Han, S. D. Han, I. Singh, Micro-bead of nano-crystalline F-doped SnO2 as a sensitive hydrogen gas sensor, Sensors and Actuators B: Chemical 109(2) (2005) 264-269.

DOI: 10.1016/j.snb.2004.12.115

[5] I. H. Kadhim and H. A. Hassan, Effect of annealing temperature on the characteristics of nanocrystalline tin dioxide thin films, Journal of Applied Science and Agriculture, 10(5) (2015) 159-164.

[6] I. H. Kadhim and H. Abu Hassan., Effects of glycerin volume ratios and annealing temperature on the characteristics of nanocrystalline tin dioxide thin films, Journal of Materials Science: Materials in Electronics 26(6) (2015) 3417-3426.

DOI: 10.1007/s10854-015-2851-4

[7] I. H. Kadhim, H. Abu Hassan, Q. N. Abdullah, Hydrogen gas sensor based on nanocrystalline SnO2 thin film grown on bare Si substrates, Nano-Micro Letters, 8(1) (2016) 20-28.

DOI: 10.1007/s40820-015-0057-1

[8] I. H. Kadhim and H. Abu Hassan, Room temperature hydrogen gas sensor based on nanocrystalline SnO2 thin film using sol–gel spin coating technique, Journal of Materials Science: Materials in Electronics 27(5) (2016) 4356-4362.

DOI: 10.1007/s10854-016-4304-0

[9] M. Aziz, S. Abbas, W. Baharom, Size-controlled synthesis of SnO2 nanoparticles by sol-gel method, Matt. Lett. 91 (2013) 31-34.

DOI: 10.1016/j.matlet.2012.09.079

[10] Y. Li, W. Yin, R. Deng, R. Chen, J. Chen, Q. Yan, B. Yao, H. Sun, S. Wei, T. Wu, Realizing a SnO2-based ultraviolet light-emitting diode via breaking the dipole-forbidden rule, NPG Asia Materials 4 (2012) 1-6.

DOI: 10.1038/am.2012.56

[11] L. Fields, J. Zheng, Y. Cheng, P. Xiong, Room-temperature low-power hydrogen sensor based on a single tin dioxide nanobelt, Applied Physics Letters 88 (2006) 3102.

DOI: 10.1063/1.2217710

[12] Q. Abdullah, F. Yam, J. Hassan, C. Chin, Z. Hassan, M. Bououdina, High performance room temperature GaN-nanowires hydrogen gas sensor fabricated by chemical vapor deposition (CVD) technique, Int. J. Hydrogen Energy 38 (2013) 14085-14101.

DOI: 10.1016/j.ijhydene.2013.08.014

[13] G. Xie, M. Song, K. Furuya, D.V. Louzguine, A. Inoue, Compound nanostructures formed by metal nanoparticles dispersed on nanodendrites grown on insulator substrates, Applied Physics Letters 88 (2006) 263120-263123.

DOI: 10.1063/1.2217261

[14] J. Gong, Q. Chen, W. Fei, S. Seal, Micromachined nanocrystalline SnO2 chemical gas sensors for electronic nose, Sensors and Actuators B: Chemical 102 (2004) 117-125.

DOI: 10.1016/j.snb.2004.02.055

[15] E. El-Maghraby, A. Qurashi, T. Yamazaki, Synthesis of SnO2 nanowires their structural and H2 gas sensing properties, Ceramics International 39 (2013) 8475-8480.

DOI: 10.1016/j.ceramint.2013.01.112

[16] I.J. Kim, S. Do Han, C.H. Han, J. Gwak, D.U. Hong, D. Jakhar, K. Singh, J.S. Wang, Development of micro hydrogen gas sensor with SnO2–Ag2 O–PtOx composite using MEMS process, Sensors and Actuators B: Chemical 127 (2007) 441-446.

DOI: 10.1016/j.snb.2007.04.047
