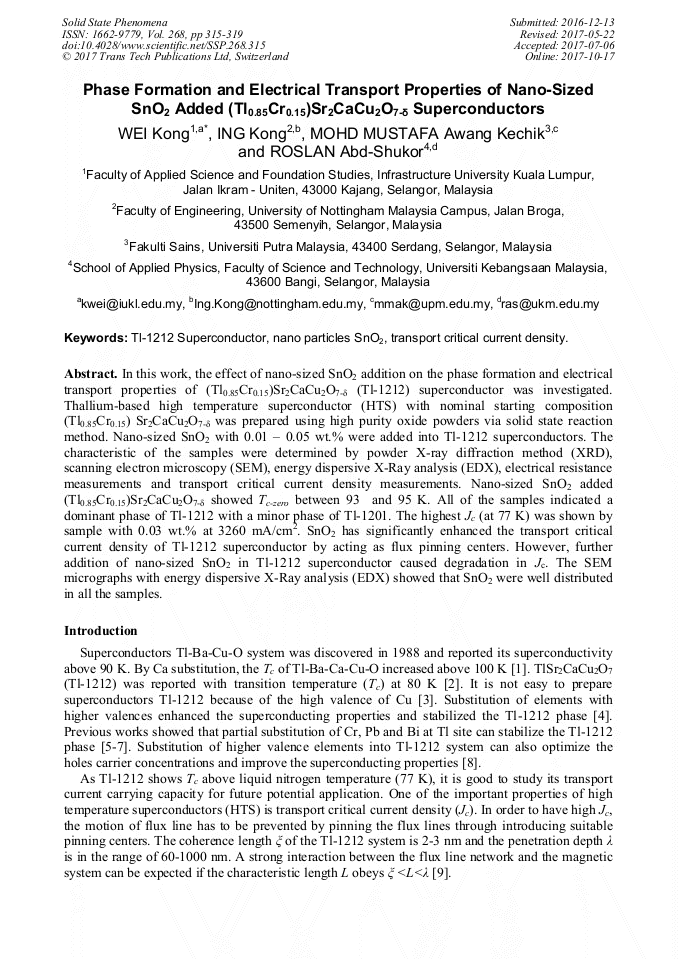

Phase Formation and Electrical Transport Properties of Nano-Sized SnO₂ Added (Tl_0.85Cr_0.15)Sr₂CaCu₂O_7-δ Superconductors

Abstract:

In this work, the effect of nano-sized SnO₂ addition on the phase formation and electrical transport properties of (Tl_0.85Cr_0.15)Sr₂CaCu₂O_7-δ (Tl-1212) superconductor was investigated. Thallium-based high temperature superconductor (HTS) with nominal starting composition (Tl_0.85Cr_0.15) Sr₂CaCu₂O_7-δ was prepared using high purity oxide powders via solid state reaction method. Nano-sized SnO₂ with 0.01 – 0.05 wt.% were added into Tl-1212 superconductors. The characteristic of the samples were determined by powder X-ray diffraction method (XRD), scanning electron microscopy (SEM), energy dispersive X-Ray analysis (EDX), electrical resistance measurements and transport critical current density measurements. Nano-sized SnO₂ added (Tl_0.85Cr_0.15)Sr₂CaCu₂O_7-δ showed T_c-zero between 93 and 95 K. All of the samples indicated a dominant phase of Tl-1212 with a minor phase of Tl-1201. The highest J_c (at 77 K) was shown by sample with 0.03 wt.% at 3260 mA/cm². SnO₂ has significantly enhanced the transport critical current density of Tl-1212 superconductor by acting as flux pinning centers. However, further addition of nano-sized SnO₂ in Tl-1212 superconductor caused degradation in J_c. The SEM micrographs with energy dispersive X-Ray analysis (EDX) showed that SnO₂ were well distributed in all the samples.

• Periodical: Solid State Phenomena (Volume 268)
• Pages: 315-319
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.268.315
• Online since: October 2017
• Authors: Wei Kong*, Ing Kong, Mohd Mustafa Awang Kechik, Roslan Abd-Shukor
• Keywords: Nanoparticles SnO₂, Tl-1212 Superconductor, Transport Critical Current Density

References

[1] Z.Z. Sheng, A.M. Hermann, Bulk superconductivity at 120 K in the Tl–Ca/Ba–Cu–O system, Nature. 332 (1988) 138-139.

DOI: 10.1038/332138a0

[2] S.S.P. Parkin, V.Y. Lee, A.I. Nazzal, R. Savoy, R. Beyers, S.J. La Placa, Tl1Can−1Ba2CunO2n+3 ( n=1, 2, 3 ): A new class of crystal structures exhibiting volume superconductivity at up to ≃110 K, Phys. Rev. Lett. 61 (1988) 750-753.

[3] M.A. Subramaniam, C.C. Torardi, J. Gopalakrishnan, P.L. Gai, J.C. Calabrese, T.R. Askew, R.B. Flippen, A.M. Sleight, Bulk superconductivity up to 122 K in the Tl-Pb-Sr-Ca-Cu-O system, Science. 242 (1988) 249-252.

DOI: 10.1126/science.242.4876.249

[4] C. Martin, J. Provost, D. Bourgault, B. Domenges, C. Michel, M. Hervieu, B. Raveau, Structural peculiarities of the 1212, superconductor Tl0. 5Pb0. 5Sr2CaCu2O7, Physica C. 157 (1989) 460-468.

DOI: 10.1016/0921-4534(89)90271-2

[5] Z.Z. Sheng, D.X. Gu, Y. Xin, D.O. Pederson, L.W. Finger, C.G. Hadidiacos, R.M. Hazen, A new 1212-type phase: Cr-substituted TlSr2CaCu2O7 with Tc up to about 110 K, Mod. Phys. Lett. B5 (1991) 635-642.

DOI: 10.1142/s0217984991000770

[6] S. Li, M. Greenblatt, Preparation and superconducting properties of (Tl, Bi)Sr2CaCu2Oy, Physica C. 157 (1989) 365-369.

DOI: 10.1016/0921-4534(89)90029-4

[7] R. Abd. Shukor, S. V. Lo, Effect of Zn and Mn substitutions on the formation and superconductivity of Tl-1212 type phase (Tl0. 85Cr0. 15)Sr2CaCu2O7, J. Mat. Sc. Lett. 20 (2001) 159-161.

[8] Y.F. Li, O. Chmaissem, Z.Z. Sheng, Crystal structure and Tc of 1212-type cuprate (Tl, Cr)Sr2(Ca, Tl)Cu2O7, Physica C. 248 (1995) 42-48.

DOI: 10.1016/0921-4534(95)00163-8

[9] I.F. Lyuksyutov, D.G. Naugle, Frozen flux superconductors, Mod. Phys. Lett. B 13B (1999) 491-508.

DOI: 10.1142/s0217984999000622

[10] A. Mellekh, M. Zouaoui, F. Ben Azzouz, M. Annabi, M. Ben Salem, Nano-Al2O3 particle addition effects on YBa2Cu3Oy superconducting properties, Sol. Stat. Comm. 149 (2006) 318-323.

DOI: 10.1016/j.ssc.2006.08.008

[11] R. Abd-Shukor,  M.M. Awang Kechik, S.A. Halim,  Transport critical current density of Bi-Sr-Ca-Cu-O/Ag tapes with addition of Fe3O4 as flux pinning center, J. Phys. Conf. Ser. (The Institute of Physics, UK) 97 (2008) 012050.

DOI: 10.1088/1742-6596/97/1/012050

[12] K.T. Lau, S.Y. Yahya, R. Abd-Shukor, Pinning strength in Ag-sheathed (Bi, Pb)-Sr-Ca-Cu-O superconductor tapes studied from current electric-field characteristics, J. Appl. Phys. 99(12) (2006) 123904-123907.

DOI: 10.1007/s10854-005-4952-y

[13] B.A. Glowacki, M. Majoros, A.M. Campbell, S.C. Hopkins, N.A. Rutter, G. Kozlowski, T.L. Peterson, Influence of magnetic materials on the transport properties of superconducting composite conductors, Supercond. Sci. Tech. 22 (2009) 034013-1-10.

DOI: 10.1088/0953-2048/22/3/034013

[14] A. Agail, R. Abd-Shukor, Effect of different nano-sized NiO addition on Ag-sheathed (Bi1. 6Pb0. 4Sr2Ca2Cu3O10) superconductor tapes, J. Supercond. Nov. Mag. (Springer, USA) 27 (2014) 1273–1277.

DOI: 10.1007/s10948-013-2433-8

[15] Nabil A.A. Yahya, R. Abd-Shukor, Electrical transport properties of (Bi1. 6Pb0. 4Sr2Ca2Cu3O10) /Ag tapes with different nanosized MgO, Adv. Cond. Mat. Phys. Art. (Hindawi, USA) (2014) ID 821073  doi. org/10. 1155/2013/821073.

[16] M.I. Yusof, A.K. Yahya, Z. Salleh, M.H. Jumali, Superconductivity and enhancement of critical current density of Ta-substituted TlSr1212 with addition of nanosize MgO, Mat. Res. Inno. 13(3) (2009) 364-367.

DOI: 10.1179/143307509x441577

[17] A.S. Adnan, R. Abd-Shukor, Effects of nano CaO in Tl(Sr1. 5Yb0. 5)CayCu2O7-d superconductor, J. Sol. Stat. Sc. Tech. 18(2) (2010) 15-20.

[18] A. Kamal Yahya, Z. Salleh, M. Hafiz-Jumali, Superconductivity and critical current density of MgO-added Tl0. 5Pb0. 5Sr1. 8Yb0. 2CaCu2O7, AIP Conference Proceedings 909 (American Institute of Physics, Melville, NY) (2007) 265-268.

DOI: 10.1063/1.2739863
