Growth of Highly (110) Oriented Diamond Film by Microwave Plasma Chemical Vapor Deposition

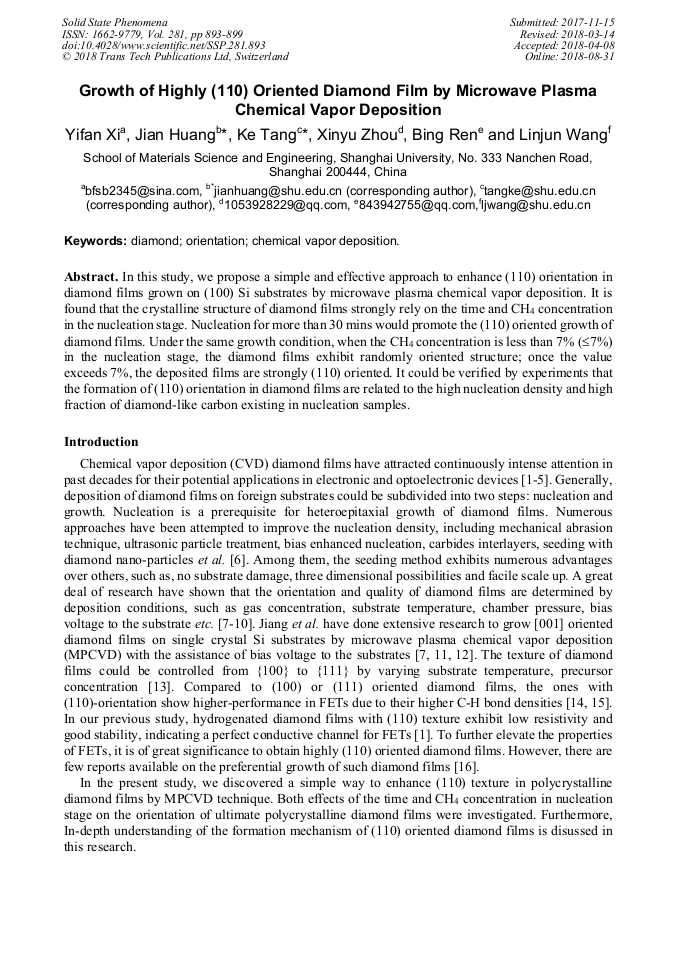

Article Preview

Abstract:

In this study, we propose a simple and effective approach to enhance (110) orientation in diamond films grown on (100) Si substrates by microwave plasma chemical vapor deposition. It is found that the crystalline structure of diamond films strongly rely on the CH₄ concentration in the nucleation stage. Under the same growth condition, when the CH₄ concentration is less than 7% (7%) in the nucleation stage, the diamond films exhibit randomly oriented structure; once the value exceeds 7%, the deposited films are strongly (110) oriented. It could be verified by experiments that the formation of (110) orientation in diamond films are related to the high nucleation density and high fraction of diamond-like carbon existing in nucleation samples.

You might also be interested in these eBooks

High-Performance Ceramics X

Info:

Periodical:

Solid State Phenomena (Volume 281)

Pages:

893-899

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.281.893

Citation:

Cite this paper

Online since:

August 2018

Authors:

Yi Fan Xi, Jian Huang*, Ke Tang, Xin Yu Zhou, Bing Ren, Lin Jun Wang

Keywords:

Chemical Vapor Deposition, Diamond, Orientation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2018 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] B. Ren, J. Huang, H.Z. Yu, W.C. Yang, L. Wang, Z.M. Pan, L.J. Wang, Thermal stability of hydrogenated diamond films in nitrogen ambience studied by reflection electron energy spectroscopy and X-ray photoelectron spectroscopy, Appl. Surf. Sci. In press.

DOI: 10.1016/j.apsusc.2015.10.067

[2] K. Tang, L. Wang, J. Huang, B. Ren, Q. Zeng, K. Qin, L. Shi, Y. Xia, Freestanding diamond films phototransistor, Surf. Coat. Tech. 228, Supplement 1 (2013) S401-S403.

DOI: 10.1016/j.surfcoat.2012.05.059

[3] M.Y. Liao, Y. Koide, Carbon-Based Materials: Growth, Properties, MEMS/NEMS Technologies, and MEM/NEM Switches, Crit. Rev. Solid State 36 (2011) 66-101.

DOI: 10.1080/10408436.2011.572748

[4] G. Conte, E. Giovine, A. Bolshakov, V. Ralchenko, V. Konov, Surface channel MESFETs on hydrogenated diamond, Nanotechnology 23 (2012) 025201.

DOI: 10.1088/0957-4484/23/2/025201

[5] Z.Q. Xie, J. Bai, Y.S. Zhou, Y. Gao, J. Park, T. Guillemet, L. Jiang, X.C. Zeng, Y.F. Lu, Control of crystallographic orientation in diamond synthesis through laser resonant vibrational excitation of precursor molecules, Sci. Rep. 4 (2014) 4581.

DOI: 10.1038/srep04581

[6] O.A. Williams, Nanocrystalline diamond, Diam. Relat. Mater. 20 (2011) 621-640.

[7] X. Jiang, K. Schiffmann, C.P. Klages, D. Wittorf, C.L. Jia, K. Urban, W. Jäger, Coalescence and overgrowth of diamond grains for improved heteroepitaxy on silicon (001), J. Appl. Phys. 83 (1998) 2511.

DOI: 10.1063/1.367012

[8] C.R. Lin, W.H. Liao, D.H. Wei, Y.R. Shen, C.L. Chen, C.L. Dong, W.C. Fang, Fabrication of highly transparent ultrananocrystalline diamond films from focused microwave plasma jets, Surf. Coat. Tech. 231 (2013) 594-598.

DOI: 10.1016/j.surfcoat.2012.01.052

[9] X. Li, J. Perkins, R. Collazo, R.J. Nemanich, Z. Sitar, Investigation of the effect of the total pressure and methane concentration on the growth rate and quality of diamond thin films grown by MPCVD, Diam. Relat. Mater. 15 (2006) 1784-1788.

DOI: 10.1016/j.diamond.2006.09.008

[10] C.J. Tang, A.J.S. Fernandes, F. Costa, J.L. Pinto, Effect of microwave power and nitrogen addition on the formation of {100} faceted diamond from microcrystalline to nanocrystalline, Vacuum, 85 (2011) 1130-1134.

DOI: 10.1016/j.vacuum.2011.01.024

[11] W.J. Zhang, X. Jiang, The growth characteristics of (001) oriented diamond layers on (111) diamond face via bias-assisted chemical vapor deposition, Appl. Phys. Lett. 68 (1996) 2195.

DOI: 10.1063/1.116010

[12] X. Jiang, K. Schiffmann, C.P. Klages, Nucleation and initial growth phase of diamond thin films on (100) silicon, Phys. Rev. B 50 (1994) 8402-8410.

DOI: 10.1103/physrevb.50.8402

[13] T. Liu, D. Raabe, W.M. Mao, S. Zaefferer, Microtexture and grain boundaries in freestanding CVD diamond films: growth and twinning mechanisms, Adv. Funct. Mater. 19 (2009) 3880-3891.

DOI: 10.1002/adfm.200901231

[14] K. Ueda, M. Kasu, Y. Yamauchi, T. Makimoto, M. Schwitters, D.J. Twitchen, G.A. Scarsbrook, S.E. Coe, Diamond FET using high-quality polycrystalline diamond with fT of 45 GHz and fmax of 120 GHz, IEEE Electr. Device Lett.27 (2006) 570-572.

DOI: 10.1109/led.2006.876325

[15] K. Hirama, H. Takayanagi, S. Yamauchi, J.H. Yang, H. Kawarada, H. Umezawa, Spontaneous polarization model for surface orientation dependence of diamond hole accumulation layer and its transistor performance, Appl. Phys. Lett. 92 (2008) 112107.

DOI: 10.1063/1.2889947

[16] K. Kumagai, K. Miyata, K. Nishimura, K. Kobashi, Growth of (110)-oriented diamond films by electron-assisted chemical vapor deposition, J. Mater. Res. 8 (1993) 314-320.

DOI: 10.1557/jmr.1993.0314

[17] F.K. Lotgering, Topotactical reactions with ferrimagnetic oxides having hexagonal crystal structures-I, J. Inorg. Nucl. Chem. 9 (1959) 113-123.

DOI: 10.1016/0022-1902(59)80070-1

[18] H. Chen, B. Shen, J. Xu, J. Zhai, Textured Ca0.85(Li,Ce)0.15Bi4Ti4O15 ceramics for high temperature piezoelectric applications, Mater. Res. Bull. 47 (2012) 2530-2534.

DOI: 10.1016/j.materresbull.2012.05.009

[19] H. Maeda, M. Irie, T. Hino, K. Kusakabe, S. Morooka, Formation of highly oriented diamond film on carburized (100) Si substrate, J. Mater. Res. 10 (1995) 158-164.

DOI: 10.1557/jmr.1995.0158

[20] H. Jeon, C. Wang, A. Hatta, T. Ito, Nucleation-enhancing treatment for diamond growth over a large-area using magnetoactive microwave plasma chemical vapor deposition, J. Appl. Phys. 88 (2000) 2979-2983.

DOI: 10.1063/1.1287411

[21] D. Das, R.N. Singh, A review of nucleation, growth and low temperature synthesis of diamond thin films, Int. Mater. Rev. 52 (2007) 29-64.

[22] M. Regmi, K. More, G. Eres, A narrow biasing window for high density diamond nucleation on Ir/YSZ/Si(100) using microwave plasma chemical vapor deposition, Diam. Relat. Mater. 23 (2012) 28-33.

DOI: 10.1016/j.diamond.2012.01.008

[23] A.C. Ferrari, J. Robertson, Origin of the 1150 cm−1 Raman mode in nanocrystalline diamond, Phys. Rev. B 63 (2001) 121405.

[24] X.J. Hu, J.S. Ye, H. Hu, X.H. Chen, Y.G. Shen, Phosphorus ion implantation and annealing induced n-type conductivity and microstructure evolution in ultrananocrystalline diamond films, Appl. Phys. Lett. 99 (2011) 131902.

DOI: 10.1063/1.3641458
