HomeSolid State PhenomenaSolid State Phenomena Vol. 281Effect of WO3 on the Performances of Cordierite...

Effect of WO₃ on the Performances of Cordierite Ceramics Synthesized by Using Kyanite as Raw Materials

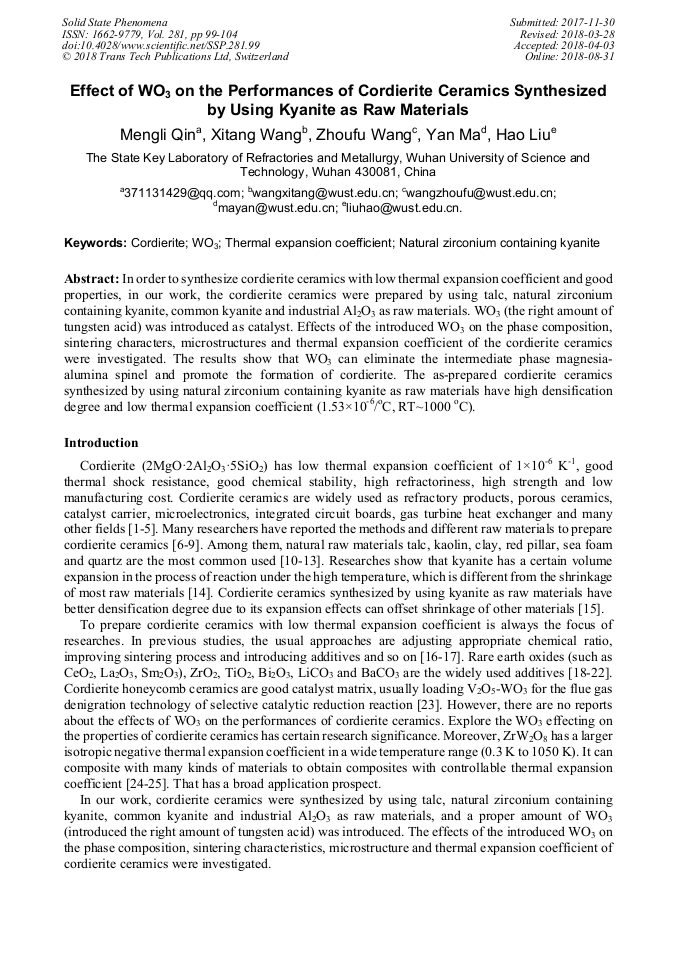

Article Preview

Abstract:

In order to synthesize cordierite ceramics with low thermal expansion coefficient and good properties, in our work, the cordierite ceramics were prepared by using talc, natural containing zirconium kyanite, common kyanite and industrial Al₂O₃ as raw materials, introducing the right amount of WO₃ (introducing tungsten acid) as catalyst. The effects of the introduced WO₃ on the phase composition, sintering characters, microstructure and thermal expansion coefficient of the cordierite ceramics were investigated. The results show that the introduction of WO₃ can eliminate the intermediate phase magnesia-alumina spinel and promote the formation of cordierite; the as-prepared cordierite ceramics synthesized by using natural containing zirconium kyanite as raw materials have high densification degree and low thermal expansion coefficient (1.53×10^-6/°C, Rt~1000 °C).

You might also be interested in these eBooks

High-Performance Ceramics X

Info:

Periodical:

Solid State Phenomena (Volume 281)

Pages:

99-104

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.281.99

Citation:

Cite this paper

Online since:

August 2018

Authors:

Meng Li Qin, Xi Tang Wang, Zhou Fu Wang, Yan Ma, Hao Liu

Keywords:

Cordierite, Natural Containing Zirconium Kyanite, Thermal Expansion Coefficient, WO₃

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2018 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] Aşkın A, İlknur Tatar, Şule Kılınç, et al. The Utilization of Waste Magnesite in the Production of the Cordierite Ceramic [J]. Energy Procedia, 2017, 107:137-143.

DOI: 10.1016/j.egypro.2016.12.151

[2] Naga S M, Sayed M, Elmaghraby H F, et al. Fabrication and Properties of Cordierite / Anorthite Composites [J]. Ceramics International, 2017, 43(8):6024-6028.

DOI: 10.1016/j.ceramint.2017.01.142

[3] Zhang X B, Xu J, Ren X J, et al. Preparation and Characterization of Porous Cordierite Ceramics from Coal Fly Ash [J]. Key Engineering Materials, 2007, 336-338(2):1898-(1900).

DOI: 10.4028/www.scientific.net/kem.336-338.1898

[4] Boccaccini D N, Leonelli C, Rivasi M R, et al. Microstructural Investigations in Cordierite-Mullite Refractories [J]. Ceramics International, 2005, 31(3):417-432.

DOI: 10.1016/j.ceramint.2004.06.005

[5] Li Y, Cheng X, Zhang R, et al. Effect of Excess MgO on the Properties of Cordierite Ceramic Sintered by Solid-state Method [J]. International Journal of Applied Ceramic Technology, 2015, 12(2):443-450.

DOI: 10.1111/ijac.12174

[6] González-Velasco J R, Ferret R, López-Fonseca R, et al. Influence of Particle Size Distribution of Precursor Oxides on the Synthesis of Cordierite by Solid-state Reaction [J]. Powder Technology, 2005, 153(1):34-42.

DOI: 10.1016/j.powtec.2005.01.022

[7] Menchi A M, Scian A N. Mechanism of Cordierite Formation Obtained by the Sol-Gel Technique [J]. Materials Letters, 2005, 59(21):2664-2667.

DOI: 10.1016/j.matlet.2005.04.014

[8] Zhu K, Yang D Y, Wu J, et al. Synthesis of Cordierite with Low Thermal Expansion Coefficient [J]. Advanced Materials Research, 2010, 105-106(1):802-804.

DOI: 10.4028/www.scientific.net/amr.105-106.802

[9] Benhammou A, Hafiane Y E, Nibou L, et al. Mechanical Behavior and Ultrasonic Non-destructive Characterization of Elastic Properties of Cordierite-based Ceramics [J]. Ceramics International, 2013, 39:21-27.

DOI: 10.1016/j.ceramint.2012.06.061

[10] Njoya D, Elimbi A, Fouejio D, et al. Effects of Two Mixtures of Kaolin-talc-bauxite and Firing Temperatures on the Characteristics of Cordierite-based Ceramics[J]. Journal of Building Engineering, 2016, 8:99-106.

DOI: 10.1016/j.jobe.2016.10.004

[11] Orosco P, Ruiz M D C, González J. Synthesis of Cordierite by Dolomite and Kaolinitic Clay Chlorination. Study of the Phase Transformations and Reaction Mechanism [J]. Powder Technology, 2014, 267:111-118.

DOI: 10.1016/j.powtec.2014.07.009

[12] Bejjaoui R, Benhammou A, Nibou L, et al. Synthesis and Characterization of Cordierite Ceramic from Moroccan Stevensite and Andalusite [J]. Applied Clay Science, 2010, 49(3):336-340.

DOI: 10.1016/j.clay.2010.06.004

[13] Zhou J E, Dong Y, Hampshire S, et al. Utilization of Sepiolite in the Synthesis of Porous Cordierite Ceramics [J]. Applied Clay Science, 2011, 52(3):328-332.

DOI: 10.1016/j.clay.2011.02.001

[14] Liu X, He Q, Wang H, et al. Thermal Expansion of Kyanite at Ambient Pressure: An X-ray powder diffraction study up to 1000°C [J]. Geoscience Frontiers, 2010, 1(1):91-97.

DOI: 10.1016/j.gsf.2010.07.002

[15] Qin M L, Wang X T, Wang Z F, et al. Effect of ZrO2 Addition on the Preparation of Cordierite Materials [J]. Journal of Artificial Crystal, 2015, 44(11):3240-3244.

[16] Nakahara M, Kondo Y, Hamano K. Effect of Particle Size of Powders Ground by Ball Milling on Densification of Cordierite Ceramics[J]. Journal of the Ceramic Society of Japan, 2010, 107(1244):308-312.

DOI: 10.2109/jcersj.107.308

[17] Beall D M, Merbel G A. Fabrication Method of Ultra Low Thermal Expansion Cordierite Structures [P]. CN 1329582 A[P]. (2002).

[18] Lachman I M, Bagley R D, Lewis R M. Thermal Expansion of Extruded Cordierite Ceramics [J]. American Ceramic Society Bulletin, 1981, 60(2):202-205.

[19] Shi Z M, Liang K M, Gu S R. Effects of CeO2, on Phase Transformation towards Cordierite in MgO-Al2O3-SiO2 System [J]. Materials Letters, 2001, 51(1):68-72.

DOI: 10.1016/s0167-577x(01)00267-1

[20] Xu X, Xu X, Wu J, et al. Effect of Sm2O3, on Microstructure, Thermal Shock Resistance and Thermal Conductivity of Cordierite-mullite-corundum Composite Ceramics for Solar Heat Transmission Pipeline [J]. Ceramics International, 2016, 42(12):13525-13534.

DOI: 10.1016/j.ceramint.2016.05.145

[21] Lu S, Zhang J, Sun Y, et al. Preparation and Characterization of CuO-CeO2-ZrO2 /Cordierite Monolith Catalysts [J]. Ceramics International, 2017, 43: 5957-5962.

DOI: 10.1016/j.ceramint.2017.01.118

[22] Wang H F, Zhou H P. The Influence of Bi3+ on the Sintering of Cordierite Glass Ceramic [J]. Key Engineering Materials, 2005, 280-283:925-928.

DOI: 10.4028/www.scientific.net/kem.280-283.925

[23] Li F, Shen B, Tian L, et al. Enhancement of SCR Activity and Mechanical Stability on Cordierite Supported V2O5-WO3/TiO2, Catalyst by Substrate Acid Pretreatment and Addition of Silica [J]. Powder Technology, 2016, 297:384-391.

DOI: 10.1016/j.powtec.2016.04.050

[24] Evans J S O, Mary T A, Sleight A W. Negative Thermal Expansion from 0.3 to 1050 K in Zirconium Tungstate, ZrW2O8[J]. Science, 1996, 272(5258):90-92.

DOI: 10.1126/science.272.5258.90

[25] Tani J I, Takahashi M, Kido H. Fabrication and Thermal Expansion Properties of ZrW2O8/Zr2WP2O12, Composites [J]. Journal of the European Ceramic Society, 2010, 30(6):1483-1488.

DOI: 10.1016/j.jeurceramsoc.2009.11.010
