Increasing the Abrasive Wear Resistance of High-Chromium Steel after Cold Treatment

Abstract:

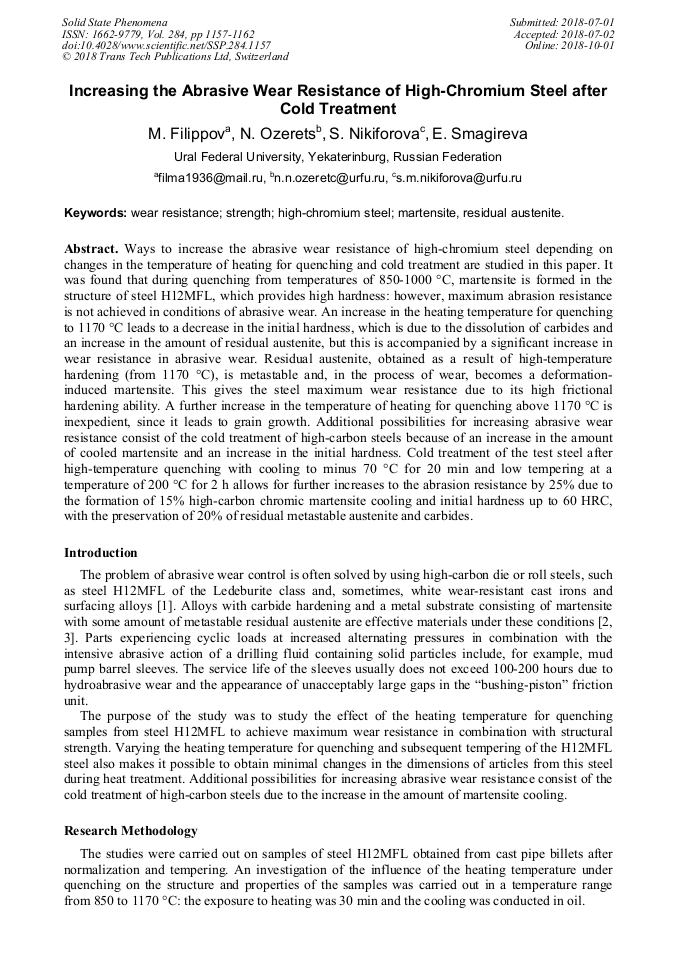

Ways to increase the abrasive wear resistance of high-chromium steel depending on changes in the temperature of heating for quenching and cold treatment are studied in this paper. It was found that during quenching from temperatures of 850-1000 °C, martensite is formed in the structure of steel H12МFL, which provides high hardness: however, maximum abrasion resistance is not achieved in conditions of abrasive wear. An increase in the heating temperature for quenching to 1170 °C leads to a decrease in the initial hardness, which is due to the dissolution of carbides and an increase in the amount of residual austenite, but this is accompanied by a significant increase in wear resistance in abrasive wear. Residual austenite, obtained as a result of high-temperature hardening (from 1170 °C), is metastable and, in the process of wear, becomes a deformation-induced martensite. This gives the steel maximum wear resistance due to its high frictional hardening ability. A further increase in the temperature of heating for quenching above 1170 °C is inexpedient, since it leads to grain growth. Additional possibilities for increasing abrasive wear resistance consist of the cold treatment of high-carbon steels because of an increase in the amount of cooled martensite and an increase in the initial hardness. Cold treatment of the test steel after high-temperature quenching with cooling to minus 70 °C for 20 min and low tempering at a temperature of 200 °C for 2 h allows for further increases to the abrasion resistance by 25% due to the formation of 15% high-carbon chromic martensite cooling and initial hardness up to 60 НRC, with the preservation of 20% of residual metastable austenite and carbides.

• Periodical: Solid State Phenomena (Volume 284)
• Pages: 1157-1162
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.284.1157
• Online since: October 2018
• Authors: Mikhail A. Filippov, N. Ozerets*, S.M. Nikiforova, E. Smagireva
• Keywords: High-Chromium Steel, Martensite, Residual Austenite, Strength, Wear Resistance

References

[1] M.A. Gervasyev, Yu.V. Khudorozhkova, M.A. Filippov, Structure and wear resistance of roll steels with 5 % chromium, Metallurgy and heat treatment of metals. 10 (2010) 16-20.

[2] M.A. Filippov, M.A. Gervasyev, Yu.V. Khudorozhkova, V.V. Legchilo, Effect of quenching temperature on the phase composition, structure, and wear resistance of steel 150HNM, Izvestiya Vysshikh Uchebnykh Zavedenii, Ferrous metallurgy. 11 (2013).

DOI: 10.17073/0368-0797-2013-11-55-58

[3] A.P. Gulyaev, Metal science, Moscow: Metallurgy. (1986).

[4] M.M. Khrushchev, M.A. Babichev, Abrasion wear, Moscow: Nauka. (1970).

[5] L.G. Korshunov, Wear of metals in friction, Metallurgy and heat treatment of steel (T.1, book 2), Moscow: Metallurgy, 1991, 387-413.

[6] M.A. Filippov, V.S. Litvinov, Yu.R. Nemirovsky, Steels with metastable austenite. Moscow: Metallurgy, (1988).

[7] V.S. Ivanova, Synergetics in Metallurgy, Metallurgy and heat treatment of metals. 2 (2005) 12-19.

[8] M. Bernshtein, Structure of deformed metals. Moscow: Metallurgy, (1977).
