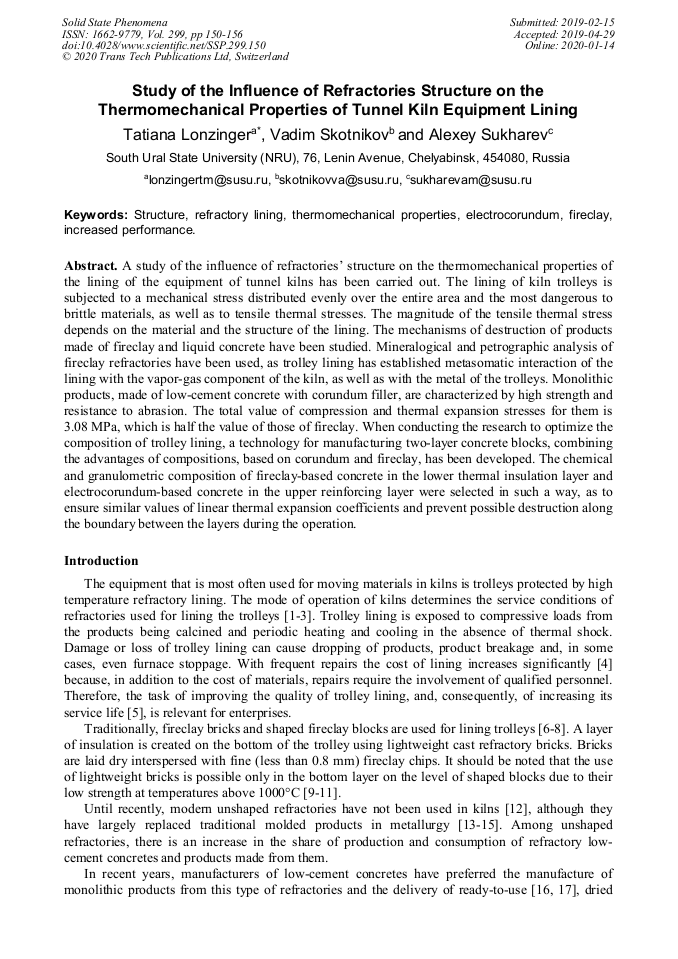

Study of the Influence of Refractories Structure on the Thermomechanical Properties of Tunnel Kiln Equipment Lining

Abstract:

A study of the influence of refractories’ structure on the thermomechanical properties of the lining of the equipment of tunnel kilns has been carried out. The lining of kiln trolleys is subjected to a mechanical stress distributed evenly over the entire area and the most dangerous to brittle materials, as well as to tensile thermal stresses. The magnitude of the tensile thermal stress depends on the material and the structure of the lining. The mechanisms of destruction of products made of fireclay and liquid concrete have been studied. Mineralogical and petrographic analysis of fireclay refractories have been used, as trolley lining has established metasomatic interaction of the lining with the vapor-gas component of the kiln, as well as with the metal of the trolleys. Monolithic products, made of low-cement concrete with corundum filler, are characterized by high strength and resistance to abrasion. The total value of compression and thermal expansion stresses for them is 3.08 MPa, which is half the value of those of fireclay. When conducting the research to optimize the composition of trolley lining, a technology for manufacturing two-layer concrete blocks, combining the advantages of compositions, based on corundum and fireclay, has been developed. The chemical and granulometric composition of fireclay-based concrete in the lower thermal insulation layer and electrocorundum-based concrete in the upper reinforcing layer were selected in such a way, as to ensure similar values of linear thermal expansion coefficients and prevent possible destruction along the boundary between the layers during the operation.

• Periodical: Solid State Phenomena (Volume 299)
• Pages: 150-156
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.299.150
• Online since: January 2020
• Authors: Tatiana M. Lonzinger*, Vadim A. Skotnikov, Alexey M. Sukharev
• Keywords: Electrocorundum, Fireclay, Increased Performance, Refractory Lining, Structure, Thermomechanical Properties

References

[1] V.F. Berdyshev, R.E. Naidenov, V.G. Sarkisov, Integrated operational diagnostics of thermal performance of tunnel kilns, Izvestiya. Ferrous Metallurgy. 9 (2006) 69-74.

[2] D.V. Rakutina, Improving the thermal performance of tunnel kilns for firing ceramic products: dissertation PhD Engineering, Ivanovo, (2006).

[3] N.А. Tyutin, Yu.A. Levchenko, A.A. Skochilov, M.Yu. Vanyukov, High-temperature tunnel kiln for drying and firing spinel-containing refractories, Novye Ogneupory (New Refractories). 4 (2006) 26-27.

DOI: 10.1007/s11148-006-0090-1

[4] R.R. Akhtyamov, Optimized liner designs for ceramic brick kiln cars, Construction Materials. 12 (2003) 56-58.

[5] Valentina Hesse, Factors affecting the service life of refractory materials in the production of building bricks and clinker, Construction Materials. 7 (2011) 34-35.

[6] I.E. Alexandrov, E.S. Mambetshaev, T.Kh. Basimova, Development and operation of refractories for lining of kiln cars for construction brick, Glass and Ceramics. 9 (2006) 15-16.

DOI: 10.1007/s10717-006-0105-x

[7] T.F. Baranova, E.A. Stepanova, N.I. Shunkina, RU Patent 2412133, (2011).

[8] N.A. Fomichev, A.N. Abyzov, V.P. Bogatyrev, A.A. Ginter, N.F. Bugaev, E.I. V'yunnikova, Refractory concrete blocks for lining tunnel kiln cars, Refractories and Industrial Ceramics. 9 (1968) 546-548.

DOI: 10.1007/bf01283498

[9] T.F. Baranova, V.A. Poklad, I.B. Menshikov, RU Patent 2403520, (2011).

[10] I.V. Tropinova, A.M. Tropinov, Repair method of tunnel kiln cars, Novye Ogneupory (New Refractories). 5 (2007) 15-19.

[11] A.I. Khlystov, Theoretical and technological principles of improving the durability of refractory lining materials: dissertation D.Sc. of Engineering, Samara, (2004).

[12] I.I. Shakhov, N.K. Pozdnyakova, Experience of using refractory concrete for industrial kilns, Novye Ogneupory (New Refractories). 11 (2006) 18-21.

[13] A.A. Ponomareva, D.S. Linichenko, Statistical analysis of the current state of the metallurgical complex of the Russian Federation, industry development prospects, Actual problems and prospects for the development of state statistics in modern conditions: Materials of the IV International Scientific Practical Conference. Saratov Socio-Economic Institute of Plekhanov Russian University of Economics, Saratov, (2018) 45-46.

DOI: 10.28995/2073-0101-2018-4-1115-1127

[14] I.D. Ochagova, Development directions of the refractory industry and the global ferrous metallurgy, Novye Ogneupory (New Refractories). 5 (2008) 78-81.

[15] Yu.E. Pivinsky, A.V. Cherevatova, E.V. Rozhkov, RU Patent 2141460, (1999).

[16] I.I. Shakhov, N.K. Pozdnyakova, A.A. Dorozhkin, Block lining of tunnel kiln cars for firing ceramic products, Construction Materials. 11 (2007) 74-77.

[17] O.D. Kolosanov, Yu.V. Lim, E.M. Grishpun, A.M. Gorokhovsky, RU Patent 107580, (2011).

[18] E.E. Gnedash, A.K. Akchurin, I.V. Stefanenko, The State and prospects of development of heat-resistant composite materials technologies, Izvestia of Volgograd State Technical University. 19(219) (2018) 56-61.

[19] A.I. Khlystov, A.S. Bahchev, A.A. Pavlov, Experience in the use of heat-resistant concrete in the linings of thermal units in in mechanical engineering, Refractories and technical ceramics. 1 (2006) 45-48.

[20] V.P. Migal, A.P. Margishvili, V.V. Skurikhin, G.V. Rusakova, P.E. Alekseev, Unshaped refractory materials for the metallurgical industry, Refractories and technical ceramics. 4-5 (2009) 27-34.
