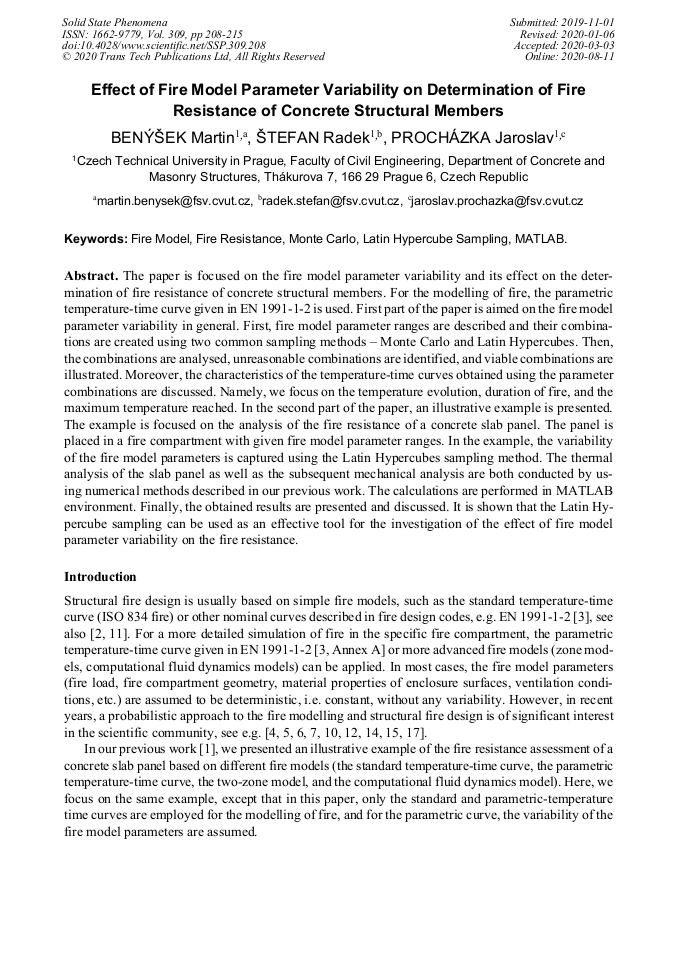

Effect of Fire Model Parameter Variability on Determination of Fire Resistance of Concrete Structural Members

Abstract:

The paper is focused on the fire model parameter variability and its effect on the determination of fire resistance of concrete structural members.For the modelling of fire, the parametric temperature-time curve given in EN 1991-1-2 is used.First part of the paper is aimed on the fire model parameter variability in general.First, fire model parameter ranges are described and their combinations are created using two common sampling methods -- Monte Carlo and Latin Hypercubes.Then, the combinations are analysed, unreasonable combinations are identified, and viable combinations are illustrated.Moreover, the characteristics of the temperature-time curves obtained using the parameter combinations are discussed. Namely, we focus on the temperature evolution, duration of fire, andthe maximum temperature reached.In the second part of the paper, an illustrative example is presented.The example is focused on the analysis of the fire resistance of a concrete slab panel. The panel is placed in a fire compartment with given fire model parameter ranges. In the example, the variability of the fire model parameters is captured using the Latin Hypercubes sampling method.The thermal analysis of the slab panel as well as the subsequent mechanical analysis are both conducted by using numerical methods described in our previous work. The calculations are performed in MATLAB environment.Finally, the obtained results are presented and discussed.It is shown that the Latin Hypercube sampling can be used as an effective tool for the investigation of the effect of fire model parameter variability on the fire resistance.

• Periodical: Solid State Phenomena (Volume 309)
• Pages: 208-215
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.309.208
• Online since: August 2020
• Authors: Martin Benýšek*, Radek Štefan, Jaroslav Procházka
• Keywords: Fire Model, Fire Resistance, Latin Hypercube Sampling, MATLAB, Monte Carlo

References

[1] M. Benýšek, R. Štefan, and J. Procházka. Analysis of fire resistance of concrete structural mem­ bers based on different fire models: An illustrative example of the slab panel assessment. In 25th Concrete Days 2018, volume 292 of Solid State Phenomena, pages 173-182. Trans Tech Publications, 7 (2019).

DOI: 10.4028/www.scientific.net/ssp.292.173

[2] A. H. Buchanan. Structural Design for Fire Safety. Wiley, (2002).

[3] EN 1991­1­2. Eurocode 1: Actions on structures - Part 1­2: General actions - Actions on struc­ tures exposed to fire. CEN, (2002).

DOI: 10.1002/9783433601570.oth1

[4] I. Fu, I. Rickard, D. Hopkin, and M. Spearpoint. Application of Python programming language in structural fire engineering ­ Monte Carlo simulation. In Interflam, (2019).

[5] Q. Guo and A. E. Jeffers. Finite­Element Reliability Analysis of Structures Subjected to Fire. Journal of Structural Engineering, 141(4):04014129, (2015).

[6] Q. Guo, K. Shi, Z. Jia, and A. E. Jeffers. Probabilistic Evaluation of Structural Fire Resistance. Fire Technology, 49(3):793-811, (2013).

DOI: 10.1007/s10694-012-0293-6

[7] M. Heidari, F. Robert, D. Lange, and G. Rein. Probabilistic Study of the Resistance of a Simply­ Supported Reinforced Concrete Slab According to Eurocode Parametric Fire. Fire Technology, 55(4):1377-1404, (2019).

DOI: 10.1007/s10694-018-0704-4

[8] R. Huizinga. Influence of the performance of triple and double glazing on the fire development in a dwelling. Master thesis, Eindhoven University of Technology, (2012).

[9] E. Nigro, G. Cefarelli, A. Bilotta, G. Manfredi, and E. Cosenza. Guidelines for flexural resis­ tance of FRP reinforced concrete slabs and beams in fire. Composites Part B: Engineering, 58:103-112, (2014).

DOI: 10.1016/j.compositesb.2013.10.007

[10] D. Odigie. The Investigation of Fire Hazards in Buildings using Stochastic Modelling. PhD thesis, Victoria University, (2000).

[11] J. A. Purkiss. Fire safety engineering, Design of structures. Elsevier, 2 edition, (2007).

[12] I. Rickard, I. Fu, D. Hopkin, and L. Bisby. Assessing spalling risk in buildings: Considering spalling in probabilistic fire safety design. In 6th International Workshop on Concrete Spalling due to Fire exposure, (2019).

[13] J. Rigberth. Simplified Design of Fire Exposed Concrete Beams and Columns. An Evaluation of Eurocode and Swedish Building Code Against Advanced Computer Models. Department of Fire Safety Engineering Lund University, Sweden, (2000).

[14] M. Shrivastava, A. Abu, R. Dhakal, and P. Moss. State­of­the­art of probabilistic performance based structural fire engineering. Journal of Structural Fire Engineering, 10(2):175-192, (2019).

DOI: 10.1108/jsfe-02-2018-0005

[15] K. T. Tsang. Stochastic quantitative fire risk assessment on old buildings in Hong Kong. Bach­ elor thesis, City University of Hong Kong, (2012).

[16] R. Štefan, J. Sura, J. Procházka, A. Kohoutková, and F. Wald. Numerical investigation of slen­ der reinforced concrete and steel­concrete composite columns at normal and high temperatures using sectional analysis and moment­curvature approach. Submitted.

DOI: 10.1016/j.engstruct.2019.03.071

[17] Q. Xie, J. Xiao, P. Gardoni, and K. Hu. Probabilistic analysis of building fire severity based on fire load density models. Fire Technology, 55(4):1349-1375, (2019).

DOI: 10.1007/s10694-018-0716-0
