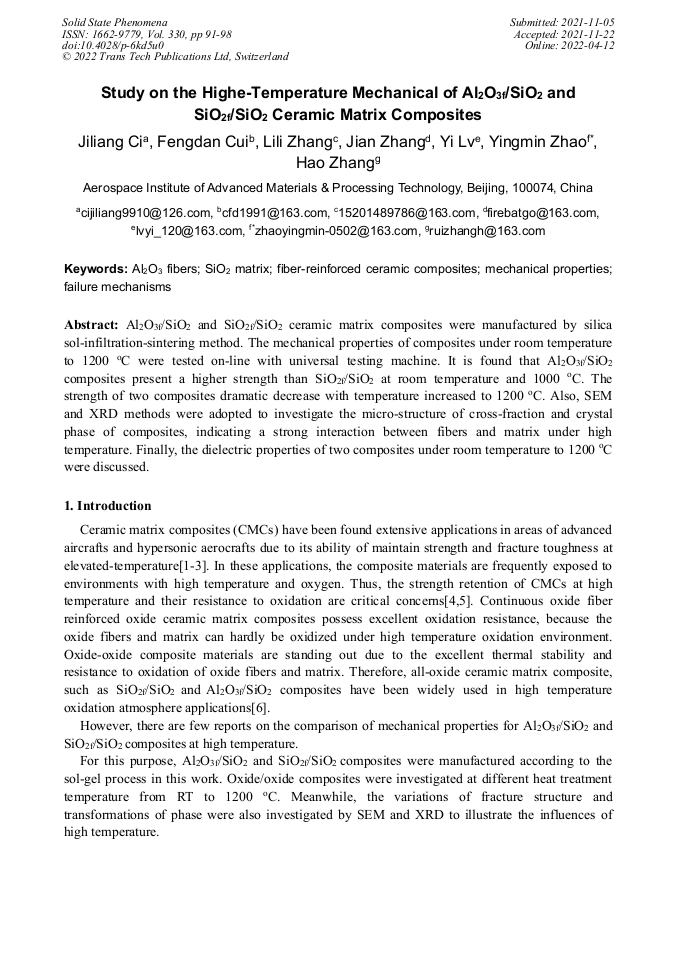

Study on the Highe-Temperature Mechanical of Al₂O_3f/SiO₂ and SiO_2f/SiO₂ Ceramic Matrix Composites

Abstract:

Al₂O_3f/SiO₂ and SiO_2f/SiO₂ ceramic matrix composites were manufactured by silica sol-infiltration-sintering method. The mechanical properties of composites under room temperature to 1200 °C were tested on-line with universal testing machine. It is found that Al₂O_3f/SiO₂ composites present a higher strength than SiO_2f/SiO₂ at room temperature and 1000 °C. The strength of two composites dramatic decrease with temperature increased to 1200 °C. Also, SEM and XRD methods were adopted to investigate the micro-structure of cross-fraction and crystal phase of composites, indicating a strong interaction between fibers and matrix under high temperature. Finally, the dielectric properties of two composites under room temperature to 1200 °C were discussed.

• Periodical: Solid State Phenomena (Volume 330)
• Pages: 91-98
• DOI: https://doi.org/10.4028/p-6kd5u0
• Online since: April 2022
• Authors: Ji Liang Ci, Feng Dan Cui, Li Li Zhang, Jian Zhang, Yi Lv, Ying Min Zhao*, Hao Zhang
• Keywords: Al₂O₃ Fibers, Failure Mechanisms, Fiber-Reinforced Ceramic Composites, Mechanical Properties, SiO₂ Matrix

References

[1] X. Cao, B. Lin, Y Wang, et al. Influence of diamond wheel grinding process on surface icro-topography and properties of SiO2/SiO2 composite. Applied Surface Science.

DOI: 10.1016/j.apsusc.2013.11.109

[2] R. Savino, L. Criscuolo, G. Martino, et al. Aero-thermo-chemical characterization of ultra-high-temperature ceramics for aerospace applications. J Eur Ceram Soc, 2018, 38: 2937–2953.

DOI: 10.1016/j.jeurceramsoc.2017.12.043

[3] S. Li, Z. Feng, Y. Liu, et al. Microstructural evolution of coating-modified 3D C/SiC composites after annealing in wet oxygen at different temperatures. Corros Sci, 2010, 52:2873–2845.

DOI: 10.1016/j.corsci.2010.04.032

[4] K. O. Smith, A. Fahne . Proc. Int. Gas Turbine and Aero Engine Congress and Exhibition, 1996. Birmingham, UK, paper 96-GT-318.

[5] M. Holmquist, R. Lundberg, O. Sudre, et al. Alumina/alumina composite with a porous zirconia interphase-processing, properties and component testing, J. Europ. Ceram. Soc. 2000, 20: 599.

DOI: 10.1016/s0955-2219(99)00258-7

[6] X. Yang, W. Qin, C. Feng, et al. High-temperature properties of 2.5D SiO2f/SiO2 composites by sol–gel. Ceram Int. 2016, 42:12802–12806.

[7] Y. Wang, H. F. Cheng, H. T. Liu, et al. Effects of sintering temperature on mechanical properties of 3D mullite fiber (ALF FB3) reinforced mullite composites. Ceram Int. 2013, 39:9229-9235.

DOI: 10.1016/j.ceramint.2013.05.030

[8] M. Schmücker, F. Flucht, et al. Degradation of oxide fibers by thermal overload and environmental effects. Mater Sci Eng: A, 2012, 557:10–16.

DOI: 10.1016/j.msea.2012.05.107

[9] Z. Yang, H. Liu. Effects of thermal aging on the cyclic thermal shock behavior of oxide/oxide ceramic matrix composites. Mater Sci Eng: A, 2020, 769.

DOI: 10.1016/j.msea.2019.138494

[10] W. M. Ruggles, J. Braun. Effects of steam environment on creep behavior of NextelTM 720 Alumina ceramic composite at elevated temperature. Mater Sci Eng: A, 2008, 497: 101-110.

DOI: 10.1016/j.msea.2008.06.036

[11] W. M. Ruggles, C. L. Genelin. Creep of NextelTM 720/alumina-mullite ceramic composite at 1200 oC in air, argon, and steam. Composites Science and Technology, 2009, 69:663-669.

DOI: 10.1016/j.compscitech.2009.01.002

[12] C. X. Zhu, Z. Zheng, F. Cao, et al. High-temperature properties of Al2O3/SiO2 composites. Journal of sol-gel science and technology, 2021, 97:63-70.

DOI: 10.1007/s10971-020-05413-w
