Low Reflection-Loss Thermal Barrier Coating on Hastelloy C276 for Radio Control Rocket Tip Nosecone Using Yttria-Stabilized Zirconia (YSZ) at Extreme Temperature

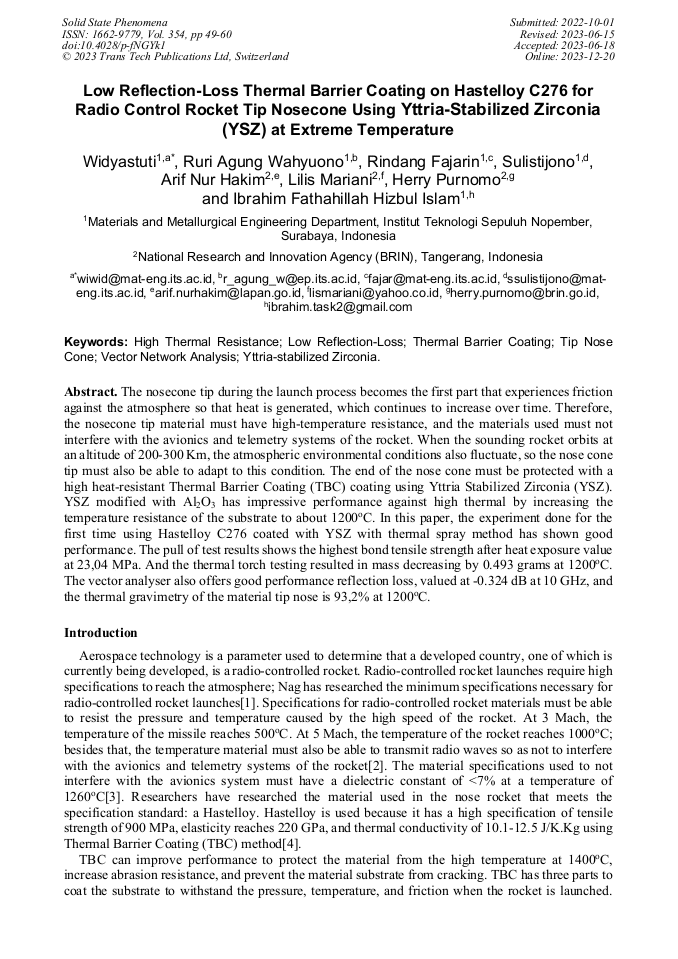

Article Preview

Abstract:

The nosecone tip during the launch process becomes the first part that experiences friction against the atmosphere so that heat is generated, which continues to increase over time. Therefore, the nosecone tip material must have high-temperature resistance, and the materials used must not interfere with the avionics and telemetry systems of the rocket. When the sounding rocket orbits at an altitude of 200-300 Km, the atmospheric environmental conditions also fluctuate, so the nose cone tip must also be able to adapt to this condition. The end of the nose cone must be protected with a high heat-resistant Thermal Barrier Coating (TBC) coating using Yttria Stabilized Zirconia (YSZ). YSZ modified with Al₂O₃ has impressive performance against high thermal by increasing the temperature resistance of the substrate to about 1200°C. In this paper, the experiment done for the first time using Hastelloy C276 coated with YSZ with thermal spray method has shown good performance. The pull of test results shows the highest bond tensile strength after heat exposure value at 23,04 MPa. And the thermal torch testing resulted in mass decreasing by 0.493 grams at 1200°C. The vector analyser also offers good performance reflection loss, valued at -0.324 dB at 10 GHz, and the thermal gravimetry of the material tip nose is 93,2% at 1200°C.

You might also be interested in these eBooks

The 5th International Conference on Materials and Metallurgical Engineering and Technology (ICOMMET)

Special Nanomaterials and Surface Treatment

Info:

Periodical:

Solid State Phenomena (Volume 354)

Pages:

49-60

DOI:

https://doi.org/10.4028/p-fNGYk1

Citation:

Cite this paper

Online since:

December 2023

Authors:

Widyastuti Widyastuti*, Ruri Agung Wahyuono, Rindang Fajarin, Sulistijono Sulistijono, Arif Nur Hakim, Lilis Mariani, Herry Purnomo, Ibrahim Fatahillah Hizbul Islam

Keywords:

High Thermal Resistance, Low Reflection-Loss, Thermal Barrier Coating, Tip Nose Cone, Vector Network Analysis, Yttria-Stabilized Zirconia

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2023 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] A. Nag, R. R. Rao, and P. K. Panda, "High temperature ceramic radomes (HTCR) – A review," Ceramics International. Elsevier Ltd, 2021.

DOI: 10.1016/j.ceramint.2021.04.203

[2] E. I. Suzdal'tsev, "Radio-Transparent Ceramics: Yesterday, Today, Tomorrow," Refractories and Industrial Ceramics, vol. 55, no. 5, p.377–390, Jan. 2015.

DOI: 10.1007/s11148-015-9731-6

[3] D. Davis, F. Mathew, N. Seenivasaraja, and U. Students, "Design and Analysis of Different Types of Aircraft Radome," International Journal of Engineering Research & Technology (IJERT), 2015, [Online]. Available: www.ijert.org

[4] S. K. Basha, M. Kolli, and M. V. Jagannadha Raju, "Parametric optimization of Edm on Hastelloy C-276 Using Taguchi L18 Technique," International Journal of Engineering and Technology(UAE), vol. 7, no. 2.7 Special Issue 7, p.714–716, 2018.

DOI: 10.14419/ijet.v7i2.7.10929

[5] A. Karimi, R. Soltani, M. Ghambari, and H. Fallahdoost, "High temperature oxidation resistance of plasma sprayed and surface treated YSZ coating on Hastelloy X," Surf Coat Technol, vol. 321, p.378–385, Jul. 2017.

DOI: 10.1016/j.surfcoat.2017.05.002

[6] D. Tejero-Martin, M. Rezvani Rad, A. McDonald, and T. Hussain, "Beyond Traditional Coatings: A Review on Thermal-Sprayed Functional and Smart Coatings," Journal of Thermal Spray Technology, vol. 28, no. 4. Springer New York LLC, p.598–644, Apr. 17, 2019.

DOI: 10.1007/s11666-019-00857-1

[7] P. Baldissera and C. Delprete, "Finite Element Thermo-Structural Methodology for Investigating Diesel Engine Pistons with Thermal Barrier Coating," SAE Int J Engines, vol. 12, no. 1, p.57–68, Dec. 2018.

DOI: 10.4271/03-12-01-0006

[8] M. Kostecki and A. R. Olszyna, "Thermal properties of zirconium oxide-based ceramic targets modified with oxides of rare earth elements," in Defect and Diffusion Forum, Trans Tech Publications Ltd, 2011, p.676–681.

DOI: 10.4028/www.scientific.net/DDF.312-315.676

[9] P. M. Jadhav and N. S. Kumar Reddy, "Wear behavior of carbide tool coated with Yttria-stabilized zirconia nano particles.," in IOP Conference Series: Materials Science and Engineering, Institute of Physics Publishing, May 2018.

DOI: 10.1088/1757-899X/346/1/012007

[10] S. A. Sadeghi-Fadaki, K. Zangeneh-Madar, and Z. Valefi, "The adhesion strength and indentation toughness of plasma-sprayed yttria stabilized zirconia coatings," Surf Coat Technol, vol. 204, no. 14, p.2136–2141, Apr. 2010.

DOI: 10.1016/j.surfcoat.2009.11.035

[11] C. Gao, Y. Jiang, D. Cai, J. Xu, and W. Xiao, "Effect of temperature on the microwave-absorbing properties of an al2o3–mosi2 coating mixed with copper," Coatings, vol. 11, no. 8, Aug. 2021.

DOI: 10.3390/coatings11080940

[12] C. Yang, Z. Li, L. Liu, F. Ye, and S. Wu, "High temperature behavior of a diffusion barrier coating evolved from ZrO2 precursor layer," Surf Coat Technol, vol. 357, p.384–392, Jan. 2019.

DOI: 10.1016/j.surfcoat.2018.10.022

[13] K. Kim and W. Kim, "Effect of heat treatment on microstructure and thermal conductivity of thermal barrier coating," Materials, vol. 14, no. 24, Dec. 2021.

DOI: 10.3390/ma14247801

[14] M. Mrdak, B. Medjo, D. Veljić, M. Arsić, and M. Rakin, "The influence of powder feed rate on mechanical properties of atmospheric plasma spray (APS) Al-12Si coating," Reviews on Advanced Materials Science, vol. 58, no. 1, p.75–81, Jan. 2019.

DOI: 10.1515/rams-2019-0007

[15] Z. F. Zhou, M. Y. Hu, H. Xin, B. Chen, and G. X. Wang, "Experimental and theoretical studies on the droplet temperature behavior of R407C two-phase flashing spray," Int J Heat Mass Transf, vol. 136, p.664–673, Jun. 2019.

DOI: 10.1016/j.ijheatmasstransfer.2019.03.042

[16] S. M. Yunus and ± Johari, "EFFECT OF ISOTHERMAL OXIDATION ON ADHESION STRENGTH FOR TYPICAL YSZ AND RARE-EARTH LZO THERMAL BARRIER COATING," 2020. [Online]. Available: http://www.qjoest.com

[17] D. Dubbink, G. Koster, and G. Rijnders, "Growth mechanism of epitaxial YSZ on Si by Pulsed Laser Deposition," Sci Rep, vol. 8, no. 1, Dec. 2018.

DOI: 10.1038/s41598-018-24025-7

[18] S. Mahalingam, A. Manap, S. M. Yunus, and N. Afandi, "Thermal stability of rare earth-pysz thermal barrier coating with high-resolution transmission electron microscopy," Coatings, vol. 10, no. 12, p.1–19, Dec. 2020.

DOI: 10.3390/coatings10121206

[19] A. M. Raynal, D. F. Dubbert, B. L. Burns, and W. H. Hensley, "Radome Effects on Coherent Change Detection Radar Systems," in SPIE Defense + Security, 2015. [Online]. Available: www.sandia.gov/radar

DOI: 10.1117/12.2179180
