Controlled Preform Consolidation for Manufacturing Difficult Resin System Composites

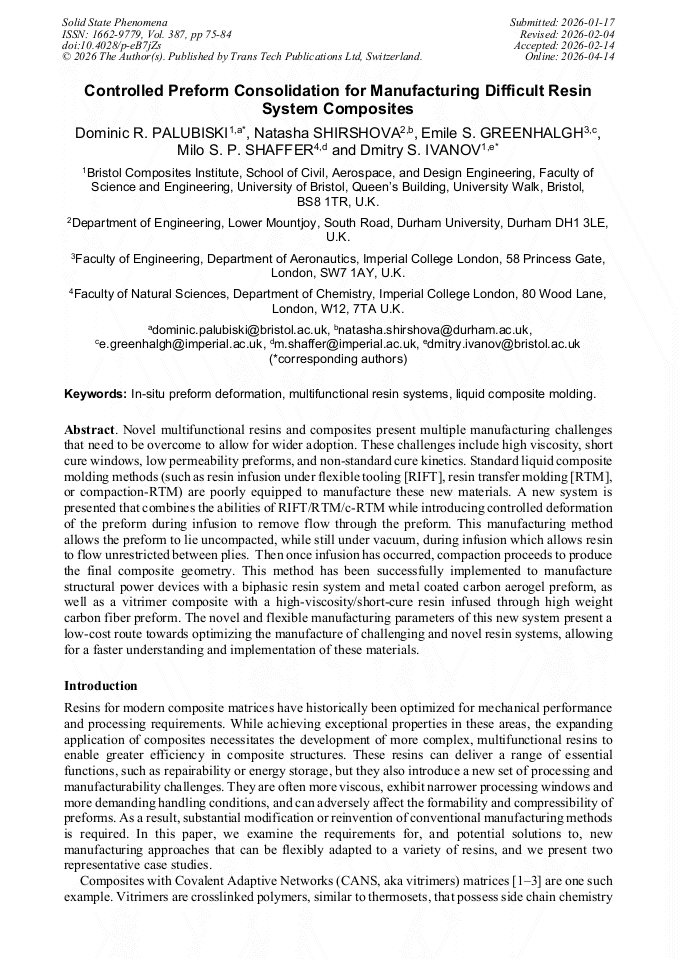

Article Preview
View Pdf By email

Abstract:

Novel multifunctional resins and composites present multiple manufacturing challenges that need to be overcome to allow for wider adoption. These challenges include high viscosity, short cure windows, low permeability preforms, and non-standard cure kinetics. Standard liquid composite molding methods (such as resin infusion under flexible tooling [RIFT], resin transfer molding [RTM], or compaction-RTM) are poorly equipped to manufacture these new materials. A new system is presented that combines the abilities of RIFT/RTM/c-RTM while introducing controlled deformation of the preform during infusion to remove flow through the preform. This manufacturing method allows the preform to lie uncompacted, while still under vacuum, during infusion which allows resin to flow unrestricted between plies. Then once infusion has occurred, compaction proceeds to produce the final composite geometry. This method has been successfully implemented to manufacture structural power devices with a biphasic resin system and metal coated carbon aerogel preform, as well as a vitrimer composite with a high-viscosity/short-cure resin thought high weight carbon fiber preform. The novel and flexible manufacturing parameters of this new system present a low-cost route towards optimizing the manufacture of challenging and novel resin systems, allowing for a faster understanding and implementation of these materials.

You have full access to the following eBook
Composites Forming Processes Read eBook

Info:

Periodical:

Solid State Phenomena (Volume 387)

Pages:

75-84

DOI:

https://doi.org/10.4028/p-eB7jZs

Citation:

Cite this paper

Online since:

April 2026

Authors:

Dominic R. Palubiski*, Natasha Shirshova, Emile S. Greenhalgh, Milo S. P. Shaffer, Dmitry S. Ivanov

Keywords:

In Situ Preform Deformation, Liquid Composite Molding, Multifunctional Resin Systems

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] Leibler L, Tournilhac F, Capelot M, Montarnal D. Silica-Like Malleable Materials from Permanent Organic Networks. Science (1979) 2011;334:965–8.

DOI: 10.1126/science.1211649

Google Scholar

[2] Sharma H, Rana S, Singh P, Hayashi M, Binder WH, Rossegger E, et al. Self-healable fiber-reinforced vitrimer composites: overview and future prospects. RSC Adv 2022;12:32569–82.

DOI: 10.1039/D2RA05103F

Google Scholar

[3] Schenk V, Labastie K, Destarac M, Olivier P, Guerre M. Vitrimer composites: current status and future challenges. Mater Adv 2022;3:8012–29.

DOI: 10.1039/D2MA00654E

Google Scholar

[4] Palubiski DR, Longana ML, Dulieu-Barton JM, Hamerton I, Ivanov DS. Multi-matrix continuously-reinforced composites: A novel route to sustainable repair of composite structures. Mater Des 2023;235:112446.

DOI: 10.1016/J.MATDES.2023.112446

Google Scholar

[5] Kandemir A, Longana ML, Hamerton I, Eichhorn SJ. Developing aligned discontinuous flax fibre composites: Sustainable matrix selection and repair performance of vitrimers. Compos B Eng 2022;243:110139.

DOI: 10.1016/j.compositesb.2022.110139

Google Scholar

[6] Messmer LL, Kandemir A, Yavuz BO, Longana ML, Hamerton I. Mechanical Behaviour of As-Manufactured and Repaired Aligned Discontinuous Basalt Fibre-Reinforced Vitrimer Composites. Polymers (Basel) 2024;16:1089.

DOI: 10.3390/polym16081089

Google Scholar

[7] Rath JE, Nettig D, Palubiski DR, Schüppstuhl T, Ivanov DS. Single point incremental forming of multi-matrix continuously-reinforced composites: A feasibility study. Material Forming - ESAFORM 2025, Paestrum: 2025, p.517–25.

DOI: 10.21741/9781644903599-56

Google Scholar

[8] Palubiski DR, Longana ML, Hamerton I, Dulieu-Barton JM, Ivanov DS. Composite forming post-manufacture: reducing complexity and de-risking manufacture. In: Anna Carla Araujo, Arthur Cantarel, France Chabert, Adrian Korycki, Philippe Olivier, Fabrice Schmidt, editors. Material Forming – ESAFORM 2024, Toulouse: 2024, p.440–8.

DOI: 10.21741/9781644903131-49

Google Scholar

[9] Shirshova N, Qian H, Shaffer MSP, Steinke JHG, Greenhalgh ES, Curtis PT, et al. Structural composite supercapacitors. Compos Part A Appl Sci Manuf 2013;46:96–107.

DOI: 10.1016/J.COMPOSITESA.2012.10.007

Google Scholar

[10] Nguyen S, Anthony DB, Katafiasz T, Qi G, Razavi S, Senokos E, et al. Manufacture and characterisation of a structural supercapacitor demonstrator. Compos Sci Technol 2023:110339.

DOI: 10.1016/j.compscitech.2023.110339

Google Scholar

[11] Greenhalgh ES, Nguyen S, Valkova M, Shirshova N, Shaffer MSP, Kucernak ARJ. A critical review of structural supercapacitors and outlook on future research challenges. Compos Sci Technol 2023;235:109968.

DOI: 10.1016/j.compscitech.2023.109968

Google Scholar

[12] Wendong Q, Dent J, Arrighi V, Cavalcanti L, Shaffer MSP, Shirshova N. Biphasic epoxy-ionic liquid structural electrolytes: minimising feature size through cure cycle and multifunctional block-copolymer addition. Multifunctional Materials 2021;4:035003.

DOI: 10.1088/2399-7532/ac1ea7

Google Scholar

[13] Williams C, Summerscales J, Grove S. Resin Infusion under Flexible Tooling (RIFT): a review. Compos Part A Appl Sci Manuf 1996;27:517–24.

DOI: 10.1016/1359-835X(96)00008-5

Google Scholar

[14] Potter K. Resin Transfer Moulding. 1st ed. London: Springer Netherlands; 1997.

Google Scholar

[15] Bickerton S, Kelly PA. Compression resin transfer moulding (CRTM) in polymer matrix composites. Manufacturing Techniques for Polymer Matrix Composites (PMCs), Elsevier; 2012, p.348–80.

DOI: 10.1533/9780857096258.3.348

Google Scholar

[16] Alms JB, Advani SG, Glancey JL. Liquid Composite Molding control methodologies using Vacuum Induced Preform Relaxation. Compos Part A Appl Sci Manuf 2011;42:57–65.

DOI: 10.1016/j.compositesa.2010.10.002

Google Scholar

[17] Textreme n.d. https://textreme.com/products/woven-fabrics/carbon (accessed December 18, 2025).

Google Scholar

[18] Mouser Electronics. 3M AL-36FR n.d. https://www.mouser.co.uk/ProductDetail/3M-Electronic-Specialty/AL-36FR?qs=alMsqbhs9UomKXZ%252BM%252B6w2A%3D%3D&srsltid=AfmBOory2bL6omN80efmMsummpR-Y6h1odBckwgRdnqra6Nxvi5qLxA- (accessed November 24, 2025).

Google Scholar

[19] Greenhalgh ES, Nguyen S, Asp LE, Bici A, Bismarck A, Fam D, et al. Characterization and Reporting Protocols for Structural Power Composites: A Perspective. Adv Energy Mater 2025;15.

DOI: 10.1002/aenm.202404702

Google Scholar

[20] Huntsman. Tactix 742 n.d. https://products.huntsman.com/products/tactix-742-resin (accessed November 24, 2025).

Google Scholar

[21] Merck. Isophorodiamine n.d. https://www.sigmaaldrich.com/GB/en/product/mm/ 814123?srsltid=AfmBOopeBUqRLvRMjTqcdcm7PdqLRITjGL2jZoef_2_JBG7j7DNx4Byi (accessed November 24, 2025).

Google Scholar

[22] Iolitec. 1-Ethyl-3-methylimidazolium bis(trifluoromethylsulfonyl)imide n.d. https://iolitec.de/products/ionic_liquids/catalogue/imidazolium-based/il-0023 (accessed November 24, 2025).

Google Scholar

[23] Mallinda n.d. https://mallinda.com/product/ (accessed November 24, 2025).

Google Scholar
