Cost-Effective One-Shot Stamping of Steel-Based High-Performance Lightweight Multi-Material Structures

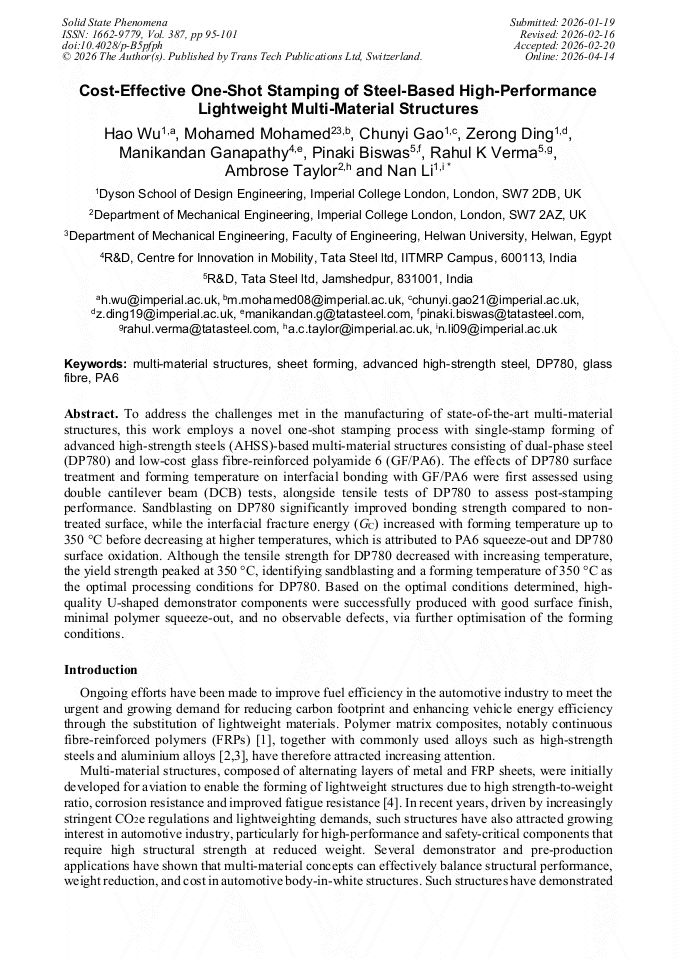

Article Preview
View Pdf By email

Abstract:

To address the challenges met in the manufacturing of state-of-the-art multi-material structures, this work employs a novel one-shot stamping process with single-stamp forming of advanced high-strength steels (AHSS)-based multi-material structures consisting of dual-phase steel (DP780) and low-cost glass fibre-reinforced polyamide 6 (GF/PA6). The effects of DP780 surface treatment and forming temperature on interfacial bonding with GF/PA6 were first assessed using double cantilever beam (DCB) tests, alongside tensile tests of DP780 to assess post-stamping performance. Sandblasting on DP780 significantly improved bonding strength compared to non-treated surface, while the interfacial fracture energy (GC) increased with forming temperature up to 350 °C before decreasing at higher temperatures, which is attributed to PA6 squeeze-out and DP780 surface oxidation. Although the tensile strength for DP780 decreased with increasing temperature, the yield strength peaked at 350 °C, identifying sandblasting and a forming temperature of 350 °C as the optimal processing conditions for DP780. Based on the optimal conditions determined, high-quality U-shaped demonstrator components were successfully produced with good surface finish, minimal polymer squeeze-out, and no observable defects, via further optimisation of the forming conditions.

You have full access to the following eBook
Composites Forming Processes Read eBook

Info:

Periodical:

Solid State Phenomena (Volume 387)

Pages:

95-101

DOI:

https://doi.org/10.4028/p-B5pfph

Citation:

Cite this paper

Online since:

April 2026

Authors:

Hao Wu*, Mohamed Mohamed, Chunyi Gao, Zerong Ding, Manikandan Ganapathy, Pinaki Biswas, Rahul K. Verma, Ambrose Taylor, Nan Li

Keywords:

Advanced High-Strength Steel, DP780, Glass Fibre, Multi-Material Structures, PA6, Sheet Forming

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] F.L. Matthews, R.D. Rawlings, Composite Materials, Woodhead Publishing, 1999.

Google Scholar

[2] M. Tisza, I. Czinege, Comparative study of the application of steels and aluminium in lightweight production of automotive parts, International Journal of Lightweight Materials and Manufacture 1 (2018) 229–238.

DOI: 10.1016/j.ijlmm.2018.09.001

Google Scholar

[3] E.A. Starke, J.T. Staley, Application of modern aluminum alloys to aircraft, Progress in Aerospace Sciences 32 (1996) 131–172.

DOI: 10.1016/0376-0421(95)00004-6

Google Scholar

[4] A.D. Vlot, Glare: History of the Development of a New Aircraft Material, Springer Dordrecht, 2001.

Google Scholar

[5] M. Harhash, T. Fischer, M. Grubenmann, W. Hua, J. Heingärtner, M. Kuhtz, M. Gude, P. Hora, G. Ziegmann, H. Palkowski, Top-hat crashboxes of thermoplastic fibre-metal-laminates processed in one-step thermoforming: Experimental and numerical study, Composites Part B: Engineering 226 (2021).

DOI: 10.1016/j.compositesb.2021.109367

Google Scholar

[6] Y. Guo, C. Zhai, F. Li, X. Zhu, F. Xu, X. Wu, Formability, defects and strengthening effect of steel/CFRP structures fabricated by using the differential temperature forming process, Composite Structures 216 (2019) 32–38.

DOI: 10.1016/j.compstruct.2019.01.106

Google Scholar

[7] J. Dau, C. Lauter, U. Damerow, W. Homberg, T. Tröster, Multi-material systems for tailored automotive structural components, in: 18th International Conferences on Composite Materials, International Committee on Composite Materials, Jeju Island, 2011.

Google Scholar

[8] G. Gardiner, Is the BMW 7 series the future of autocomposites?, CompositesWorld (2016).

Google Scholar

[9] B. Blackman, A. Kinloch, Protocol for the Determination of the Mode I Adhesive Fracture Energy, GIC, of Structural Adhesives using the Double Cantilever Beam (DCB) and Tapered Double Cantilever Beam (TDCB) Specimens, European Structural Integrity Society 00–08 (2000).

DOI: 10.3403/30148587u

Google Scholar

[10] G.C. Krishna, M.J. Quamar, N.K. Babu, G.V.S. Kumar, B. Bandi, M.K. Talari, Investigations of Microstructure and Mechanical Properties of Post-Weld Heat-Treated DP780 Steel TIG Welds, Fusion Science and Technology 80 (2024) 215–229.

DOI: 10.1080/15361055.2023.2219830

Google Scholar
