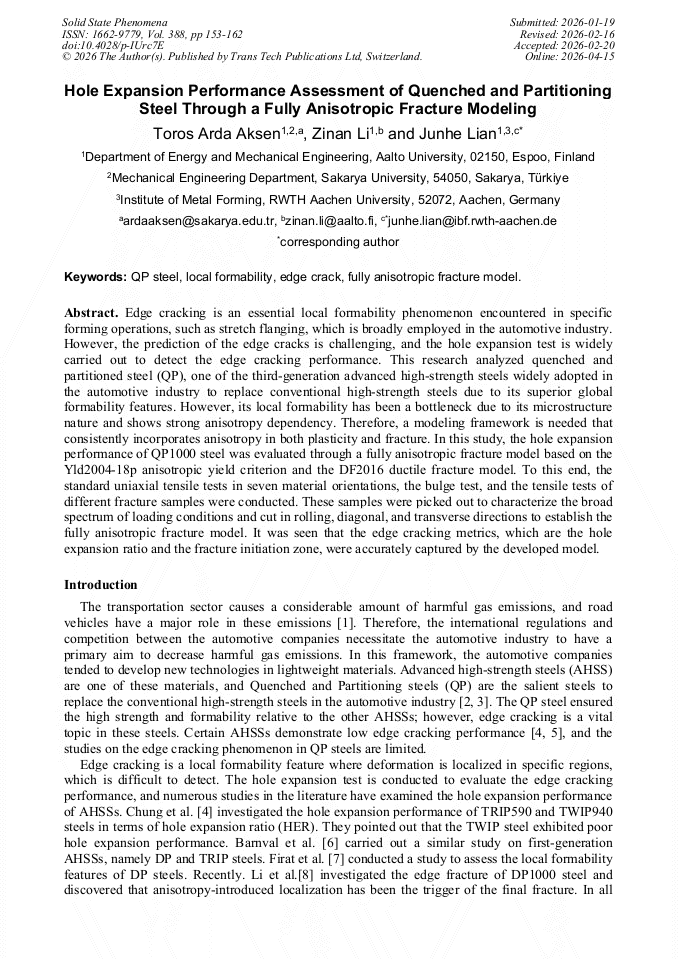

Hole Expansion Performance Assessment of Quenched and Partitioning Steel through a Fully Anisotropic Fracture Modeling

Abstract:

Edge cracking is an essential local formability phenomenon encountered in specific forming operations, such as stretch flanging, which is broadly employed in the automotive industry. However, the prediction of the edge cracks is challenging, and the hole expansion test is widely carried out to detect the edge cracking performance. This research analyzed quenched and partitioned steel (QP), one of the third-generation advanced high-strength steels widely adopted in the automotive industry to replace conventional high-strength steels due to its superior global formability features. However, its local formability has been a bottleneck due to its microstructure nature and shows strong anisotropy dependency. Therefore, a modeling framework is needed that consistently incorporates anisotropy in both plasticity and fracture. In this study, the hole expansion performance of QP1000 steel was evaluated through a fully anisotropic fracture model based on the Yld2004-18p anisotropic yield criterion and the DF2016 ductile fracture model. To this end, the standard uniaxial tensile tests in seven material orientations, the bulge test, and the tensile tests of different fracture samples were conducted. These samples were picked out to characterize the broad spectrum of loading conditions and cut in rolling, diagonal, and transverse directions to establish the fully anisotropic fracture model. It was seen that the edge cracking metrics, which are the hole expansion ratio and the fracture initiation zone, were accurately captured by the developed model.

• Periodical: Solid State Phenomena (Volume 388)
• Pages: 153-162
• DOI: https://doi.org/10.4028/p-IUrc7E
• Online since: April 2026
• Authors: Toros Arda Aksen*, Zinan Li, Junhe Lian
• Keywords: Edge Crack, Fully Anisotropic Fracture Model, Local Formability, QP Steel

References

[1] A.L.C. Ferrer, A.M.T. Thomé, Carbon emissions in transportation: a synthesis framework, Sustain 15 (2023) 8475.

[2] L Wang, J.G. Speer, (2013). Quenching and Partitioning Steel Heat Treatment. Metall. Microstruct. Anal. 2 (2013) 268-281.

DOI: 10.1007/s13632-013-0082-8

[3] D.Q. Zou, S.H. Li, J. He, B. Gu, Y.F. Li, The deformation induced martensitic transformation and mechanical behavior of quenching and partitioning steels under complex loading process. Mater. Sci. Eng: A, 715 (2018) 243-256.

DOI: 10.1016/j.msea.2018.01.011

[4] K. Chung, N. Ma, T. Park, D. Kim, D. Yoo, C.A. Kim, A modified damage model for advanced high strength steel sheets, Int. J. Plast. 27 (2011) 1485-1511.

DOI: 10.1016/j.ijplas.2011.01.007

[5] Z. Li, Y. Chang, J. Rong, J. Min, J. Lian, J. Edge fracture of the first and third-generation high-strength steels: DP1000 and QP1000. IOP Conf. Ser.: Mater. Sci. Eng., 1284 (2023) 012021.

DOI: 10.1088/1757-899x/1284/1/012021

[6] V.K. Barnwal, S.Y. Lee, S.Y. Yoon, J.H. Kim, F. Barlat, Fracture characteristics of advanced high strength steels during hole expansion test, Int. J. Fract. 224 (2020) 217-233.

DOI: 10.1007/s10704-020-00458-y

[7] M. Firat, T.A. Akşen, B. Şener, E. Esener A numerical prediction for hole-splitting damage of DP steels based on plastic work criterion using a polynomial stress potential, Exp. Tech. 48 (2024) 501–522.

DOI: 10.1007/s40799-023-00676-8

[8] Z. Li, Y. Chang, W. Liu, J. Lian, Predicting edge fracture in dual-phase steels: Significance of anisotropy-induced localization, Int. J. Mech. Sci. 274 (2024) 109255.

DOI: 10.1016/j.ijmecsci.2024.109255

[9] M. Madrid, C.J. Van Tyne, S. Sriram, E.J. Pavlina, J. Hu, K.D. Clarke, Hole expansion ratio in intercritically annealed QP 980/1180 steel grades as a function of testing condition. IOP Conf Ser: Mater Sci Eng 418 (2018) 012083.

DOI: 10.1088/1757-899x/418/1/012083

[10] Z. Li, F. Shen, Y. Liu, C. Hartmann, R. Norz, S. Münstermann, W. Volk, J. Min, J. Lian Anisotropic fracture behavior of the 3rd generation advanced high-strength – Quenching and Partitioning steels: Experiments and simulation, J. Mater. Res. Technol. 30 (2024) 9395–9414.

DOI: 10.1016/j.jmrt.2024.05.228

[11] Z. Li, Influence of anisotropy on edge fracture of advanced high strength steels, Doctoral Thesis. Department of Mechanical Engineering. Aalto University (2025) Finland.

[12] A. Kozłowska, G. Kokot, K. Matu,s A. Grajcar, Monitoring the phase evolution and fracture behavior of advanced multiphase QP steel using EBSD technique and digital image correlation, Theor. Appl. Fract. Mech. 133 (2024) 104520.

DOI: 10.1016/j.tafmec.2024.104520

[13] C. Pelligra, J. Samei, S.B. Amirkhiz, L.G. Hector, D.S. Wilkinson, Microstrain partitioning. Transformation induced plasticity. and the evolution of damage during deformation of an austenitic-martensitic 1.5 GPa quench and partition steel, Mater. Sci. Eng.: A 895 (2024) 146181.

DOI: 10.1016/j.msea.2024.146181

[14] E. Dai, Z. Lv, P. Yuan, G. Liu, N. Guo, Z. Liu, B. Tang, Ductile fracture of anisotropic QP980 steel sheet by using the isotropic/anisotropic modified Mohr-Coulomb models, Eng. Fract. Mech. 290 (2023) 109522.

DOI: 10.1016/j.engfracmech.2023.109522

[15] H. Akhtar, T.S. Alhalaybeh, X. Fang, S.U.D. Asbah, S. Chao, Y. Lou, Fracture modeling of QP980 steel: Evaluating the Rice–Tracey and DF2016 criteria under diverse loading states, Mater. 18 (2025) 1303.

DOI: 10.3390/ma18061303

[16] T.A. Aksen, Z. Li and J. Lian, Anisotropic characterization and modeling of quenching and partitioning steel: predicting formability and hole expansion performance: submitted for publication (2026).

[17] Information on.

[18] F. Barlat, H. Aretz, J.W. Yoon, M.E. Karabin, J.C. Brem, R.E. Dick, Linear transfomation-based anisotropic yield functions, Int. J. Plast. 21 (2005) 1009–1039.

DOI: 10.1016/j.ijplas.2004.06.004

[19] Y. Lou, L. Chen, T. Clausmeyer, E. Tekkaya, A.E. Yoon, Modeling of ductile fracture from shear to balanced biaxial biaxial tension for sheet metals, Int. J. Solids Struct. 112 (2017) 169–184.

DOI: 10.1016/j.ijsolstr.2016.11.034
