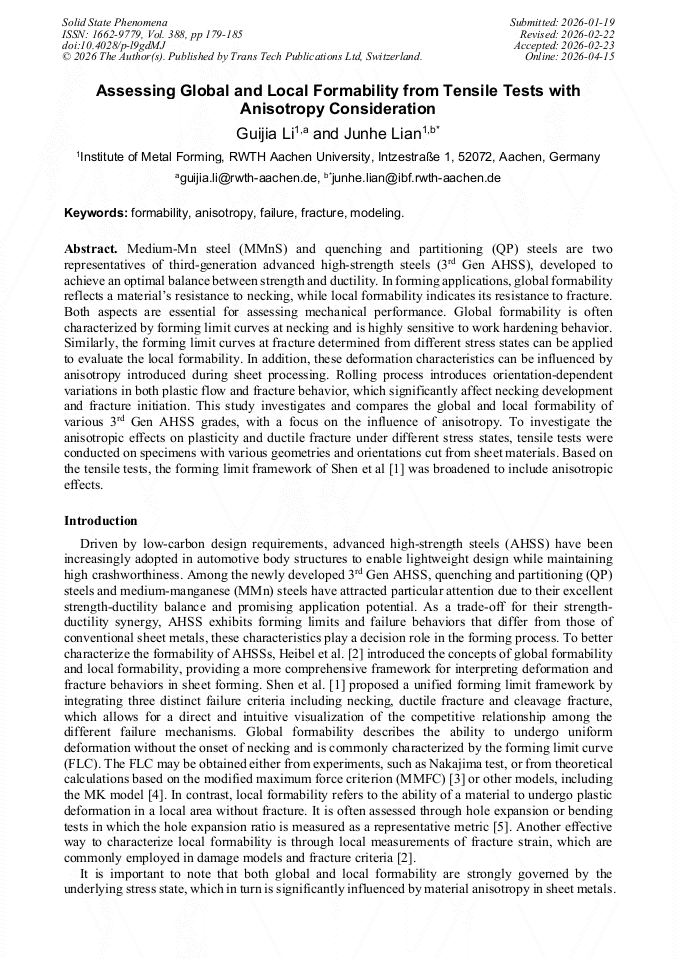

Assessing Global and Local Formability from Tensile Tests with Anisotropy Consideration

Abstract:

Medium-Mn steel (MMnS) and quenching and partitioning (QP) steels are two representatives of third-generation advanced high-strength steels (3^rd Gen AHSS), developed to achieve an optimal balance between strength and ductility. In forming applications, global formability reflects a material’s resistance to necking, while local formability indicates its resistance to fracture. Both aspects are essential for assessing mechanical performance. Global formability is often characterized by the forming limit curves at necking and is highly sensitive to work hardening behavior. Similarly, the forming limit curves at fracture determined from different stress states can be applied to evaluate the local formability. In addition, these deformation characteristics can be influenced by anisotropy introduced during sheet processing. Rolling process introduces orientation-dependent variations in both plastic flow and fracture behavior, which significantly affect necking development and fracture initiation. This study investigates and compares the global and local formability of various 3^rd Gen AHSS grades, with a focus on the influence of anisotropy. To investigate the anisotropic effects on plasticity and ductile fracture under different stress states, tensile tests were conducted on specimens with various geometries and orientations cut from sheet materials. Based on the tensile tests, the forming limit framework of Shen et al [1] was broadened to include anisotropic effects.

• Periodical: Solid State Phenomena (Volume 388)
• Pages: 179-185
• DOI: https://doi.org/10.4028/p-l9gdMJ
• Online since: April 2026
• Authors: Guijia Li*, Jun He Lian
• Keywords: Anisotropy, Failure, Formability, Fracture, Modeling

References

[1] F. Shen, Y. Sparrer, J. Rao, M. Könemann, S. Münstermann, and J. Lian, "A forming limit framework accounting for various failure mechanisms: Localization, ductile and cleavage fracture," Int. J. Plast., vol. 175, p.103921, Apr. 2024.

DOI: 10.1016/j.ijplas.2024.103921

[2] S. Heibel, T. Dettinger, W. Nester, T. Clausmeyer, and A. E. Tekkaya, "Damage Mechanisms and Mechanical Properties of High-Strength Multiphase Steels," Materials, vol. 11, no. 5, p.761, May 2018.

DOI: 10.3390/ma11050761

[3] P. Hora, L. Tong, and B. Berisha, "Modified maximum force criterion, a model for the theoretical prediction of forming limit curves," Int. J. Mater. Form., vol. 6, no. 2, p.267–279, Jun. 2013.

DOI: 10.1007/s12289-011-1084-1

[4] Z. Marciniak and K. Kuczyński, "Limit strains in the processes of stretch-forming sheet metal," Int. J. Mech. Sci., vol. 9, no. 9, p.609–620, Sep. 1967.

DOI: 10.1016/0020-7403(67)90066-5

[5] F. Shen et al., "Local formability of medium-Mn steel," J. Mater. Process. Technol., vol. 299, p.117368, Jan. 2022.

DOI: 10.1016/j.jmatprotec.2021.117368

[6] Z. Li et al., "Anisotropic fracture behavior of the 3rd generation advanced high-strength – Quenching and Partitioning steels: Experiments and simulation," J. Mater. Res. Technol., vol. 30, p.9395–9414, May 2024.

DOI: 10.1016/j.jmrt.2024.05.228

[7] J. Lian et al., "An evolving non-associated Hill48 plasticity model accounting for anisotropic hardening and r-value evolution and its application to forming limit prediction," Int. J. Solids Struct., vol. 151, p.20–44, Oct. 2018.

DOI: 10.1016/j.ijsolstr.2017.04.007

[8] J. Lian, M. Sharaf, F. Archie, and S. Münstermann, "A hybrid approach for modelling of plasticity and failure behaviour of advanced high-strength steel sheets," Int. J. Damage Mech., vol. 22, no. 2, p.188–218, Mar. 2013.

DOI: 10.1177/1056789512439319
