Modeling Cutting Forces for Five Axis Milling of Sculptured Surfaces

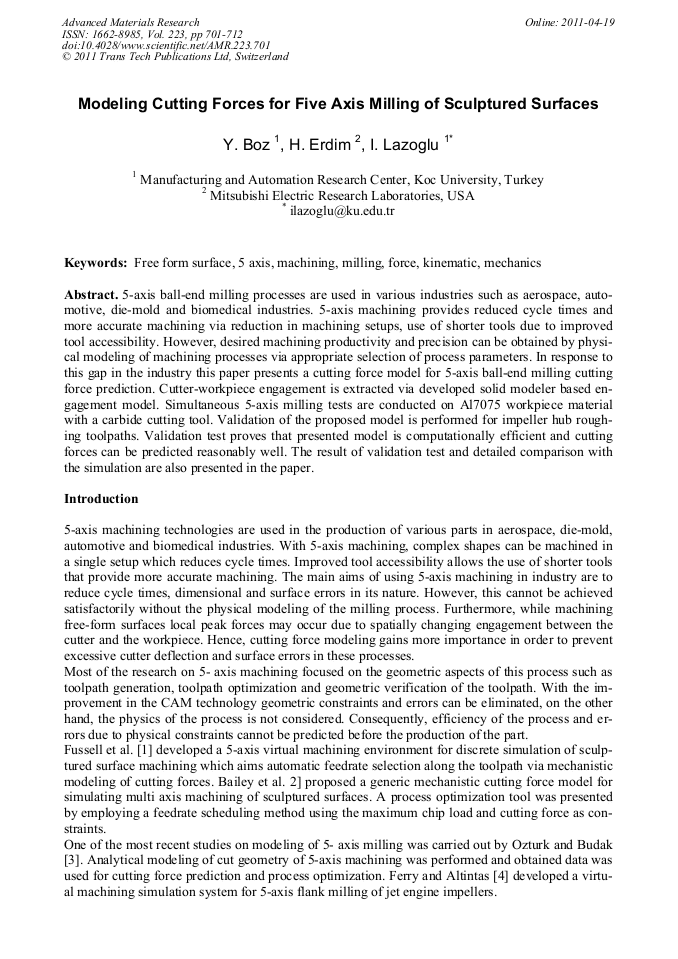

Article Preview

Abstract:

5-axis ball-end milling processes are used in various industries such as aerospace, automotive, die-mold and biomedical industries. 5-axis machining provides reduced cycle times and more accurate machining via reduction in machining setups, use of shorter tools due to improved tool accessibility. However, desired machining productivity and precision can be obtained by physical modeling of machining processes via appropriate selection of process parameters. In response to this gap in the industry this paper presents a cutting force model for 5-axis ball-end milling cutting force prediction. Cutter-workpiece engagement is extracted via developed solid modeler based engagement model. Simultaneous 5-axis milling tests are conducted on Al7075 workpiece material with a carbide cutting tool. Validation of the proposed model is performed for impeller hub roughing toolpaths. Validation test proves that presented model is computationally efficient and cutting forces can be predicted reasonably well. The result of validation test and detailed comparison with the simulation are also presented in the paper.

You might also be interested in these eBooks
Modelling of Machining Operations View Preview

Info:

Periodical:

Advanced Materials Research (Volume 223)

Pages:

701-712

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.223.701

Citation:

Cite this paper

Online since:

April 2011

Authors:

Yaman Boz, Huseyin Erdim, Ismail Lazoglu

Keywords:

5-Axis, Force, Freeform Surfaces, Kinematics, Machining, Mechanic, Milling

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2011 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] B.K. Fussell, R.B. Jerard, J.G. Hemmett, Modeling of cutting geometry and forces for 5-axis sculptured surface machining, Computer-Aided Design, 35 (2003) 333-346.

DOI: 10.1016/s0010-4485(02)00055-6

Google Scholar

[2] T. Bailey, M.A. Elbestawi, T.I. El-Wardany, P. Fitzpatrick, Generic Simulation Approach for Multi-Axis Machining, Part 1: Modeling Methodology, Journal of Manufacturing Science and Engineering, 124 (2002) 624-633.

DOI: 10.1115/1.1468863

Google Scholar

[3] E. Ozturk, E. Budak, Modeling of 5-Axis Milling Processes, Machining Science and Technology: An International Journal, 11 (2007) 287-311.

Google Scholar

[4] W.B. Ferry, Y. Altintas, Virtual Five-Axis Flank Milling of Jet Engine Impellers—Part I: Mechanics of Five-Axis Flank Milling, Journal of Manufacturing Science & Engineering, 130 (2008) 51-51.

DOI: 10.1115/1.2815761

Google Scholar

[5] H. Erdim, I. Lazoglu, B. Ozturk, Feedrate scheduling strategies for free-form surfaces, International Journal of Machine Tools and Manufacture, 46 (2006) 747-757.

DOI: 10.1016/j.ijmachtools.2005.07.036

Google Scholar

[6] H. Erdim, I. Lazoglu, M. Kaymakci, Free-Form Surface Machining and Comparing Feedrate Scheduling Strategies Machining Science and Technology: An International Journal, 11 (2007) 117 - 133.

DOI: 10.1080/10910340601172206

Google Scholar

[7] H.B. Voelcker and W.A. Hunt. The role of solid modeling in machining–process modeling and nc verification. In SAE Tech. Paper 810195, Warrendale, PA, USA, 1981.

DOI: 10.4271/810195

Google Scholar

[8] W. Ferry and D. Yip-Hoi. Cutter-workpiece engagement calculations by parallel slicing for fiveaxis flank milling of jet engine impellers. Journal of Manufacturing Science and Engineering, 130:051011–12, 2008.

DOI: 10.1115/1.2927449

Google Scholar

[9] Satyandra K. Gupta, Sunil K. Saini, Brent W. Spranklin, and Zhiyang Yao. Geometric algorithms for computing cutter engagement functions in 2.5d milling operations. Comput. Aided Des., 37(14):1469–1480, 2005.

DOI: 10.1016/j.cad.2005.03.001

Google Scholar

[10] B. M. Imani, M. H. Sadeghi, and M. A. Elbestawi. An improved process simulation system for ball-end milling of sculptured surfaces. International Journal of Machine Tools and Manufacture, 38(9):1089 – 1107, 1998.

DOI: 10.1016/s0890-6955(97)00074-6

Google Scholar

[11] Yasumasa Kawashima, Kumiko Itoh, Tomotoshi Ishida, Shiro Nonaka, and Kazuhiko Ejiri. A flexible quantitative method for nc machining verification using a space-division based solid model. Vis. Comput., 7(2-3):149–157, 1991.

DOI: 10.1007/bf01901185

Google Scholar

[12] A. D. Spence and Y. Altintas. A solid modeller based milling process simulation and planning system. Journal of Engineering for Industry, 116:61–69, 1994.

DOI: 10.1115/1.2901810

Google Scholar
