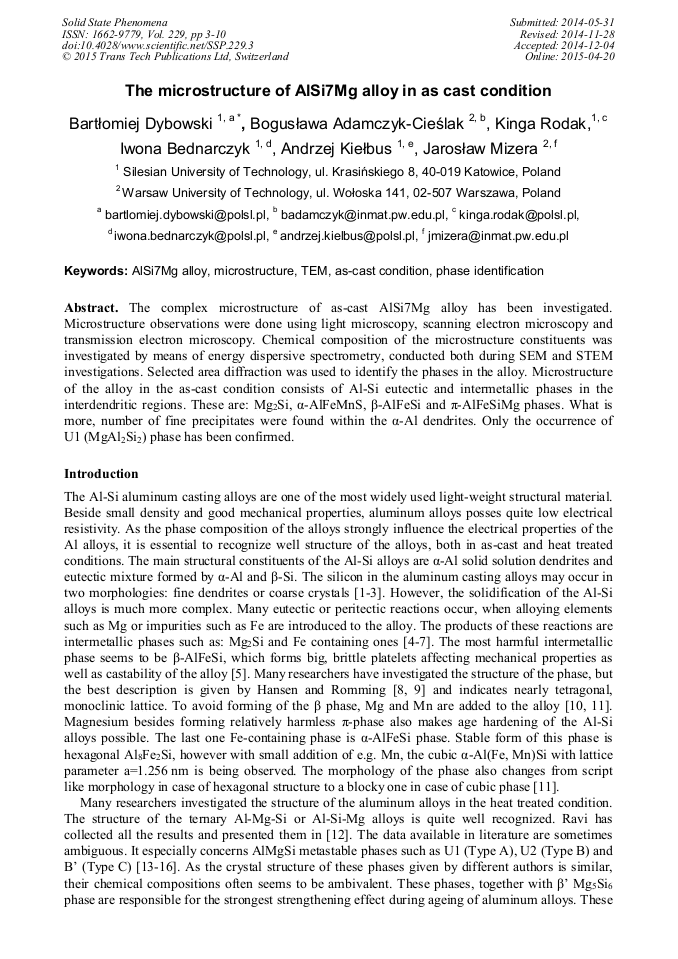

The Microstructure of AlSi7Mg Alloy in as Cast Condition

Abstract:

The complex microstructure of as-cast AlSi7Mg alloy has been investigated. Microstructure observations were done using light microscopy, scanning electron microscopy and transmission electron microscopy. Chemical composition of the microstructure constituents was investigated by means of energy dispersive spectrometry, conducted both during SEM and STEM investigations. Selected area diffraction was used to identify the phases in the alloy. Microstructure of the alloy in the as-cast condition consists of Al-Si eutectic and intermetallic phases in the interdendritic regions. These are: Mg₂Si, α-AlFeMnS, β-AlFeSi and π-AlFeSiMg phases. What is more, number of fine precipitates were found within the α-Al dendrites. Only the occurrence of U1 (MgAl₂Si₂) phase has been confirmed.

• Periodical: Solid State Phenomena (Volume 229)
• Pages: 3-10
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.229.3
• Online since: April 2015
• Authors: Bartłomiej Dybowski*, Bogusława Adamczyk-Cieślak, Kinga Rodak, Iwona Bednarczyk, Andrzej Kiełbus, Jaroslaw Mizera
• Keywords: AlSi7Mg Alloy, As-Cast Condition, Microstructure, Phase Identification, TEM

References

[1] Y.L. Liu, S.B. Kang, H.W. Kim, The complex microstructures in an as-cast Al–Mg–Si alloy, Materials Letters 41 (1999) 267–272.

DOI: 10.1016/s0167-577x(99)00141-x

[2] S. Nafisia, R. Ghomashchib, H. Valia, Eutectic nucleation in hypoeutectic Al-Si alloys, Materials Characterization 59 (2008) 1466-1473.

DOI: 10.1016/j.matchar.2008.01.014

[3] M.M. Makhlouf, H.V. Guthy, The aluminum–silicon eutectic reaction: mechanisms and crystallography, Journal of Light Metals 1 (2001) 199-218.

DOI: 10.1016/s1471-5317(02)00003-2

[4] G. Rana, J.E. Zhoua, Q.G. Wang, Precipitates and tensile fracture mechanism in a sand cast A356 aluminum alloy, Journal of Materials Processing Technology 207 (2008) 46-52.

DOI: 10.1016/j.jmatprotec.2007.12.050

[5] X. Cao, J. Campbell, Morphology of β-Al5FeSi Phase in Al-Si Cast Alloys, Materials Transactions 47 (2006) 1303-1312.

DOI: 10.2320/matertrans.47.1303

[6] J. A. Taylor, The effect of iron in Al-Si casting alloys. In: J Couzner et al, Casting Concepts. 35th Australian Foundry Institute National Conference, Adelaide, South Australia, (148-157). 31 Oct - 3 Nov (2004).

[7] N.C.W. Kuijpers, F.J. Vermolen, C. Vuik, P.T.G. Koenis, K.E. Nilsen, S. van der Zwaag, The dependence of the β-AlFeSi to α-Al(FeMn)Si transformation kinetics in Al–Mg–Si alloys on the alloying elements, Materials Science and Engineering A 394 (2005).

DOI: 10.1016/j.msea.2004.09.073

[8] C. Romming, V. Hannsen, J. Gjonnes, Crystal structure of β-Al4. 5FeSi, Acta Crystallogarphica B50 (1994) 307-312.

[9] V. Hansen, B. Hauback, M. Sundberg, C. Rùmming, J. Gjùnnes, β-Al4. 5FeSi: A Combined Synchrotron Powder Diffraction, Electron Diffraction, High-Resolution Electron Microscopy and Single-Crystal X-ray Diffraction Study of a Faulted Structure, Acta Crystallograhpica B54 (1998).

DOI: 10.1107/s0108768197017047

[10] C.H. Caceres, C.J. Davidson, J.R. Griffiths, Q.G. Wang, The Effect of Mg on the Microstructure and Mechanical Behavior of Al-Si-Mg Casting Alloys, Metallurgical and Materials Transactions A, 30A (1999) 2611-2618.

DOI: 10.1007/s11661-999-0301-8

[11] H. You Kim, T. Young Park, S. Won Han, H. Mo Lee, Effects of Mn on the crystal structure of α-Al(Mn, Fe)Si particles in A356 alloys, Journal of Crystal Growth 291 (2006) 207–211.

DOI: 10.1016/j.jcrysgro.2006.02.006

[12] C. Ravi, C. Wolverton, First-principles study of crystal structure and stability of Al–Mg–Si–(Cu) precipitates, Acta Materialia 52 (2004) 4213–4227.

DOI: 10.1016/j.actamat.2004.05.037

[13] K. Matsuda, S. Tada, S. Ikeno, T. Sato, A. Kamio., Crystal system of rod-shaped precipitates in an Al-l. 0mass%Mg2Si-0. 4mass%Si alloy, Scripta Metallurgica et Materialia 32 (1995) 1175-1180.

DOI: 10.1016/0956-716x(95)00121-b

[14] K. Matsuda, S. Ikeno, T. Sato, A. Kamio, A metastable phase having the orthorhombic crystal lattice in an Al-l. 0mass% Mg2Si-0. 4mass% Si alloy, Scripta Materialia 34 (1996) 1797-1802.

DOI: 10.1016/1359-6462(96)00057-7

[15] S.J. Andersen, C.D. Marioara, A. Frøseth, R. Vissers, H.W. Zandbergen, Crystal structure of the orthorhombic U2-Al4Mg4Si4 precipitate in the Al–Mg–Si alloy system and its relation to the β' and β" phases, Materials Science and Engineering A 390 (2005).

DOI: 10.1016/j.msea.2004.09.019

[16] J. Andersen, C.D. Marioara, A. Frøseth, R. Vissers, H.W. Zandbergen, The structural relation between precipitates in Al–Mg–Si alloys, the Al-matrix and diamond silicon, with emphasis on the trigonal phase U1-MgAl2Si2, Materials Science and Engineering A 444 (2007).

DOI: 10.1016/j.msea.2006.08.084
