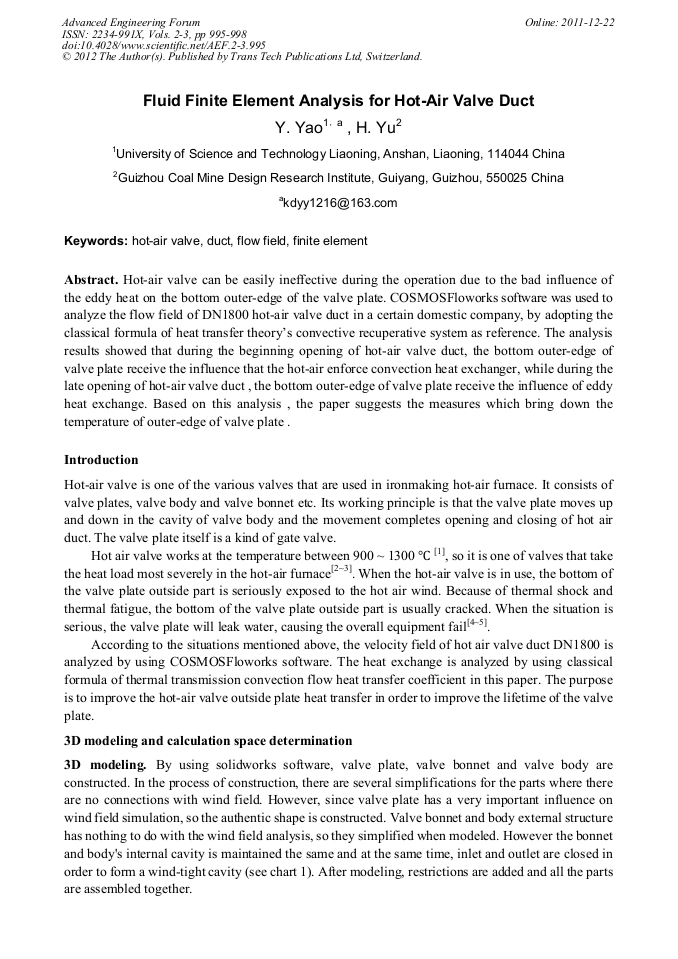

Fluid Finite Element Analysis for Hot-Air Valve Duct

Abstract:

Hot-air valve can be easily ineffective during the operation due to the bad influence of the eddy heat on the bottom outer-edge of the valve plate. COSMOSFloworks software was used to analyze the flow field of DN1800 hot-air valve duct in a certain domestic company, by adopting the classical formula of heat transfer theory’s convective recuperative system as reference. The analysis results showed that during the beginning opening of hot-air valve duct, the bottom outer-edge of valve plate receive the influence that the hot-air enforce convection heat exchanger, while during the late opening of hot-air valve duct , the bottom outer-edge of valve plate receive the influence of eddy heat exchange. Based on this analysis , the paper suggests the measures which bring down the temperature of outer-edge of valve plate .

• Periodical: Advanced Engineering Forum (Volumes 2-3)
• Pages: 995-998
• DOI: https://doi.org/10.4028/www.scientific.net/AEF.2-3.995
• Online since: December 2011
• Authors: Y. Yao, H. Yu
• Keywords: Duct, Finite Element, Flow Field, Hot-Air Valve

References

[1] Liu YuanYi etc, Laigang improve the practice, air valve life, 17 (2) iron making, 1998. （2）: 40~41.

[2] Ma Xuedong, Song Zhaofeng, Li lingling, Study of long life of hot air valve plate, Valve 2007. (4): 35~38.

[3] Lin Ruquan, Design and application of Furnace hot air valve modifications. Metallurgy Equipment, 2002. (6): 66~67.

[4] Zhao Li, Song Ming, Design and Study of long life hot air valve, Angang Technology, 2001. (5): 58~59.

[5] Qing Yonghong, Design issues of hot air valve, Metallurgy Management, 2006. (10): 62.

[6] Ren ZePei, Mei FeiMing, heat conduction, Beijing: China architecture &building press, 1993. p.290.

[7] Du Guangsheng, Engineering fluid mechanics, Chinese power press, 2006: 120 ~ 127.
