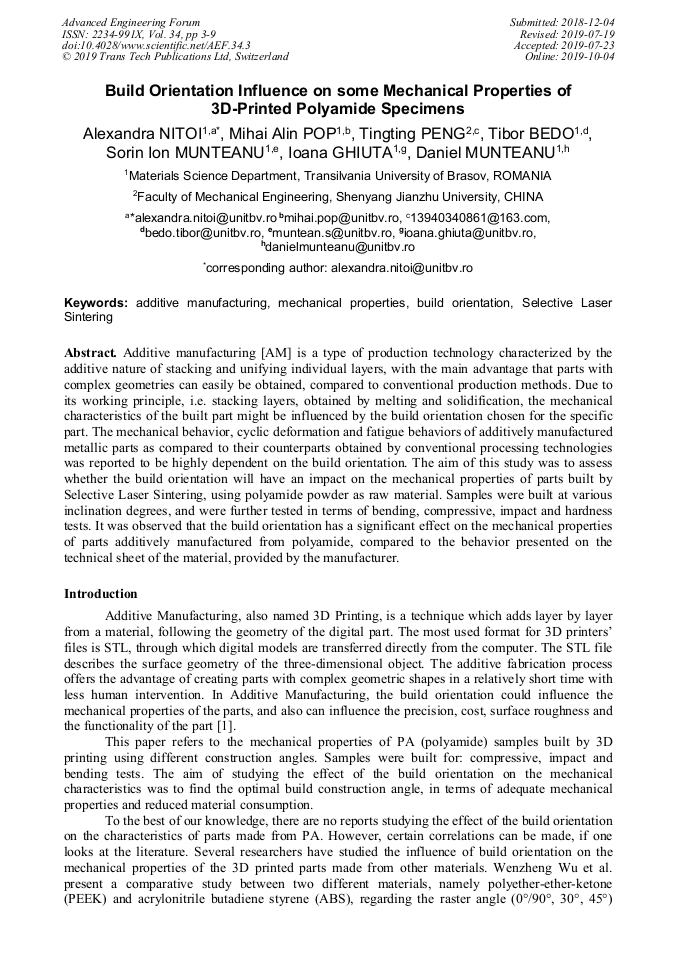

Build Orientation Influence on some Mechanical Properties of 3D-Printed Polyamide Specimens

Abstract:

Additive manufacturing [AM] is a type of production technology characterized by the additive nature of stacking and unifying individual layers, with the main advantage that parts with complex geometries can easily be obtained, compared to conventional production methods. Due to its working principle, i.e. stacking layers, obtained by melting and solidification, the mechanical characteristics of the built part might be influenced by the build orientation chosen for the specific part. The mechanical behavior, cyclic deformation and fatigue behaviors of additively manufactured metallic parts as compared to their counterparts obtained by conventional processing technologies was reported to be highly dependent on the build orientation. The aim of this study was to assess whether the build orientation will have an impact on the mechanical properties of parts built by Selective Laser Sintering, using polyamide powder as raw material. Samples were built at various inclination degrees, and were further tested in terms of bending, compressive, impact and hardness tests. It was observed that the build orientation has a significant effect on the mechanical properties of parts additively manufactured from polyamide, compared to the behavior presented on the technical sheet of the material, provided by the manufacturer. Keywords: additive manufacturing, mechanical properties, build orientation, Selective Laser Sintering

• Periodical: Advanced Engineering Forum (Volume 34)
• Pages: 3-9
• DOI: https://doi.org/10.4028/www.scientific.net/AEF.34.3
• Online since: October 2019
• Authors: Alexandra Nitoi*, Mihai Alin Pop, Ting Ting Peng, Tibor Bedő, Sorin Ion Munteanu, Ioana Ghiuta, Daniel Munteanu
• Keywords: Additive Manufacturing, Build Orientation, Mechanical Properties, Selective Laser Sintering

References

[1] J. Mueller, The effect of build orientation on the mechanical properties in inkjet 3D printing, University of Texas, August 2015, Pages 983-992.

[2] Wenzheng Wu et al, Influence of Layer Thickness and Raster Angle on the Mechanical Properties of 3D-Printed PEEK and a Comparative Mechanical Study between PEEK and ABS, Materials, Volume 8, (2015).

DOI: 10.3390/ma8095271

[3] J.M. Chacón et al, Additive manufacturing of PLA structures using fused deposition modelling: Effect of process parameters on mechanical properties and their optimal selection, Materials & Design, Volume 124, 15 June 2017, Pages 143-157.

DOI: 10.1016/j.matdes.2017.03.065

[4] Calvin Rans et al, Beyond the orthogonal: on the influence of build orientation on fatigue crack growth in SLM Ti6Al-4V, International Journal of Fatigue, Volume 116, November 2018, Pages 344-354.

DOI: 10.1016/j.ijfatigue.2018.06.038

[5] Kozior Tomasz, Problems of producing thin-walled and elastic elements by selective laser sintering, Solid State Phenomena, Volume 223, 2015, Pages 191-198.

DOI: 10.4028/www.scientific.net/ssp.223.191

[6] U. Ajoku, N. Saleh, N. Hopkinson, R. Hague, P. Erasenthiran, Investigating mechanical anisotropy and end-of-vector effect in laser-sintered nylon parts, Proc. Inst. Mech. Eng. Part B: J. Eng. Manuf., Volume 220, 2006, Pages 1077–1086.

DOI: 10.1243/09544054jem537

[7] Dizon, J. R. C., Espera, A. H., Chen, Q., & Advincula, R. C, Mechanical characterization of 3D-printed polymers, Additive Manufacturing, Volume 20, 2018, Pages 44–67.

DOI: 10.1016/j.addma.2017.12.002
