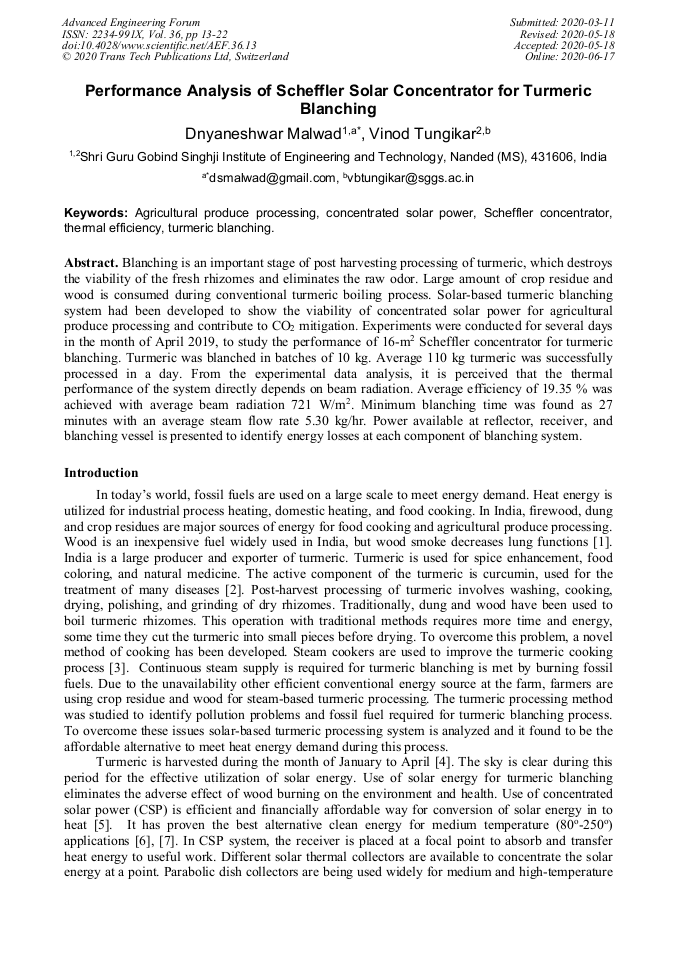

Performance Analysis of Scheffler Solar Concentrator for Turmeric Blanching

Abstract:

Blanching is an important stage of post harvesting processing of turmeric, which destroys the viability of the fresh rhizomes and eliminates the raw odor. Large amount of crop residue and wood is consumed during conventional turmeric boiling process. Solar-based turmeric blanching system had been developed to show the viability of concentrated solar power for agricultural produce processing and contribute to CO₂ mitigation. Experiments were conducted for several days in the month of April 2019, to study the performance of 16-m² Scheffler concentrator for turmeric blanching. Turmeric was blanched in batches of 10 kg. Average 110 kg turmeric was successfully processed in a day. From the experimental data analysis, it is perceived that the thermal performance of the system directly depends on beam radiation. Average efficiency of 19.35 % was achieved with average beam radiation 721 W/m². Minimum blanching time was found as 27 minutes with an average steam flow rate 5.30 kg/hr. Power available at reflector, receiver, and blanching vessel is presented to identify energy losses at each component of blanching system.

• Periodical: Advanced Engineering Forum (Volume 36)
• Pages: 13-22
• DOI: https://doi.org/10.4028/www.scientific.net/AEF.36.13
• Online since: June 2020
• Authors: Dnyaneshwar Malwad*, Vinod B. Tungikar
• Keywords: Agricultural Produce Processing, Concentrated Solar Power, Scheffler Concentrator, Thermal Efficiency, Turmeric Blanching

References

[1] R. Rabha, S. Ghosh, and P. K. Padhy, Effects of biomass burning on pulmonary functions in tribal women in northeastern India, Women Heal., 59 (2019)229–239.

DOI: 10.1080/03630242.2018.1452834

[2] B. Kocaadam and N. Şanlier, Curcumin, an active component of turmeric (Curcuma longa), and its effects on health, Crit. Rev. Food Sci. Nutr., vol. 57 (2017) 2889–2895.

DOI: 10.1080/10408398.2015.1077195

[3] G. U. Shinde, K. J. Kamble, M. G. Harkari, and G. R. More, Process Optimization in Turmeric Heat Treatment by Design and Fabrication of Blancher, Int. Conf. Environ. Agric. Eng. , vol. 15 (2011) p.36–41.

[4] S. Balasubramanian, P. Roselin, K. K. Singh, J. Zachariah, and S. N. Saxena, Postharvest processing and benefits of black pepper, coriander, cinnamon, fenugreek, and turmeric spices, Crit. Rev. Food Sci. Nutr., 56 (2016)1585–1607.

DOI: 10.1080/10408398.2012.759901

[5] N. R. Avezova, A. E. Khaitmukhamedov, A. Y. Usmanov, and B. B. Boliyev, Solar thermal power plants in the world: The experience of development and operation, Appl. Sol. Energy (English Transl. Geliotekhnika), 53 (2017) 72–77.

DOI: 10.3103/s0003701x17010030

[6] Y. M. Lytvynenko, V. P. Zalutsky, O. D. Kostenko, N. S. Zyiatkevich, and A. O. Perekos, Surface coatings obtaining by self-propagating high-temperature synthesis using concentrated solar irradiation, Appl. Sol. Energy (English Transl. Geliotekhnika), 51 (2015) 133–135.

DOI: 10.3103/s0003701x15020073

[7] T. P. Salikhov, V. V. Kan, E. M. Urazaeva, T. V. Savatyugina, G. M. Arushanov, and S. N. Kan, Use of concentrated solar radiation to obtain porous ceramics with NZP-structure in Na-Zr-Si-P-O system,, Appl. Sol. Energy (English Transl. Geliotekhnika), 45 (2009) 287–291.

DOI: 10.3103/s0003701x09040161

[8] A. Kumar, O. Prakash, and A. K. Kaviti, A comprehensive review of Scheffler solar collector, Renew. Sustain. Energy Rev., 77 (2017) 890–898.

DOI: 10.1016/j.rser.2017.03.044

[9] S. Lokeswaran and M. Eswaramoorthy, Experimental studies on solar parabolic dish cooker with porous medium 1, Appl. Sol. Energy (English Transl. Geliotekhnika), 48, (2012) 169–174.

DOI: 10.3103/s0003701x12030097

[10] S. Kumar, V. Yadav, U. Sahoo, and S. K. Singh, Experimental investigation of 16 square meter Scheffler concentrator system and its performance assessments for various regions of India, Therm. Sci. Eng. Prog., 10 (2019) 103–111.

DOI: 10.1016/j.tsep.2019.01.006

[11] A. G. Mohod, Y. P. Khandetod, and S. Sengar, Eco-friendly utilization of parabolic concentrating solar cooker for extraction of cashew nut shell oil and household cooking, Int. J. Sustain. Energy, 29 (2010) 125–132.

DOI: 10.1080/14786460903497383

[12] R. J. Patil, G. K. Awari, and M. P. Singh, Experimental analysis of scheffler reflector water heater, Therm. Sci., 15 (2011) 599–604.

DOI: 10.2298/tsci100225058p

[13] M. Eswaramoorthy and S. Shanmugam, The thermal performance of a low cost solar parabolic dish collector for process heat, Energy Sources, Part A Recover. Util. Environ. Eff., 34, (2012) 1731–1736.

DOI: 10.1080/15567036.2010.490825

[14] A. A. Sagade, Comparative experimental analysis of the effect of convective heat losses on the performance of parabolic dish water heater, Int. J. Sustain. Eng., 6 (2013) 258–266.

DOI: 10.1080/19397038.2012.691566

[15] M. Aramesh et al., A review of recent advances in solar cooking technology, Renew. Energy, 140 (2019) 419–435.

[16] H. Panchal, R. Patel, and R. Sathyamurthy, Investigation and performance analysis of solar milk pasteurisation system, Int. J. Ambient Energy, (2019) 1–24.

DOI: 10.1080/01430750.2018.1557552

[17] R. Silva, F. J. Cabrera, and M. Pérez-García, Process heat generation with parabolic trough collectors for a vegetables preservation industry in Southern Spain, Energy Procedia, vol. 48 (2014) 1210–1216.

DOI: 10.1016/j.egypro.2014.02.137

[18] A. Munir, O. Hensel, W. Scheffler, H. Hoedt, W. Amjad, and A. Ghafoor, Design, development and experimental results of a solar distillery for the essential oils extraction from medicinal and aromatic plants, Sol. Energy, 108 (2014) 548–559.

DOI: 10.1016/j.solener.2014.07.028

[19] N. Mbodji and A. Hajji, Performance Testing of a Parabolic Solar Concentrator for Solar Cooking, J. Sol. Energy Eng. Trans. ASME, 138 (2016).

DOI: 10.1115/1.4033501

[20] I. Ayub, A. Munir, A. Ghafoor, W. Amjad, and M. S. Nasir, Solar Thermal Application for Decentralized Food Baking Using Scheffler Reflector Technology, J. Sol. Energy Eng., 140, (2018).

DOI: 10.1115/1.4040206

[21] A. Kumar, S. K. Shukla, and A. Kumar, Heat loss analysis: An approach toward the revival of parabolic dish type solar cooker, Int. J. Green Energy, vol. 15 (2018) 96–105.

DOI: 10.1080/15435075.2018.1423978

[22] S. Srivastava and A. Yadav, Extraction of water particles from atmospheric air through a Scheffler reflector using different solid desiccants, Int. J. Ambient Energy, p. https://doi.org/10.1080/01430750.2018.1517667, (2018).

DOI: 10.1080/01430750.2018.1517667

[23] W. Farzana, T. Pandiarajan, and S. Ganapathy, Development of mobile boiling system for turmeric (Curcuma longa), Innov. Food Sci. Emerg. Technol., 47 (2018) 428–438.

DOI: 10.1016/j.ifset.2018.04.014

[24] A. Munir, O. Hensel, and W. Scheffler, Design principle and calculations of a Scheffler fixed focus concentrator for medium temperature applications, Sol. Energy,. 84 (2010) 1490–1502.

DOI: 10.1016/j.solener.2010.05.011

[25] I. M. Michaelides, W. C. Lee, D. R. Wilson, and P. P. Votsis, Computer simulation of the performance of a thermosyphon solar water-heater, Appl. Energy, 41 (1992) 149–163.

DOI: 10.1016/0306-2619(92)90042-a

[26] M. Cheralathan, M. Sornanathan, and V. Thirunavukkarasu, An experimental study on energy and exergy performance of a cavity receiver for solar parabolic dish concentrator, Int. J. Exergy, 23 (2017)129.

DOI: 10.1504/ijex.2017.10006100

[27] J. A. Duffie and W. A. Beckman, Solar Engineering of Thermal Processes, Fourth edi. Hoboken, New Jersey: John Wiley & Sons, (2013).

[28] G. Jeevarathinam and T. Pandiarajan, Thermal Properties of Turmeric Rhizomes, Adv. Life Sci., 5 (2016) 5167–5170.

[29] R. J. Moffat, Describing the uncertainties in experimental results,, Exp. Therm. Fluid Sci., (1988) 3–17.

[30] A. Prathapan, M. Lukhman, C. Arumughan, A. Sundaresan, and K. G. Raghu, Effect of heat treatment on curcuminoid, colour value and total polyphenols of fresh turmeric rhizome, Int. J. Food Sci. Technol., 44 (2009) 1438–1444.

DOI: 10.1111/j.1365-2621.2009.01976.x
