The Assessment and Treatment of Dredged Sediments and Limestone Tuff Using Waste Ceramic with Low-Cement

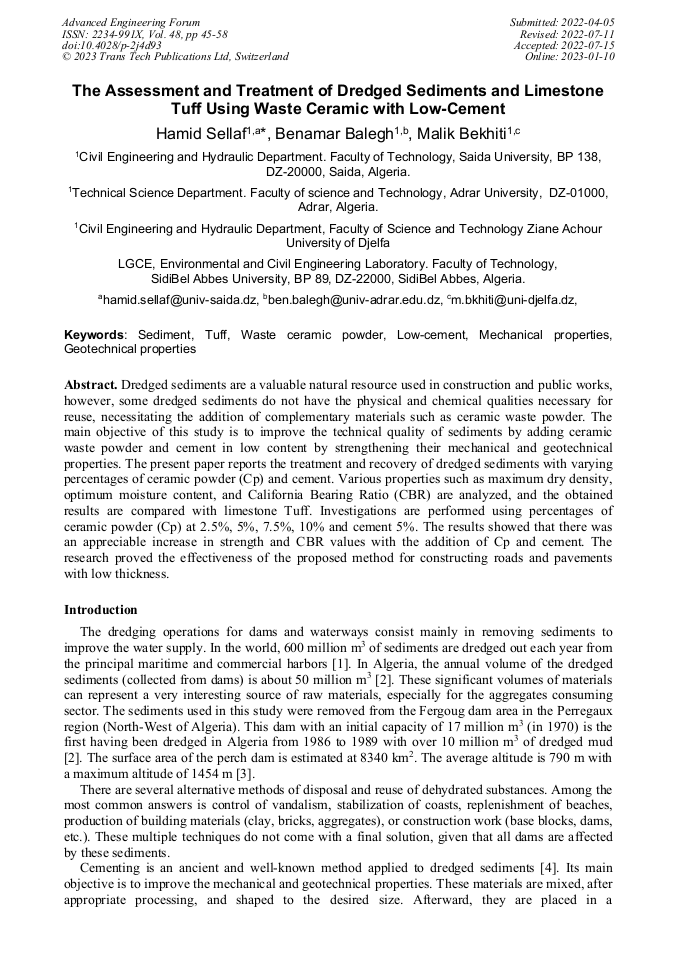

Article Preview

Abstract:

Dredged sediments are a valuable natural resource used in construction and public works, however some dredged sediments do not have the physical and chemical qualities necessary for reuse, necessitating the addition of complementary materials such as ceramic waste powder. The main objective of this study is to improve the technical quality of sediments by adding ceramic waste powder and cement in low content by strengthening its mechanical and geotechnical properties. The present paper reports the treatment and recovery of dredged sediments with varying percentages of ceramic powder (Cp) and cement. Various properties such as maximum dry density, optimum moisture content, and California Bearing Ratio (CBR) are analyzed, the obtained results are compared with limestone Tuff. Investigations are performed using percentages of ceramic powder (Cp) at 2.5%, 5%, 7.5%, 10% and cement 5%. The results showed that there was an appreciable increase in strength and CBR values by the addition of Cp and cement. The research proved the effectiveness of the proposed method for constructing roads and pavements with low thickness.

You might also be interested in these eBooks

Advanced Engineering Forum Vol. 48

Info:

Periodical:

Advanced Engineering Forum (Volume 48)

Pages:

45-58

DOI:

https://doi.org/10.4028/p-2j4d93

Citation:

Cite this paper

Online since:

January 2023

Authors:

Hamid Sellaf, Benamar Balegh*, Malik Bkhiti

Keywords:

Cement, Ceramic Powder, Geotechnical Properties, Mechanical Properties, Sediment, Tuff

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2023 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] World Commission on Dam, Dams and development. A New Framework for Decision-Making, Earth scan Publications Ltd, London, 2000, p.356.

[2] Z. Labiod-alloui, H. Trouzine H.M.S. Ghembaza, T. Nouioua, Y. Sebaibi, Experimental investigation of mixtures of bentonite and dredged sediments from Chorfa dam in Algeria, Turk. J. Earth Sci. 23 (2014) 330-338.

DOI: 10.3906/yer-1302-13

[3] A. Semcha, Valorisation des sédiments de dragage : Applications dans le BTP, cas du barrage de Fergoug. Thèse 175 p. Université de Reims Champagne-Ardenne, France, (2006).

DOI: 10.5150/cmcm.2015.032

[4] A. Gupta, V.K. Arora, S. Biswas, Contaminated dredged soil stabilization using cement and bottom ash for use as highway subgrade fill, Int. J. Geo-Eng. 8 (2017). https://doi.org/10.1186/s40703-017-0057-8.

DOI: 10.1186/s40703-017-0057-8

[5] Y. Abadou, R. Mitiche-Kettab, A. Ghrieb, Ceramic waste influence on dune sand mortar performance, Constr Build Mater. 125 (2016) 703–713.

DOI: 10.1016/j.conbuildmat.2016.08.083

[6] Y. Shen, J. Yin, D. Zhu, D. Kumah, W. Guo, A. Hudu, Performance of a deep foundation pit supported by suspended piles in soil and rock strata: a case study, Arab. J. Geosci. 14 ( 2021) 22-11.

DOI: 10.1007/s12517-021-08606-x

[7] A.J. Choobbasti, M.A. Samakoosh, S.S. Kutanaei, Mechanical properties soil stabilized with nano calcium carbonate and reinforced with carpet waste fibers, Constr Build Mater. 211 ( 2019) 1094-1104.

DOI: 10.1016/j.conbuildmat.2019.03.306

[8] H. Rasouli, B. Fatahi, Liquefaction and post-liquefaction resistance of sand reinforced with recycled geofibre, Geotext. Geomembr. 50 (2022) 69-81.

DOI: 10.1016/j.geotexmem.2021.09.002

[9] S. Akbulut, S. Arasan, E. Kalkan, Modification of clayey soils using scrap tire rubber and synthetic fibres, Appl. Clay Sci. 38( 2007) 23–32.

DOI: 10.1016/j.clay.2007.02.001

[10] B. Balegh, H. Sellaf, A. Mostefa, Effect of ceramic waste on mechanical and geotechnical properties of tuff treated by cement, Case Stud. Constr. Mater. 13 (2020) e00368.

DOI: 10.1016/j.cscm.2020.e00368

[11] M.M. Tsai, W. Qiao, J.K.H. Tsoi, A.D. Bona, J.P. Matinlinna, Effect of cigarette smoking on the bond strength between resin cement and dental CAD/CAM ceramics, J. Adhes. Sci. Technol. 3 (2017) )2323-2334.

DOI: 10.1080/01694243.2017.1299973

[12] J. DeBresser, J. Urai, D. Olgaard, Effect of water on the strength and microstructure of Carrara marble axially compressed at high temperature, J. Struct. Geol. 27 (2005) 265-281.

DOI: 10.1016/j.jsg.2004.10.002

[13] Z. Sun, H. Cui, H. An, D. Tao, Y. Xu, J. Zhai, Synthesis and thermal behavior of geopolymer-type material from waste ceramic, Constr Build Mater. 49(2013) 281-287.

DOI: 10.1016/j.conbuildmat.2013.08.063

[14] V. Fonti, A. Dell'Anno, F. Beolchini, Influence of biogeochemical interactions on metal bioleaching performance in contaminated marine sediment, Water Res. 47 (2013) 5139-5152.

DOI: 10.1016/j.watres.2013.05.052

[15] A.F. Al-Baidhani, A.J. Al-Taie, Recycled Crushed Ceramic Rubble for Improving Highly Expansive Soil, Transp. Infrastruct. Geotechnol. 7 (2020) 426–444.

DOI: 10.1007/s40515-020-00120-z

[16] I. Abidi, L. Benamara, A. Alberto, S. Correia, M.I.M. Pinto, P.P. Cunha, Characterization of dredged sediments of Bouhanifia dam: potential use as a raw material, Arab. J. Geosci. 14 (2021) 2631.

DOI: 10.1007/s12517-021-08742-4

[17] A.F. Cabalar, D.I. Hassan, M.D. Abdulnafaa, Use of waste ceramic tiles for road pavement subgrade, Road Mater. Pavement Des. 18 ( 2017) 882-896.

DOI: 10.1080/14680629.2016.1194884

[18] R.K. Sharma, Utilization of Fly Ash and Waste Ceramic in Improving Characteristics of Clayey Soil: A Laboratory Stud Journal, Geotech. Geol. Eng. 38 ( 2020) 5327–5340.

DOI: 10.1007/s10706-020-01366-7

[19] NF P 94-054, Sols: reconnaissances et essais, Détermination de la masse volumique des particules solides des sols, Méthode du pycnomètre à eau. Association Française de Normalisation, France. (in French).

DOI: 10.1007/978-3-662-39449-6_39

[20] NF P 94-051, Sols: Reconnaissance et Essais – Détermination des limites d'Atterberg – Limite de liquidité à la coupelle – limite de plasticité au rouleau. Association Française de Normalisation, France. (in French).

[21] NF P 94-057, Sols: reconnaissances et essais, Analyse granulométrique des sols, Méthode par sédimentation. Association Française de Normalisation, France. (in French).

[22] NF P 94-068, Sols : Reconnaissance et essais, Mesure de la capacité d'adsorption de bleu de méthylène d'un sol ou d'un matériau rocheux, Détermination de la valeur de bleu de méthylène d'un sol ou d'un matériau rocheux par l'essai à la tache. Association Française de Normalisation, France. (in French).

DOI: 10.1051/geotech/2007120083

[23] NF P 94-056, Sols: reconnaissances et essais, Analyse granulométrique, Méthode de tamisage à sec après lavage. Association Française de Normalisation, France. (in French).

[24] NF EN 1744, Essais visant à déterminer les propriétés chimiques des granulats. Association Française de Normalisation, France. (in French).

[25] A. Casagrande, Research on the Atterberg limits of soils. Public Roads, 13 (1932), 121–136.

[26] F.G. Bell, Engineering treatment of soils, E & FN Spon, Chapman and Hall, Boundary Row, London, UK, (1993)302.

[27] C.O. Okagbue, T.U.S. Onyeobi, Potential of marble dust to stabilize red tropical soils for road construction, Eng. Geol. 53 (1999) 371-380.

DOI: 10.1016/s0013-7952(99)00036-8

[28] P.V. Sivapullaiah, A. Sridharan, R.K.V. Bhaskar, Role of amount and type of clay in the lime stabilization of soils, Ground Improvement, 4 (2000)37–45.

DOI: 10.1680/grim.2000.4.1.37

[29] R.M. Schmitz, C. Schreoder, R. Charlier, Chemo-mechanical interactions in clay a correlation between clay mineralogy and Atterberg limits, Appl. Clay Sci. 26 (2004)351–358.

DOI: 10.1016/j.clay.2003.12.015

[30] H. Cetin, M. Fener, O. Gunaydin, Geotechnical properties of tire-cohesive clayey soil mixtures as fill material, Eng. Geol. 88 ( 2006)110-120.

DOI: 10.1016/j.enggeo.2006.09.002

[31] R.K. Sharma, Utilization of Fly Ash and Waste Ceramic in Improving Characteristics of Clayey Soil: A Laboratory Study, Geotech. Geol. Eng. 38 (2020) 5327–5340.

DOI: 10.1007/s10706-020-01366-7

[32] S. Deboucha, S.M. Aissa Mamoune, Y.S.H. Ziani, Effects of Ceramic Waste, Marble Dust, and Cement in Pavement Sub-base Layer, Geotech. Geol. Eng. 38 (2020) 3331–3340.

DOI: 10.1007/s10706-020-01211-x

[33] A.F. Cabalar, D. I. Hassan, M. D. Abdulnafaa, Use of waste ceramic tiles for road pavement subgrade, Road Mater. Pavement Des. 18(4) (2017) 882–896.

DOI: 10.1080/14680629.2016.1194884

[34] NF P 94-093, Sols: Sols: reconnaissance et essai - Détermination des caractéristiques de compactage d'un sol: essai Proctor normal, essai Proctor modifié. Association Française de Normalisation, France. (in French).

DOI: 10.1007/bf02481707

[35] R.V .Silva, J .de Brito, CQ. Lye, The role of glass waste in the production of ceramic-based products and other applications: A review, J. Clean. Prod. 167 ( 2017) 346–364.

DOI: 10.1016/j.jclepro.2017.08.185

[36] J.A. Chen, F.O. Idusuyi, Effect of waste ceramic dust (WCD) on index and engineering properties of shrink-swell soils, Int . J. Eng. Mod. Technol. 1(8) (2015) 52–62.

[37] A.K. Sabat, Stabilization of Expansive Soil Using Waste Ceramic Dust, J. Geotech. Eng. 39(2012) 3915-3926.

[38] NF P 94-078. Soils: investigation and tests. CBR after immersion. Immediate CBR. Immediate bearing ratio. Measurement on sample compacted in CBR mould, May 1997. (in French).

DOI: 10.1520/d1883-14

[39] O. RagabIbrahim, W. Alshehhi, H. Alhindasi, A. Alkalbani, F. Almahrezi, A.M. Masria, Correlation between CBR Values and Index Properties of Soils: A Case Study of Oman, Key Eng. Mater. 913( 2022) 205-214.

DOI: 10.4028/p-a5inw4

[40] A.O. Adeboje, W.K. Kupolati, E.R. Sadiku, J.M. Ndambuki, A.O. Owolabi, C. Kambole, Stabilisation of lateritic soil with pulverised ceramic waste for road construction, Int. J. Environ. Eng. 10(3) (2020) 221-242.

DOI: 10.1504/ijee.2020.10029579

[41] W .Wang, W .Chen, H .Liu, Recycling of waste red mud for production of ceramic floor tile with high strength and lightweight, J. Alloys Compd. 748 ( 2018)876–881.

DOI: 10.1016/j.jallcom.2018.03.220

[42] T.C. Cardoso, P. Ricardo de Matos , L. Py, M .Longhi, O.Cascudo, A.P. Kirchheim, Ternary cements produced with non-calcined clay, limestone, and Portland clinker, J. Build. Eng. 45 ( 2022) 103437.

DOI: 10.1016/j.jobe.2021.103437
