Failure Analysis of Rapid Crack Propagation on CO₂ Low Pressure Flash Column

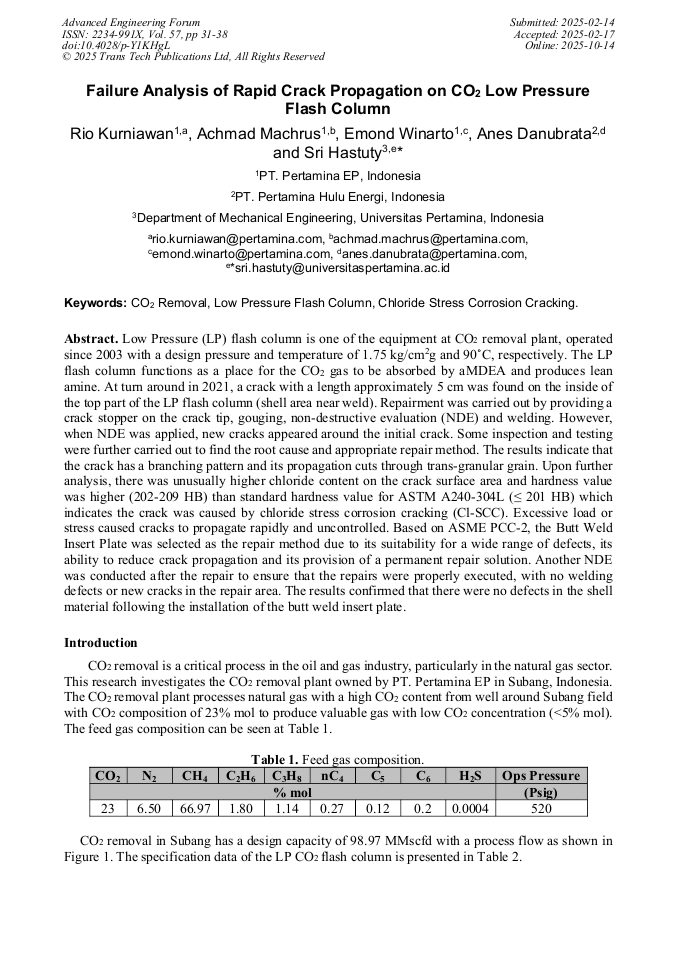

Abstract:

Low Pressure (LP) flash column is one of the equipment at CO₂ removal plant, operated since 2003 with a design pressure and temperature of 1.75 kg/cm²g and 90 °C, respectively. The LP flash column functions as a place for the CO₂ gas to be absorbed by aMDEA and produces lean amine. At turn around in 2021, a crack with a length approximately 5 cm was found on the inside of the top part of the LP flash column (shell area near weld). Repairment was carried out by providing a crack stopper on the crack tip, gouging, non-destructive evaluation (NDE) and welding. However, when NDE was applied, new cracks appeared around the initial crack. Some inspection and testing were further carried out to find the root cause and appropriate repair method. The results indicate that the crack has a branching pattern and its propagation cuts through trans-granular grain. Upon further analysis, there was unusually higher chloride content on the crack surface area and hardness value was higher (202-209 HB) than standard hardness value for ASTM A240-304L (≤ 201 HB) which indicates the crack was caused by chloride stress corrosion cracking (Cl-SCC). Excessive load or stress caused cracks to propagate rapidly and uncontrolled. Based on ASME PCC-2, the Butt Weld Insert Plate was selected as the repair method due to its suitability for a wide range of defects, its ability to reduce crack propagation and its provision of a permanent repair solution. Another NDE was conducted after the repair to ensure that the repairs were properly executed, with no welding defects or new cracks in the repair area. The results confirmed that there were no defects in the shell material following the installation of the butt weld insert plate.

• Periodical: Advanced Engineering Forum (Volume 57)
• Pages: 31-38
• DOI: https://doi.org/10.4028/p-Y1KHgL
• Online since: October 2025
• Authors: Rio Kurniawan, Achmad Machrus, Emond Winarto, Anes Danubrata, Sri Hastuty*
• Keywords: Chloride Stress Corrosion Cracking, CO₂ Removal, Low Pressure Flash Column

References

[1] Guma, T. N., Ozoekwe, N. C. W., & Odita, K. V. An Overview of Approaches and Techniques used in Failure Analysis of Engineering System. Arid Zone Journal of Engineering, Technology and Environment, 16(3), 587-604 (2020).

[2] Tait, R. B., Spencer, D. P., Fry, P. R., & Garrett, G. G. A Fracture Mechanics Based Failure Analysis of a Cold Service Pressure Vessel, (2019).

DOI: 10.31399/asm.fach.petrol.c9001137

[3] Insa-Iglesias, M., Jenkins, M. D., & Morison, G. 3D visual inspection system framework for structural condition monitoring and analysis. Automation in Construction, 128, 103755 (2021).

DOI: 10.1016/j.autcon.2021.103755

[4] Ghazal, A.A., Radwan, R.A., Al-Sondos, H. A., Al-Ryahi, G., Taani, A., & Allabadi, O. A qualitative assessment of the influence of gamma radiation and heating on aluminum using non-destructive examination. Radiation Physics and Chemistry, 213, 111210 (2023).

DOI: 10.1016/j.radphyschem.2023.111210

[5] Qin, W., & Szpunar, J.A. A general model for hydrogen trapping at the inclusion-matrix interface and its relation to crack initiation. Philosophical Magazine, 97(34), 3296-3316 (2017).

DOI: 10.1080/14786435.2017.1378451

[6] Patel, J. M., Wise, B. C., Bonnevie, E. D., & Mauck, R. L. A systematic review and guide to mechanical testing for articular cartilage tissue engineering. Tissue Engineering Part C: Methods, 25(10), 593-608 (2019).

DOI: 10.1089/ten.tec.2019.0116

[7] Yang, Z., & Cheng, X. A performance study of high-strength microbial mortar produced by Low Pressure grouting for the reinforcement of deteriorated masonry structures. Construction and Building Materials, 41, 505-515 (2013).

DOI: 10.1016/j.conbuildmat.2012.12.055

[8] ASTM A240/A240M-16 Standard Specification for Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General Applications.

DOI: 10.1520/a0240_a0240m-99b

[9] Moslehifard, E., Ghaffari, T., Abolghasemi, H., & Maleki Dizaj, S. Comparison of Conventional Pressure‐packed and Injection Molding Processing Methods for an Acrylic Resin Denture based on Microhardness, Surface Roughness, and Water Sorption. International Journal of Dentistry, (1), 7069507 (2022).

DOI: 10.1155/2022/7069507

[10] Carrizo, P. S. Application of Metallographic Techniques to Studies in Ancient Metals. Reverse Engineering of Ancient Metals, 93-122 (2021).

DOI: 10.1007/978-3-030-72842-7_6

[11] Smallman, R. E.; Ngan, A. H. W., Smallman, R. E.; Ngan, A. H. W. (eds.), "Chapter 9 - Plastic Deformation and Dislocation Behaviour", Modern Physical Metallurgy (Eighth Edition), Oxford: Butterworth-Heinemann (2014).

DOI: 10.1016/b978-0-08-098204-5.00009-2

[12] Huang, X., & Zhang, D. A high sensitivity and high linearity pressure sensor based on a peninsula-structured diaphragm for low-pressure ranges. Sensors and Actuators A: Physical, 216, 176-189 (2014).

DOI: 10.1016/j.sna.2014.05.031

[13] API RP 571 3rd Ed.: Damage Mechanisms Affecting Fixed Equipment in the Refining Industry, API Publishing Services (2020).

[14] ASME PCC-2-2022: Repair of Pressure Equipment and Piping, ASME International (2022).
