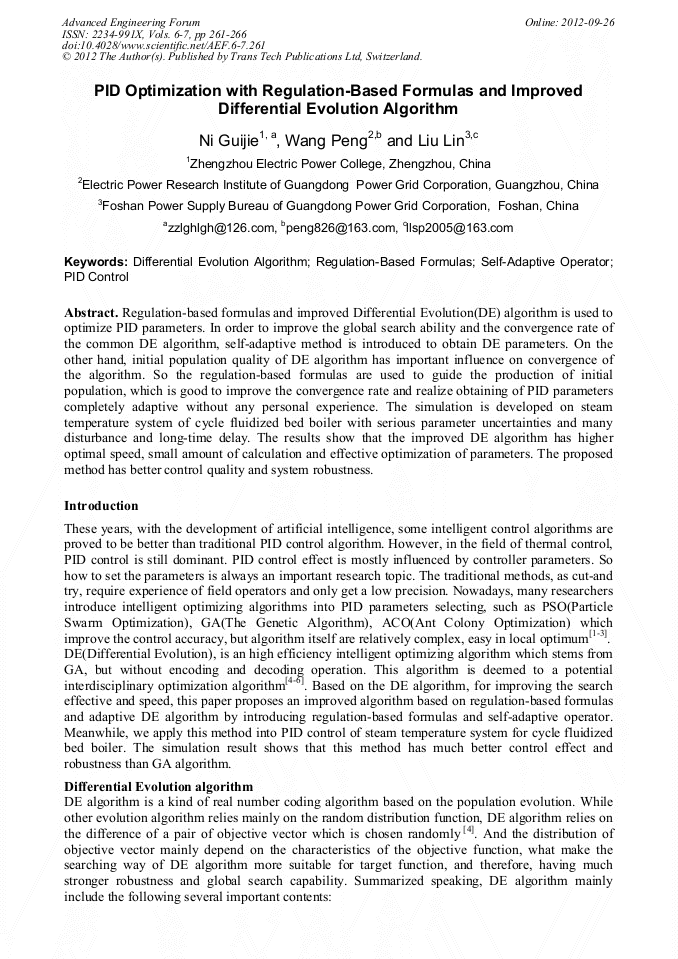

PID Optimization with Regulation-Based Formulas and Improved Differential Evolution Algorithm

Abstract:

Regulation-based formulas and improved Differential Evolution(DE) algorithm is used to optimize PID parameters. In order to improve the global search ability and the convergence rate of the common DE algorithm, self-adaptive method is introduced to obtain DE parameters. On the other hand, initial population quality of DE algorithm has important influence on convergence of the algorithm. So the regulation-based formulas are used to guide the production of initial population, which is good to improve the convergence rate and realize obtaining of PID parameters completely adaptive without any personal experience. The simulation is developed on steam temperature system of cycle fluidized bed boiler with serious parameter uncertainties and many disturbance and long-time delay. The results show that the improved DE algorithm has higher optimal speed, small amount of calculation and effective optimization of parameters. The proposed method has better control quality and system robustness.

• Periodical: Advanced Engineering Forum (Volumes 6-7)
• Pages: 261-266
• DOI: https://doi.org/10.4028/www.scientific.net/AEF.6-7.261
• Online since: September 2012
• Authors: Gui Jie Ni, Peng Wang, Lin Liu
• Keywords: Differential Evolution (DE) Algorithm, PID Control, Regulation-Based Formulas, Self-Adaptive Operator

References

[1] Qian Zhang, Ze Dong, Pu Han, etc, Optimization of Controllers in the Thermal System Using Initial Pheromone Distribution in Ant Colony Optimization, IEEE International Conference on Information Reuse and Integration, Las Vegas, 2008, pp.22-27.

DOI: 10.1109/iri.2008.4582999

[2] Li Meng, Shen Jiong, Simulating study of adaptive GA-Based PID parameter optimization for the control of superheated steam temperature, J. Proceedings of the CSEE, 2002, pp.145-149. (in Chinese).

[3] Li Jian-bo, Wang Dong-feng, Fu Ping, Han Pu, PID controller parameters optimization for the main steam temperature system based on improved particle swarm optimization, J. Journal of North China Electric Power University, 2005, pp.26-30.

[4] Storn R, Price K, Differential evolution-a simple and efficient heuristic for global optimization over continuous space, J．Global Optimization, 1997 , pp. 34l-359.

[5] Qing A Y, Dynamic differential evolution strategy and applications in electromagnetic inverse scan raring problems, J．IEEE Trans on Geosciences and Remote Sensing, 2006, pp. l16-125.

DOI: 10.1109/tgrs.2005.859347

[6] Lin Lian-lei, Jiang Shou-da, Liu Xiao-dong, Parameter selection for an SVM based on a differential evolution algorithm, J. Journal of Harbin Engineering University, 2009, pp.138-141.

[7] Zhang Bing-cai, Qin Si-juan, Qiao Shi-jun, Lu Zhi-gang, Reactive power optimization in power system based on modified differential evolution algorithm, J. Power System Protection and Control, 2010, pp.91-94.

[8] Jiang Li-qiang, Qiu Ying-feng, Liu Guang-bin, A modified differential evolution algorithm for linear system approximation, J. Electronics Optics & Control, 2008, pp.35-37.
