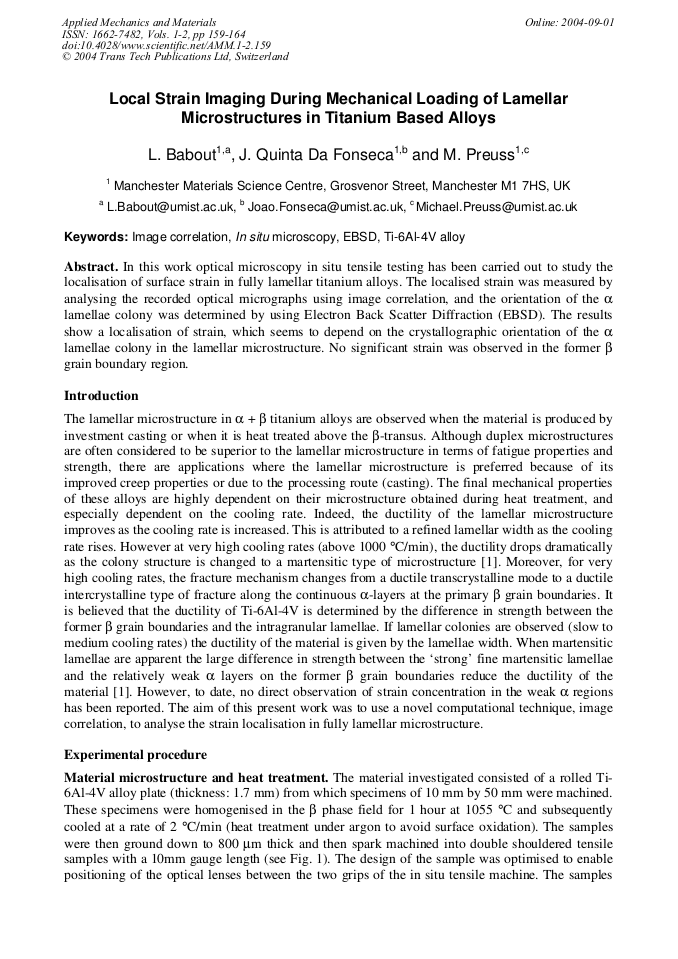

Local Strain Imaging during Mechanical Loading of Lamellar Microstructures in Titanium Based Alloys

Abstract:

In this work optical microscopy in situ tensile testing has been carried out to study the localisation of surface strain in fully lamellar titanium alloys. The localised strain was measured by analysing the recorded optical micrographs using image correlation, and the orientation of the a lamellae colony was determined by using Electron Back Scatter Diffraction (EBSD). The results show a localisation of strain, which seems to depend on the crystallographic orientation of the a lamellae colony in the lamellar microstructure. No significant strain was observed in the former b grain boundary region.
