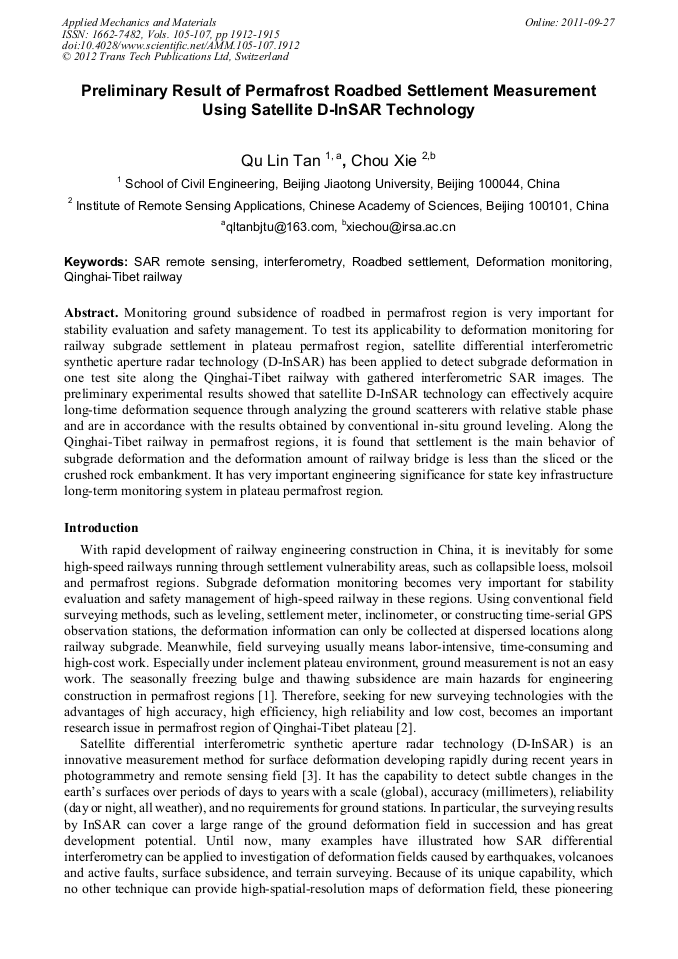

Preliminary Result of Permafrost Roadbed Settlement Measurement Using Satellite D-InSAR Technology

Abstract:

Monitoring ground subsidence of roadbed in permafrost region is very important for stability evaluation and safety management. To test its applicability to deformation monitoring for railway subgrade settlement in plateau permafrost region, satellite differential interferometric synthetic aperture radar technology (D-InSAR) has been applied to detect subgrade deformation in one test site along the Qinghai-Tibet railway with gathered interferometric SAR images. The preliminary experimental results showed that satellite D-InSAR technology can effectively acquire long-time deformation sequence through analyzing the ground scatterers with relative stable phase and are in accordance with the results obtained by conventional in-situ ground leveling. Along the Qinghai-Tibet railway in permafrost regions, it is found that settlement is the main behavior of subgrade deformation and the deformation amount of railway bridge is less than the sliced or the crushed rock embankment. It has very important engineering significance for state key infrastructure long-term monitoring system in plateau permafrost region.

• Periodical: Applied Mechanics and Materials (Volumes 105-107)
• Pages: 1912-1915
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.105-107.1912
• Online since: September 2011
• Authors: Qu Lin Tan, Chou Xie
• Keywords: Deformation Monitoring, Interferometry, Qinghai-Tibet Railway, Roadbed Settlement, SAR Remote Sensing

References

[1] L. X. Zhang: Regularity of ground temperature variation in Qinghai-Tibet Plateau permafrost region and its effect on subgrade stability, China railway science, Vol. 43 (2000) No. 1, p.37.

[2] Q. L. Tan, Q. C. Wei, S.L. Yang: Discussion on Monitoring Ground Subsidence of Permafrost Roadbed Using Satellite D-InSAR Technology, Journal of Railway Engineering Society, Vol. 27 (2010) No. 1, p.4.

[3] B. M. Kampes: Radar interferometry: Persistent Scatterer Technique (Springer, German 2006).

[4] Z. Li, X.W. Li and Y.Z. Liu: Detecting the displacement field of thaw settlement by means of SAR Interferometry, Journal of glaciology and geocryology, Vol. 4 (2004) No. 4, p.389.

[5] C. Xie, Z. Li and X. W. Li: A Permanent Scatterers Mehtod for Analysis of Deformation over Permafrost Regions of Qinghai-Tibet Plateau, Proc. IEEE International Geoscience & Remote Sensing Symposium (Boston, USA, July 6-11, 2008). Vol. 4, p.1624.

DOI: 10.1109/igarss.2008.4779906

[6] R. F. Hanssen: Radar interferometry: data interpretation and error analysis (Kluwer Academic Publishers, Dordrecht 2002).

[7] Q. L. Tan, Z. J. Liu and S. L. Yang: SAR differential interferometry technology and its application to regional deformation surveying: a case study, Journal of civil engineering and architecture, Vol. 2 (2008) No. 1, p.73.

[8] A. Ferretti, C. Prati and F. Rocca: Permanent Scatteres in SAR Interferometry. IEEE Trans. Geosci. Remote Sensing, Vol. 39 (200l) No. 1, p.8.

DOI: 10.1109/36.898661
