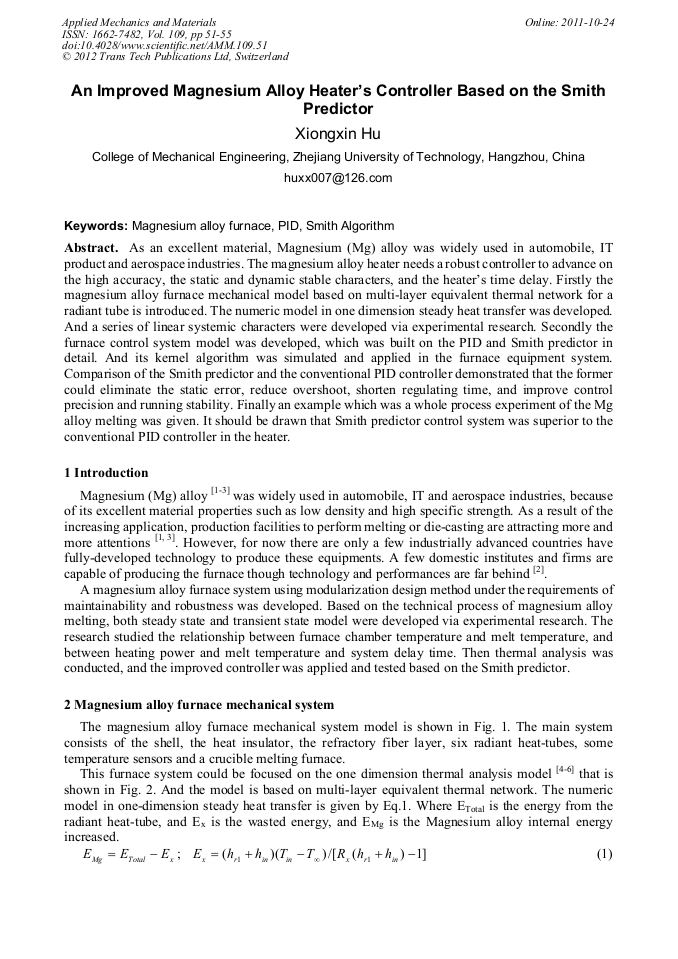

An Improved Magnesium Alloy Heater’s Controller Based on the Smith Predictor

Abstract:

As an excellent material, Magnesium (Mg) alloy was widely used in automobile, IT product and aerospace industries. The magnesium alloy heater needs a robust controller to advance on the high accuracy, the static and dynamic stable characters, and the heater’s time delay. Firstly the magnesium alloy furnace mechanical model based on multi-layer equivalent thermal network for a radiant tube is introduced. The numeric model in one dimension steady heat transfer was developed. And a series of linear systemic characters were developed via experimental research. Secondly the furnace control system model was developed, which was built on the PID and Smith predictor in detail. And its kernel algorithm was simulated and applied in the furnace equipment system. Comparison of the Smith predictor and the conventional PID controller demonstrated that the former could eliminate the static error, reduce overshoot, shorten regulating time, and improve control precision and running stability. Finally an example which was a whole process experiment of the Mg alloy melting was given. It should be drawn that Smith predictor control system was superior to the conventional PID controller in the heater.

• Periodical: Applied Mechanics and Materials (Volume 109)
• Pages: 51-55
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.109.51
• Online since: October 2011
• Authors: Xiong Xin Hu
• Keywords: Magnesium Alloy Furnace, PID, Smith Algorithm

References

[1] Elider D, Aghion E, Froes F H. Magnesium Science, Technology and Applications, Advanced Performance Materials, 1998; 5: 201-212.

[2] XU Hong-xing, LIU Chang-hai, Dai Ning, Research and Development of Magnesium Alloy, HEAT TREATMENT, 2006; 26(4): 17-20.

[3] Mordike B I, Ebert T. Magnesium: Properties-applications-potential, Materials Science and Engineering, 2001; 302(1): 37-45.

[4] P. Roura, J. Farjas, Analysis of the sensitivity and sample furnace thermal-lag of a differential thermal analyzer, Thermochimica, 2005; pp.115-122.

DOI: 10.1016/j.tca.2005.01.020

[5] Liu Zeng-xun, Lu Qing, Heat Transfer Analysis on Heat Load Limit of Cast Iron Stave, IRON&STEEL, 2008; 43(6): 8-10.

[6] Frank P. Incropera, David P. DeWitt, Theodore L. Bergman, Adrienne S. Lavine, Fundamental of Heat and Mass Transfer, Wiley, March. 2006(10).

[7] HU Chi-bing , TENG Zhou-bo , ZHANG Ji-you, Temperature control of draw texturing machine based on compensation to pure time, , Journal of Textile Research. 2005; 27(6): 71-74.

[8] HUANG Can, GUI Wei-hua, YANG Chun-hua, XIE Yong-fang. Design of decoupling Smith control for multivariable system with time delays, Journal of Central South University of Technology, 2011; 18(2): 473-478.

DOI: 10.1007/s11771-011-0720-8

[9] AN Lian-xiang, MA Hua-min, LIU Yong-gang, LIU Xin-yan. A 2th Order Time Delay System Based on Improved Fuzzy Smith Predictor , Computer Simulation, 2011; 28(1): 198–200, 233.

[10] Xiong HU, Tinghong Peng, Baisong Pan, etc. Temperature control system of Magnesium alloy furnace based on the compensation of pure time delay, Machinery Design & Manufacture, 2011; 3: 41-43.
